• Chillers • R-407C • EUWAC-FZW
1
13
• Applied Systems • Chillers
26
13 Hydraulic performance
13 - 2 Water pressure drop curve condenser
3TW55078-1

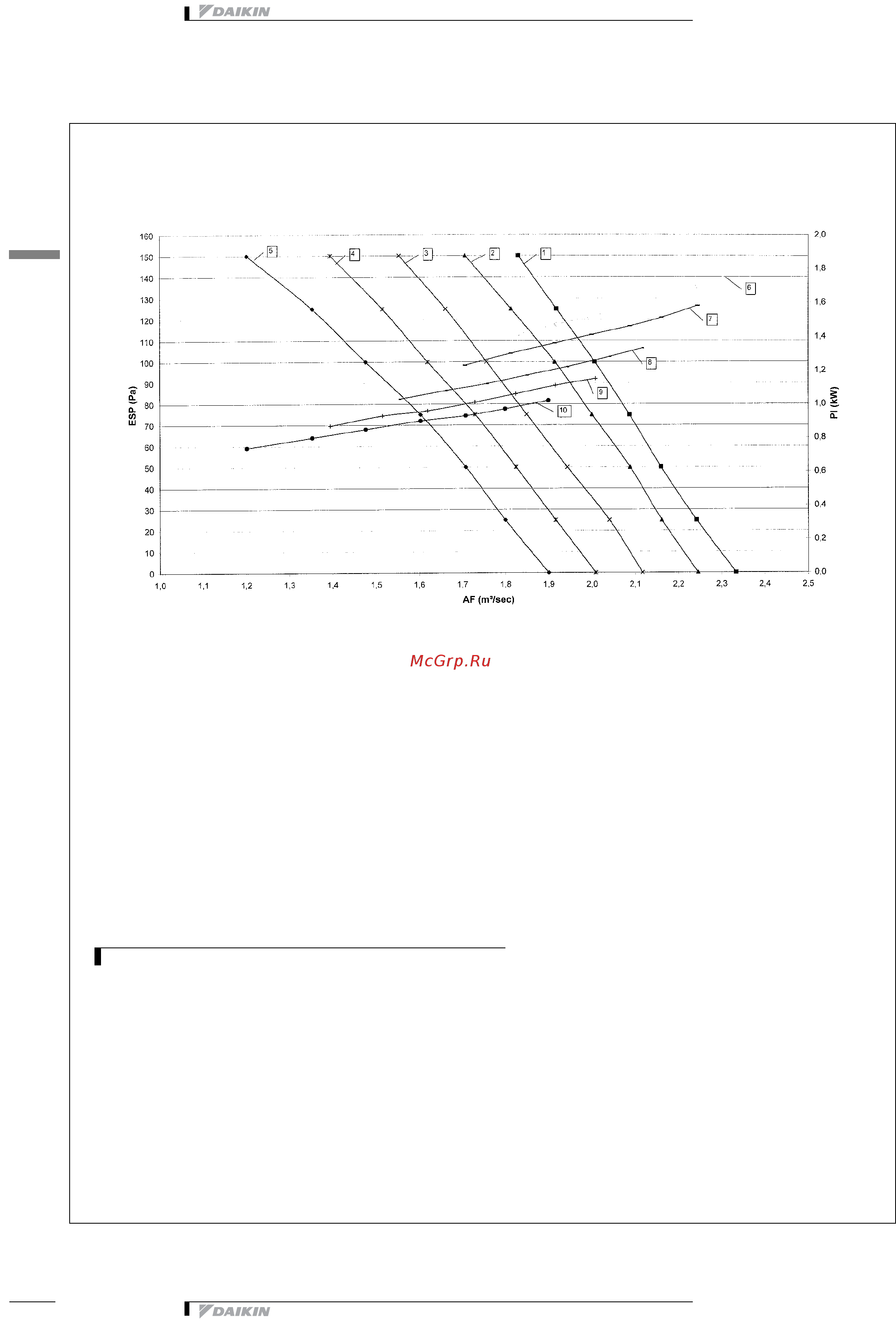

ESP/PI - AF of EUWAC10FZW
1. ESP with pulley closed
2. EPS with pulley 1 turn open
3. ESP with pulley 2 turns open
4. ESP with pulley 3 turns open
5. ESP with pulley 4 turns open
6. PI with pulley closed
7. PI with pulley 1 turn open
8. PI with pulley 2 turns open
9. PI with pulley 3 turns open
10. PI with pulley 4 turns open
NOTES
1 ESP = External static pressure
PI = power input of the fans
AF = airflow of the fans
2 Values applicable for no headpressure control working only.
3 Factory setting is ’’pulley closed’’.
