• Applied Systems • Chillers
23
• Chillers • R-407C • EUWAC-FZW
13 Hydraulic performance

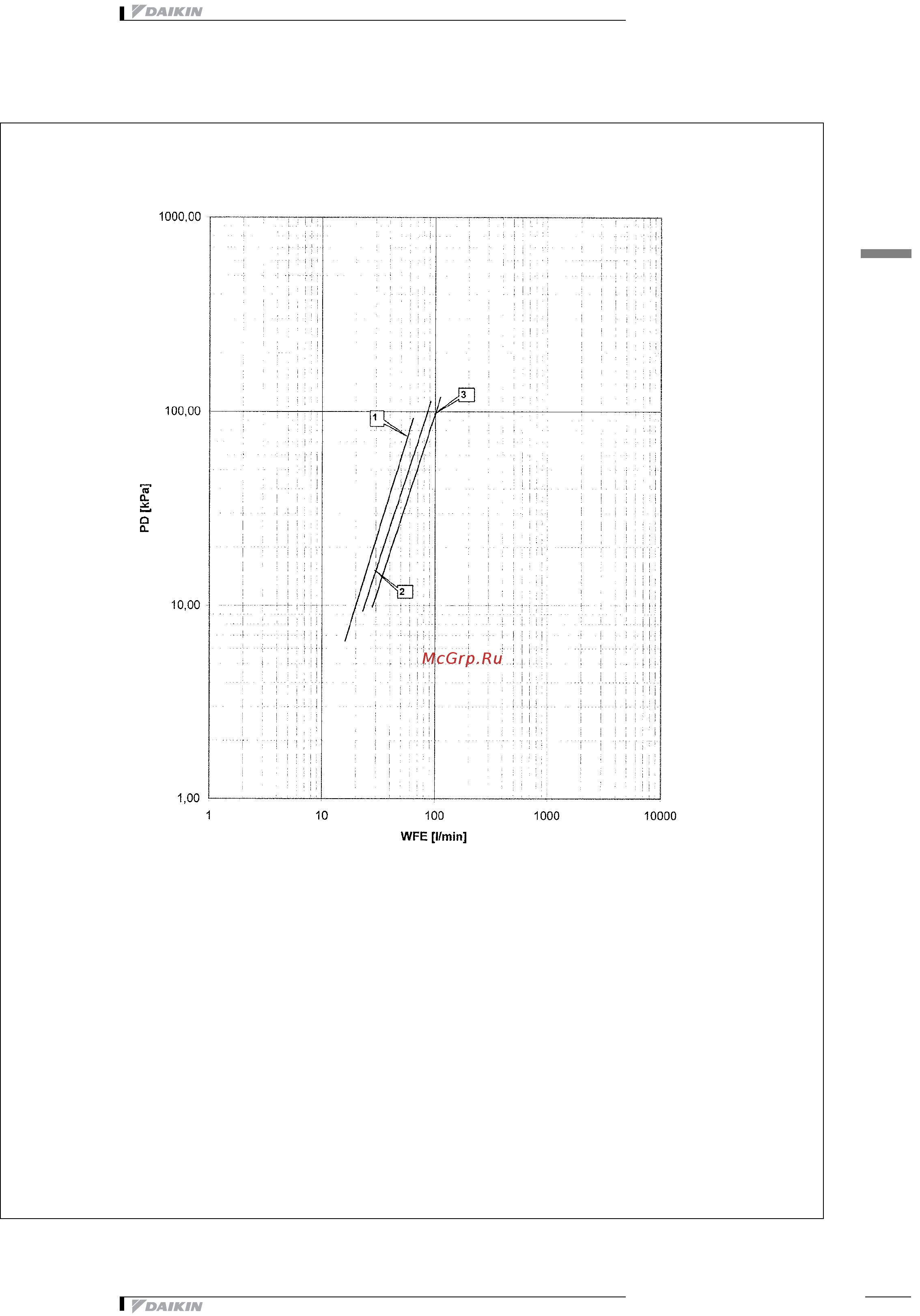

13 - 1 Water pressure drop curve evaporator
4TW55059-2A
PD : Water pressure drop through the unit
WF : Evaporator waterflow rate
h
1
EUWAC5FZW
h
2
EUWAC8FZW
h
3
EUWAC10FZW
Warning: Selecting a flow outside the curves can cause damage
to or malfunction of the unit. See also minimum and maximum
allowed water flowrate in the technical specifications.
