ESIE05-07 Functional Control for a Standalone Unit

Part 2 – Functional Description 2–59

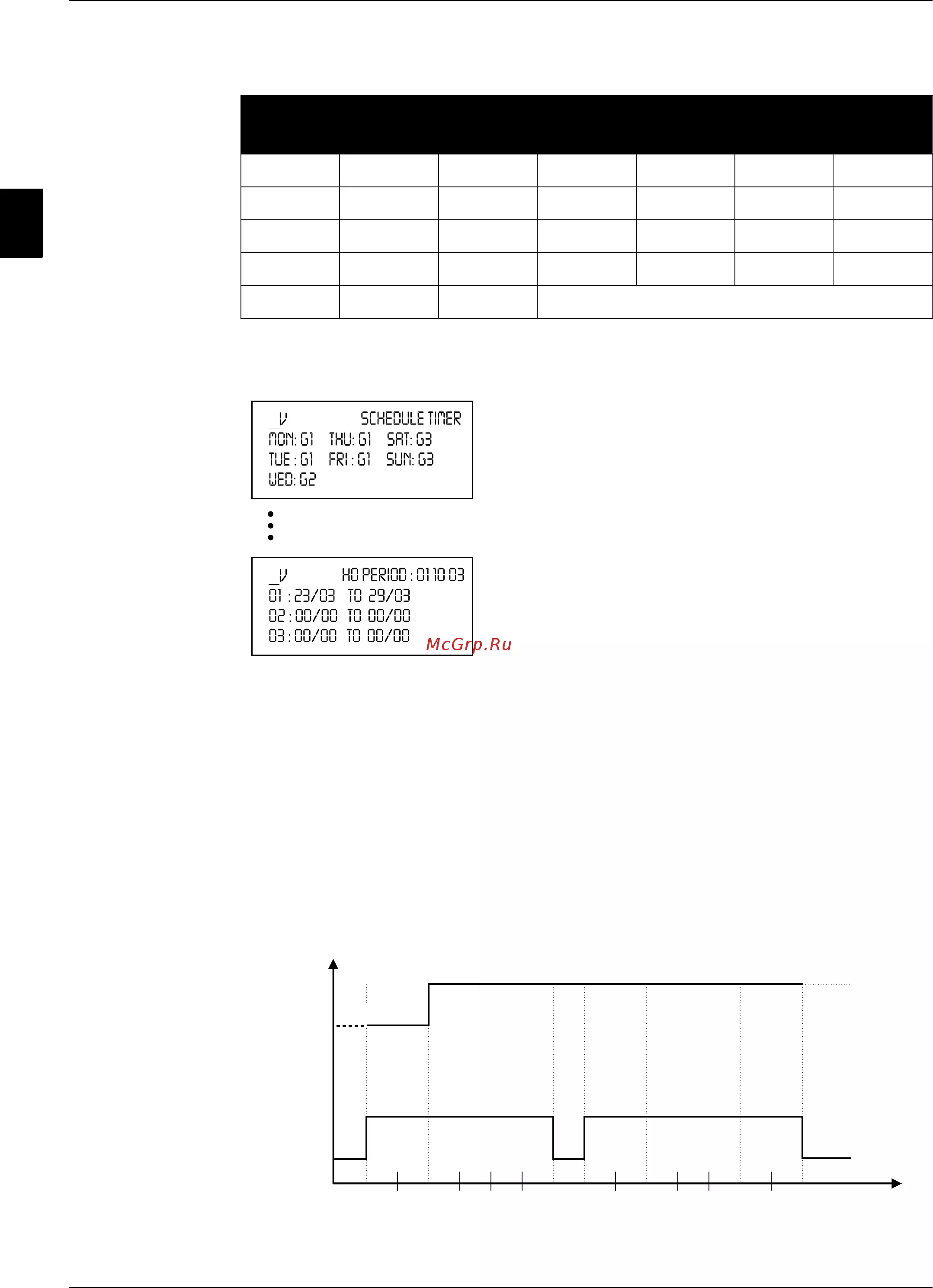

Screen 8a2 This additional screen appears when the holiday period timer is enabled. This screen is only visible if

the unit is operating as a standalone unit or if the unit is the master in a DICN setup and the holiday

timer is activated.

For possible operation times and action settings, see the possible settings for the schedule timer.

Remark: Only 1 group of settings (holiday) is possible for all programmed holidays (max. 12).

Screen 8b2 This additional screen appears when the holiday period timer is enabled. This screen is only visible if

the unit is operating as a standalone unit or if the unit is the master in a DICN setup. In this menu it is

possible to define up to 12 holiday periods.

Line n° Display Description

HOLIDAY:01 TO 03

To select the programmed holiday actions 1 to 3.

1b HOLIDAY:04 TO 06 To select the programmed holiday actions 4 to 3.

1c HOLIDAY:07 TO 09 To select the programmed holiday actions 7 to 9.

2 X:00h00 - 00.0

To set one of the nine times and actions

And specify a setpoint or capacity limitation.

3 X:00h00 - 00.0

4 X:00h00 - 00.0

Line n° Display Description

1a HD PERIOD:01 TO 03 To set holiday period 1 to 3.

1b HD PERIOD:04 TO 06 To set holiday period 4 to 6.

1c HD PERIOD:07 TO 09 To set holiday period 7 to 9.

1d HD PERIOD:10 TO 12 To set holiday period 10 to 12.

2 X:00/00 TO 00/00 To set one of the twelve holiday periods

3 X:00/00 TO 00/00 To set one of the twelve holiday periods

4 X:00/00 TO 00/00 To set one of the twelve holiday periods
