Procedure for software upload/download ESIE05-07
3–24 Part 3 – Troubleshooting
3
1
3
4
5
5
6

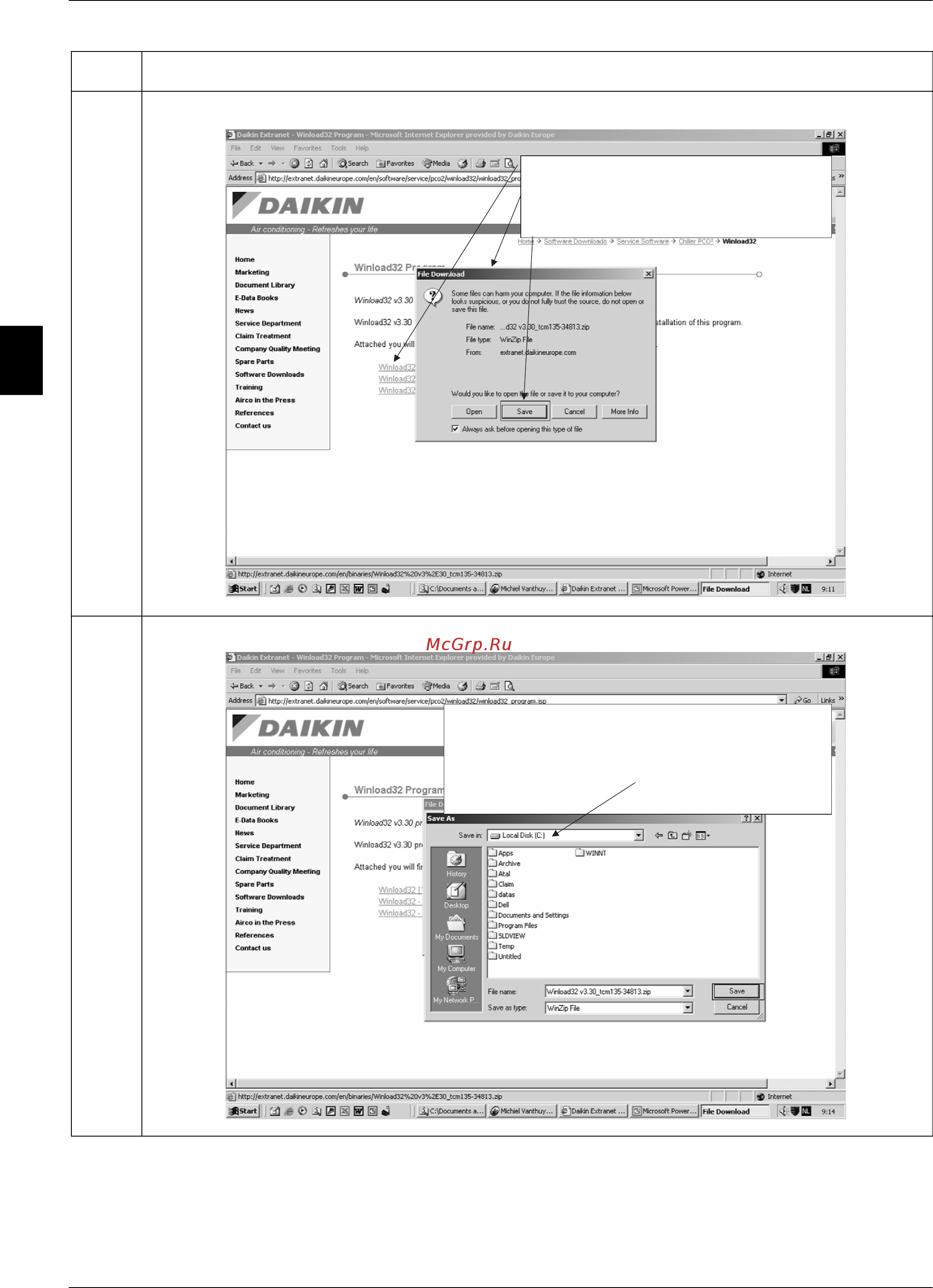

Step Action
1. Click on winload32 to download the file
2. “file download” screen will appear
3. Click on save
Download the file to your hard disk
1. Browse to the place were you want to save the file
Example: save on C-drive
2. Press save
1
2
ESIE05-07.book Page 24 Wednesday, October 11, 2006 10:42 AM
