Fluke FLK-116 [13/24] Measuring ac and dc voltage

True-rms Multimeter

Making Basic Measurements

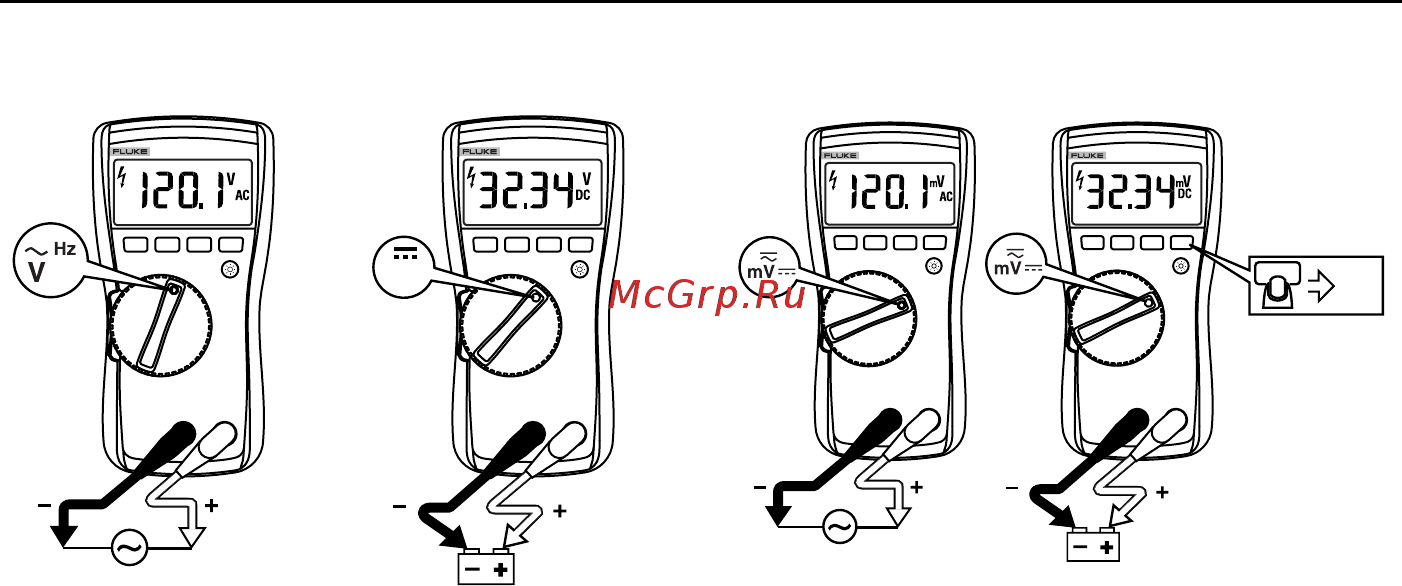

Measuring AC and DC Voltage

Volts DC Volts AC

eeo03f.eps

Using Auto Volts Selection

With the function switch in the x position, the Meter

automatically selects a dc or ac voltage measurement

based on the input applied between the + and COM jacks.

This function also sets the Meter’s input impedance to

approximately 3 kΩ to reduce the possibility of false

readings due to ghost voltages.

Measuring AC and DC Millivolts

Millivolts DC Millivolts AC

edy18f.eps

With the function switch in the l position, the Meter

measures ac plus dc millivolts. Press g to switch the

Meter to dc millivolts.
