Measuring AC and DC Current

WWarning

To avoid personal injury or damage to the

Meter:

• Never attempt to make an in-circuit

current measurement when the open-

circuit potential to earth is > 600 V.

• Use the proper switch position and range

for your measurement.

Flame

sensor

probe

Control

Module

eeo08f.eps

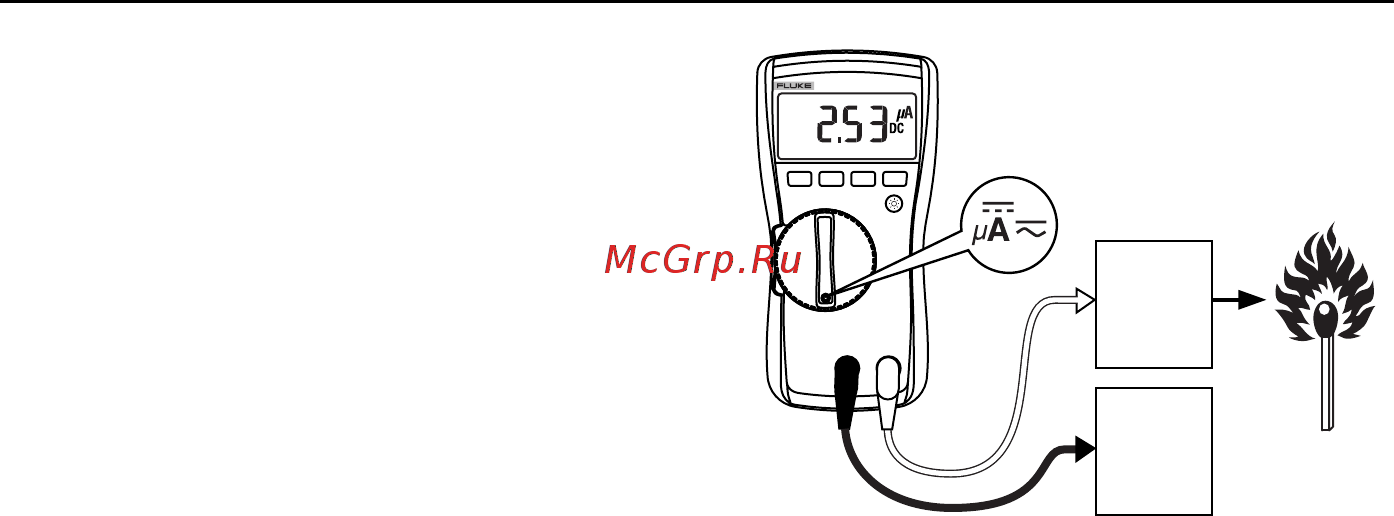

To measure flame rectification circuits:

1. Turn the function switch to

2. Connect the Meter between the flame sensor probe and

the control module.

3. Turn heating unit on and record μA measurement.
