116

Users Manual

Using the Bargraph

The bar graph is like the needle on an analog meter. It has

an overload indicator (>) to the right and a polarity

indicator (+) to the left.

Because the bar graph updates much faster than the digital

display, the bar graph is useful for making peak and null

adjustments.

The bar graph is disabled when measuring capacitance and

temperature. In frequency, the bar graph and range

annunciator indicates the underlying voltage up to 1 kHz.

The number of segments indicates the measured value and

is relative to the full-scale value of the selected range.

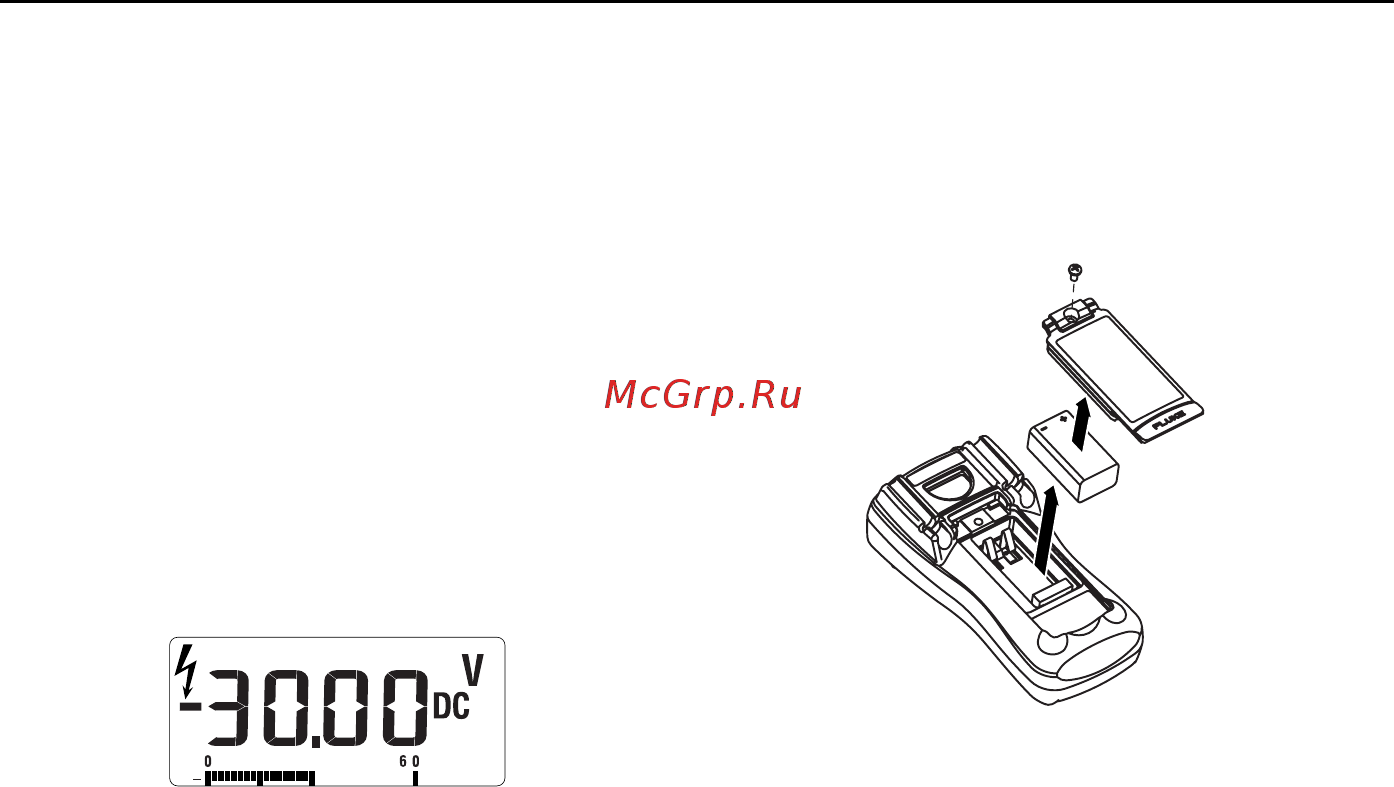

In the 60 V range, for example (see below), the major

divisions on the scale represent 0, 15, 30, 45, and 60 V. An

input of −30 V turns on the negative sign and the segments

up to the middle of the scale.

aej11f.eps

Maintenance

Maintenance of the Meter consists of replacing the battery

and cleaning the case.

Replacing the Battery

eeo11f.eps
