- 14 -

Hardware Installation

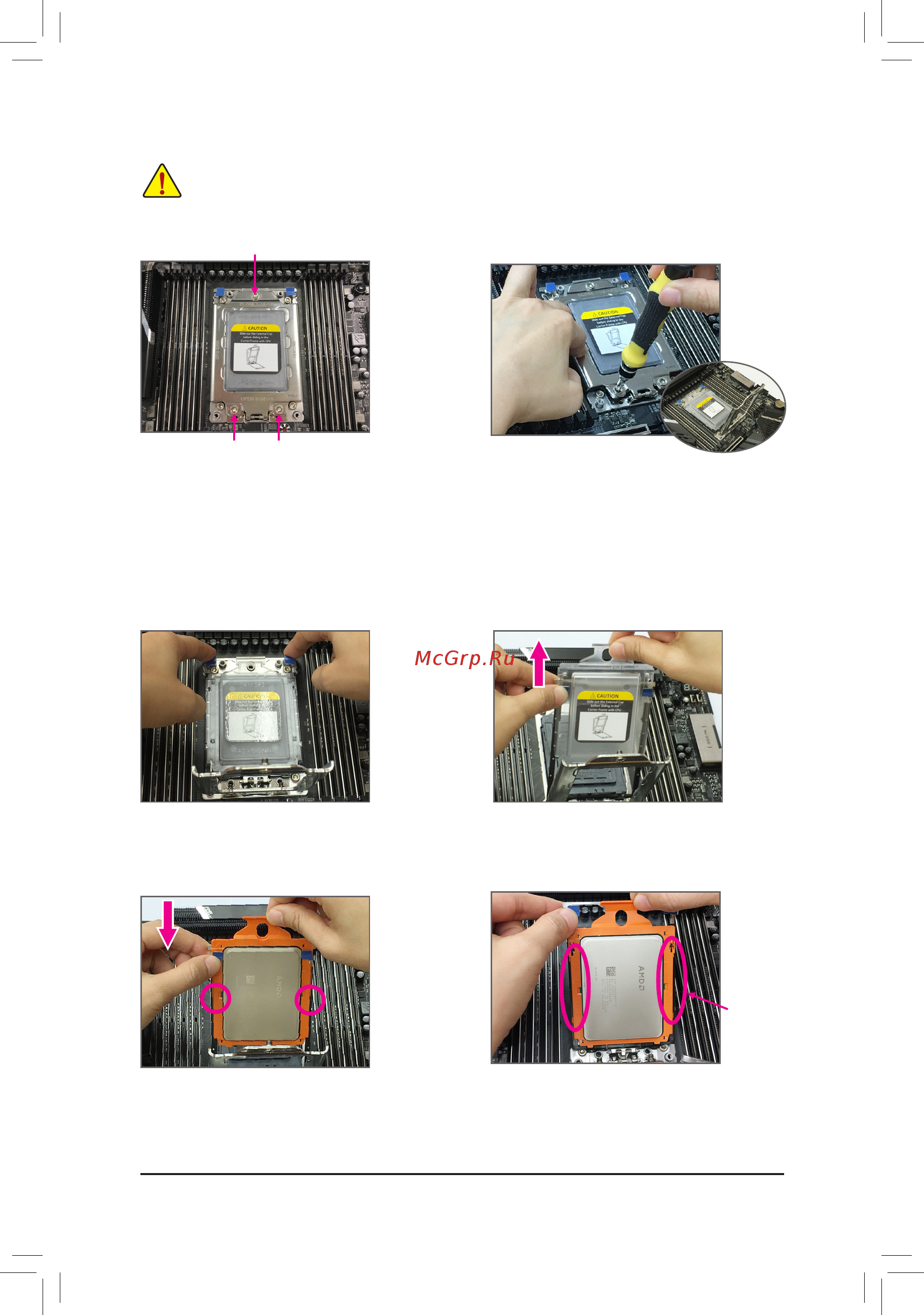

Follow the steps below to correctly install the CPU into the motherboard CPU socket.

• Before installing the CPU, make sure to turn off the computer and unplug the power cord from

the power outlet to prevent damage to the CPU.

• To protect the socket contacts, do not remove the CPU socket cap unless the CPU is inserted

into the CPU socket. Save the cap properly and always replace it when the CPU is removed.

Step 4:

Use one hand to hold the rail frame and the other

to slide the external cap out of the rail frame.

Step 5:

Grasp the top portion of the CPU carrier frame and

align the edges of the CPU carrier frame with the

rails of the CPU rail frame. Then slide the carrier

frame into the rails until the it stops sliding in.

Step 3:

Useyourngerstopullupthetabsonthetwo

sides of the CPU rail frame to release the CPU rail

frame from the CPU socket. Then lift the rail frame.

Step 2:

To open the CPU metal load plate, start by

looseningScrew3,thenScrew2,andnallyScrew

1. After all three screws are loosened, gently lift the

load plate to its fully open position.

Make sure the edges of the CPU carrier frame are

installed correctly on the rails.

CPU Rail

Frame Rails

Screw 1

Screw 3 Screw 2

Step 1:

On the CPU metal load plate, there are three

screws marked as 1, 2, 3. To loosen/tighten these

screws, you need a T20 star screwdriver. The

OPEN and CLOSE markings indicate in what order

to loosen/tighten the screws.

To open the CPU metal load plate, loosen the

screws in 3>2>1 sequence.

To close the CPU metal load plate, tighten the

screws in 1>2>3 sequence.
