- 15 -

Hardware Installation

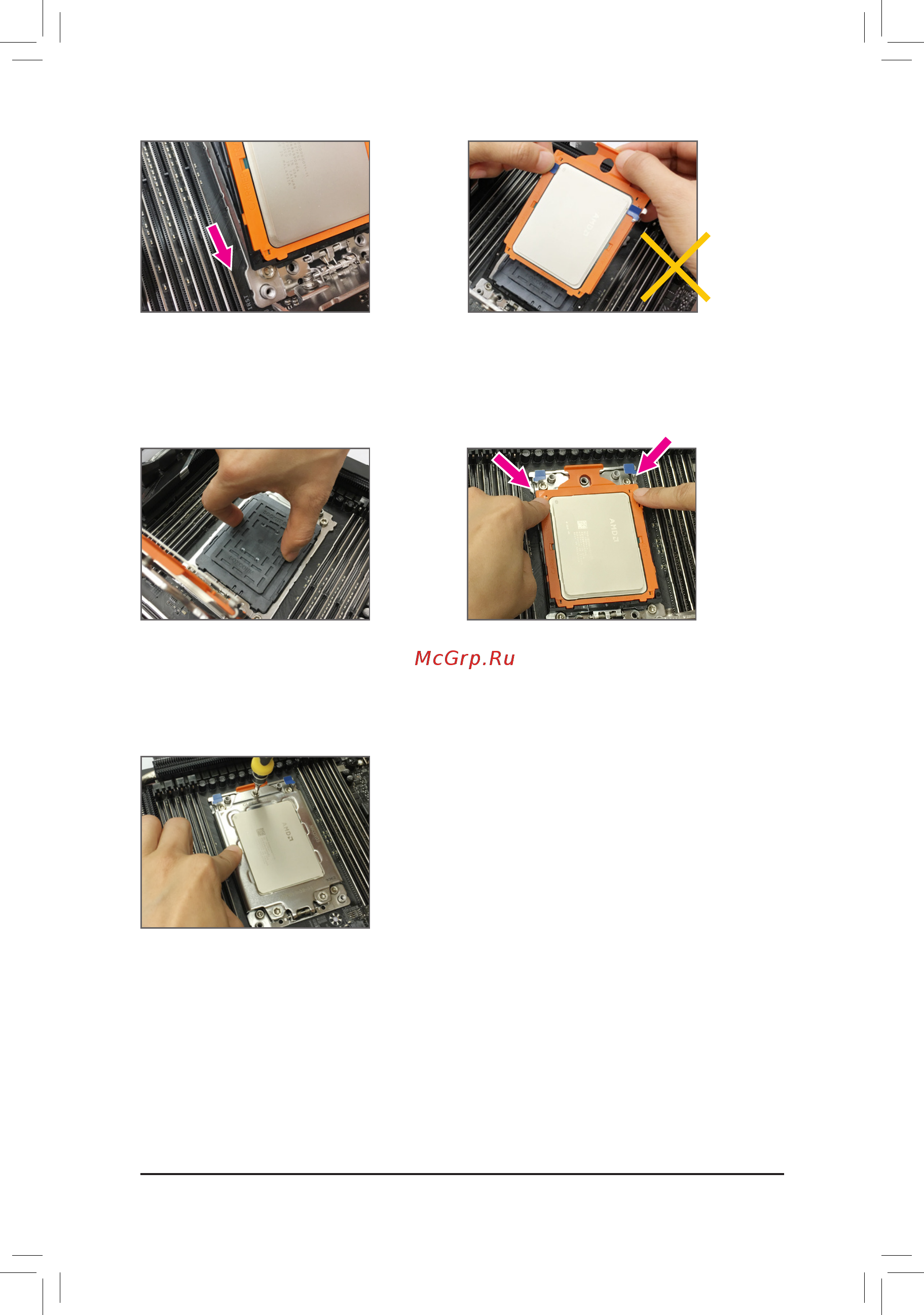

Step 8:

AfterinstallingtheCPU,usetwongerstopush

down on the upper portion of the sides of the CPU

carrier frame to fasten the rail frame back to the

CPU socket.

Step 9:

Close the metal load plate. With one finger

pressing down on the load plate, begin tightening

Screw 1 slightly. Then do the same to Screw 2

and Screw 3. Next, fully tighten the three screws.

Make sure the motherboard is placed on a stable

surface during the tightening process.

Step 6:

Push the carrier frame into place and you will hear

a "click" sound when it is pushed to the bottom.

Warning！The CPU carrier frame cannot

be placed outside the rails.

Step 7:

Remove the CPU socket cap.
