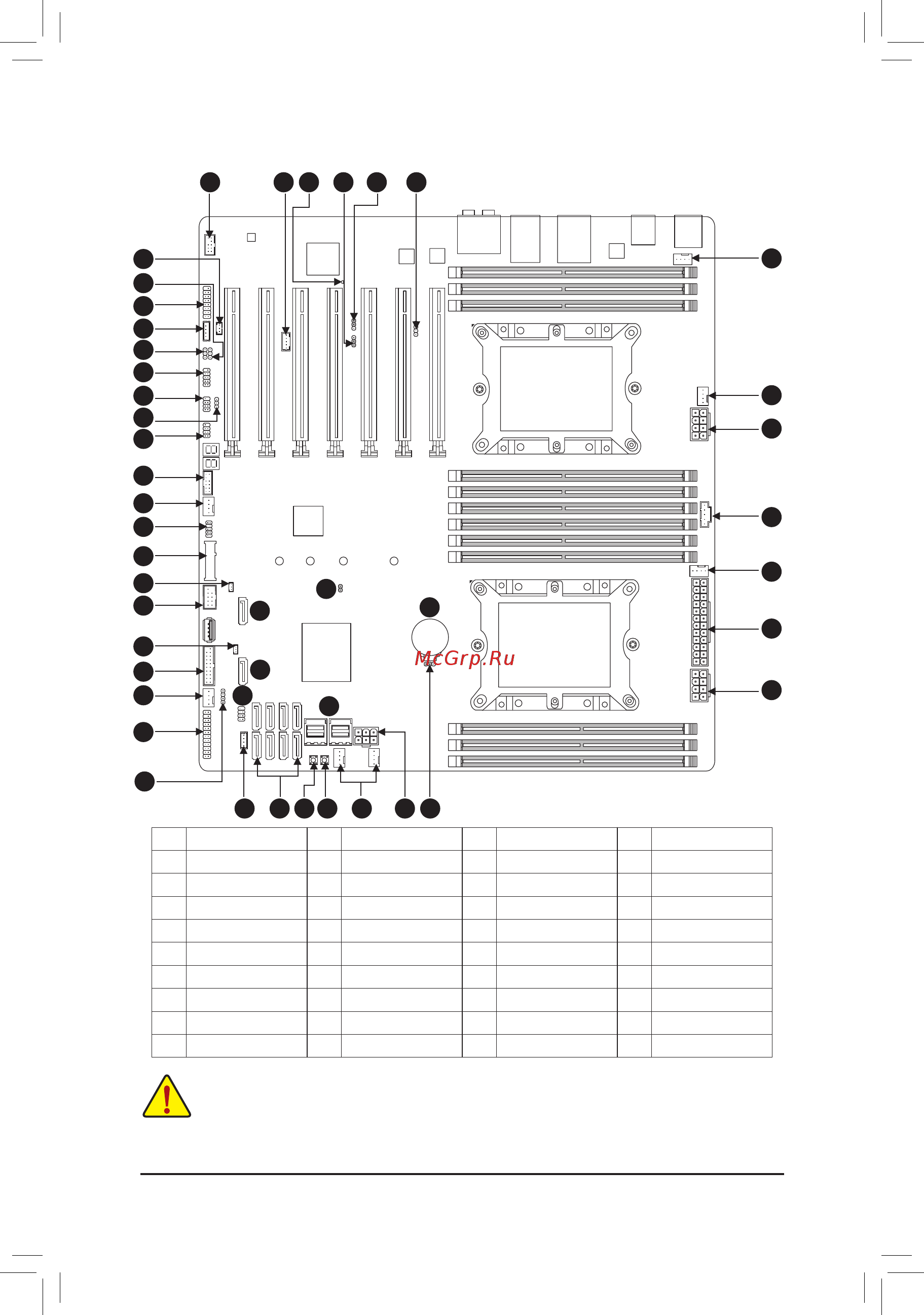

1-6 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the
power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has been securely
attached to the connector on the motherboard.
- 14 -
1 BMC_VGA *
2 BMC_WATCHD *
3 COM
4 SMB_IPMB*
5 I_SGPIO1
6 I_SGPIO2
7 WOL
8 SMB
9 TPM
10 TBT
11 BMC_UART *
12 SATA_DOM0
13 SATA_DOM1
14 VRM_SCL
15 VRM_SDA
16 FUSB30
17 VROC
18 FUSB2
19 F_PANEL
20 PMBUS
21 CLR_CMOS
22 CI
23 CPU_FAN1~2
24 SYS_FAN1~5
25 ATX
26 ATX8P_1~2
27 ATX12V 6P
28 S-SATA0~1
29 I-SATA0~7
30 PCIEX4_M2
31 U2_1~2
32 PWR_SW
33 RST_SW
34 S_SGPIO
35 F_AUDIO
36 VGA *
37 SMB_VMD
38 SPEAKER
39 BMC_LED2 *
40 BAT
1
20
24
39
235
4
5
6
7
10
14
16
18
17
15
19
25
12
9
13
23
22
11
8
33 27
26
3
32 21
30
29
38
31
34
36
23
24
24
24
26
37
40
28
28
* Only for the GA-C621-WD12-IPMI.
