Gigabyte C621-WD12-IPMI (rev. 1.0) [23/47] Smd_vmd nvme smbus control header
![Gigabyte C621-WD12-IPMI (rev. 1.0) [23/47] Smd_vmd nvme smbus control header](/views2/1679929/page23/bg17.png)

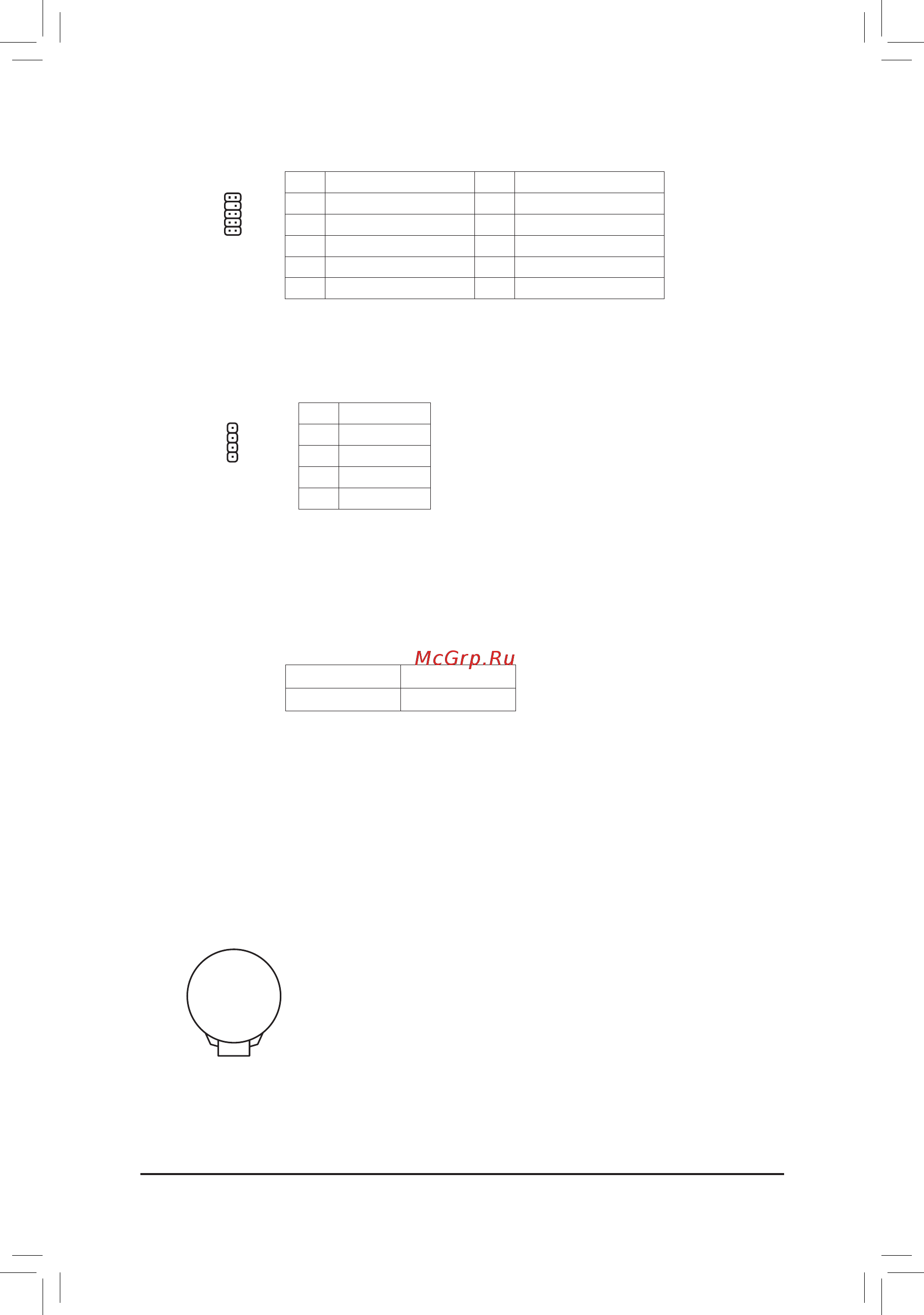

37) SMD_VMD (NVMe SMBUS Control Header)
Pin Denition Pin Denition
1
SMB_CPU1_NVME_CLK
2 SMB_CPU1_NVME_DATA
3 GND 4 GND
5
SMB_CPU2_NVME_CLK
6 SMB_CPU2_NVME_DATA
7 GND 8 -
9
SMB_PCH_NVME_CLK
10 SMB_PCH_NVME_DATA
9
1
10
2
40) BAT
38) SPEAKER (Speaker Header)
39) BMC_LED2 (BMC Heartbeat LED) *
Pin Denition
1
5V
2 NA
3
NA
4 SPK-
1
State Description
Off BMC Normal
* Only for the GA-C621-WD12-IPMI.
- 23 -
