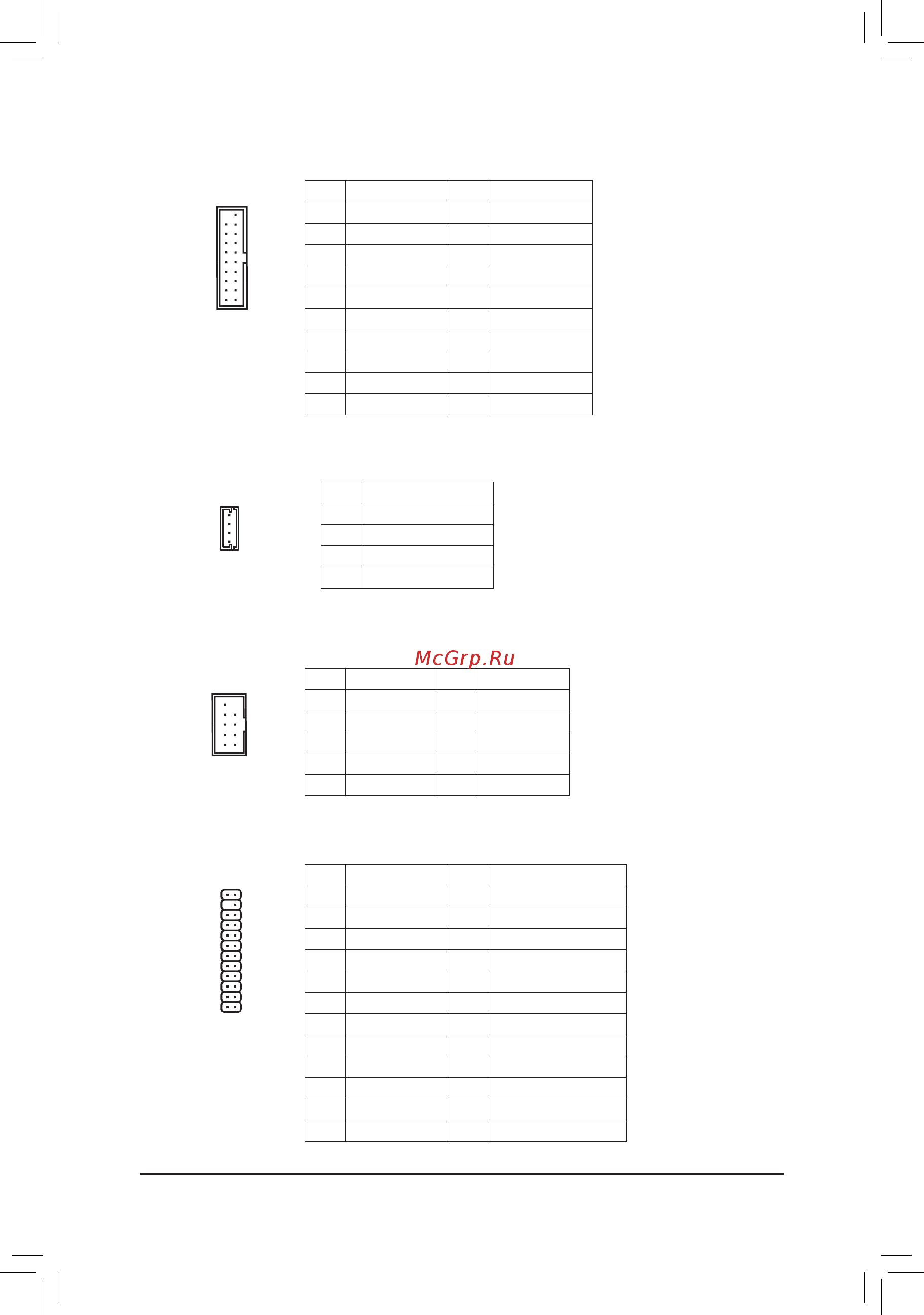

16) FUSB30
Pin Denition Pin Denition
1 VBUS 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 GND
4 GND 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 GND
7 GND 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS
10 NC 20 -
Pin Denition
1 GND
2 Power (3.3V)_AUX
3 GND
4 PCH RAID KEY
1
17) VROC (RAID Key for CPU NVMe SSD)
Pin Denition Pin Denition
1 Power (5V) 2 Power (5V)
3 USB DX- 4 USB DY-
5 USB DX+ 6 USB DY+
7 GND 8 GND
9 - 10 NC
9
1
10
2
18) FUSB2
2423
21
19) F_PANEL
Pin Denition Pin Denition
1 Power LED+ 2 5V Standby
3 - 4 ID LED+
5 Power LED- 6 ID LED-
7 HDD LED+ 8 System Status LED+
9 HDD LED1 10 System Status LED-
11 Power Button 12 LAN1 Active LED+
13 GND 14 LAN1 Link LED-
15 Reset Button 16 SMBus Data
17 GND 18 SMBus Clock
19 ID Button 20 Case Open
21 GND 22 LAN2 Active LED+
23 NMI Switch 24 LAN2 Link LED-
- 18 -
