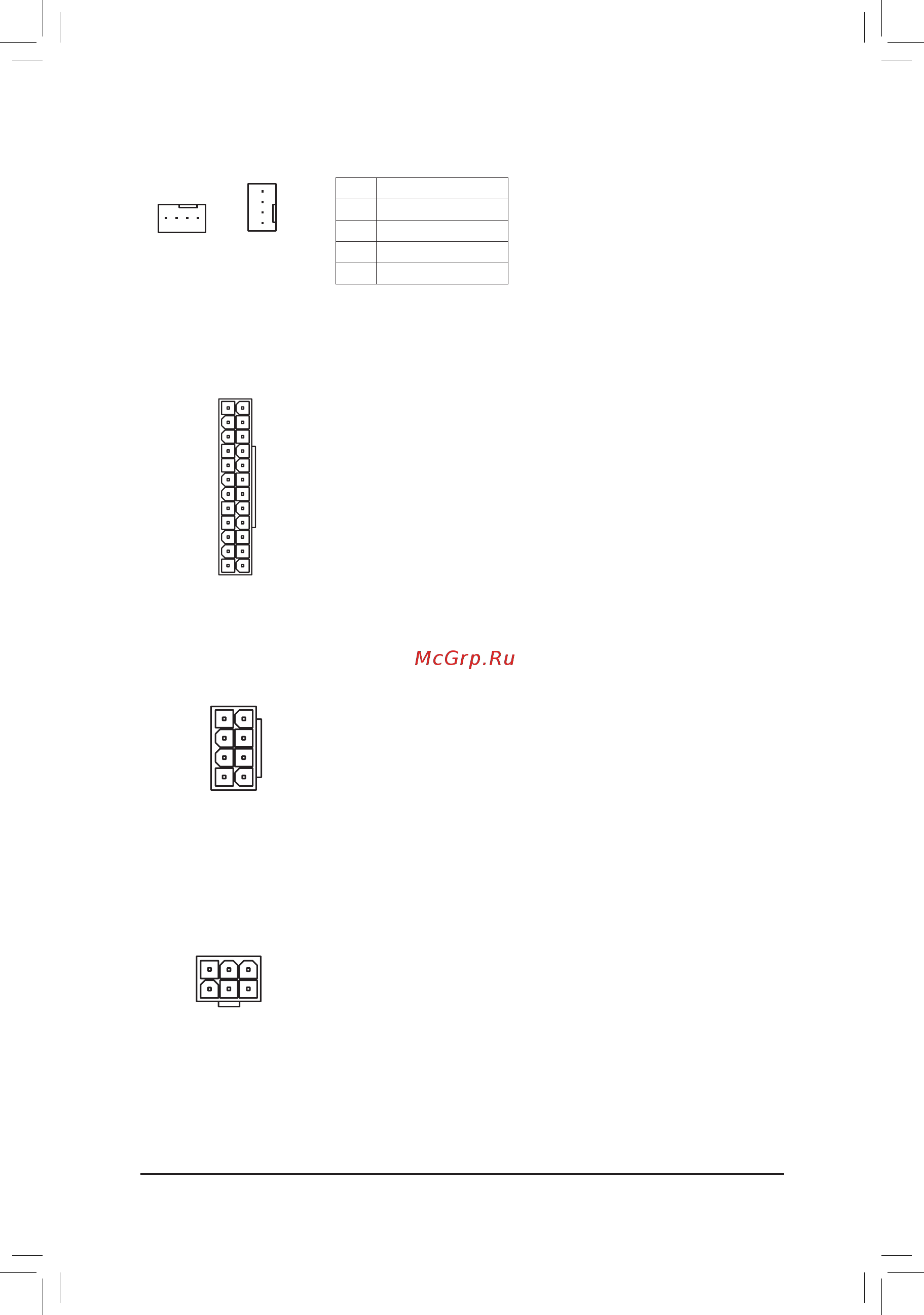

Gigabyte C621-WD12-IPMI (rev. 1.0) [20/47] Sys_fan1 5
![Gigabyte C621-WD12-IPMI (rev. 1.0) [20/47] Sys_fan1 5](/views2/1679929/page20/bg14.png)
Pin Denition
1 GND
2 Power (12V)
3 FAN_TACH
4 FAN_PWM
24) SYS_FAN1~5
1
1
SYS_FAN2SYS_FAN1~5
25) ATX (2x12 Main Power Connector)
1 13
12 24
26) ATX8P_1~2 (2x4, 12V Power Connectors)
4 8
1 5
27) ATX12V_6P (2x3, 12V Power Connectors)
4 6
1 3
- 20 -
