Gigabyte C621-WD12-IPMI (rev. 1.0) [35/47] Boot mode
![Gigabyte C621-WD12-IPMI (rev. 1.0) [35/47] Boot mode](/views2/1679929/page35/bg23.png)

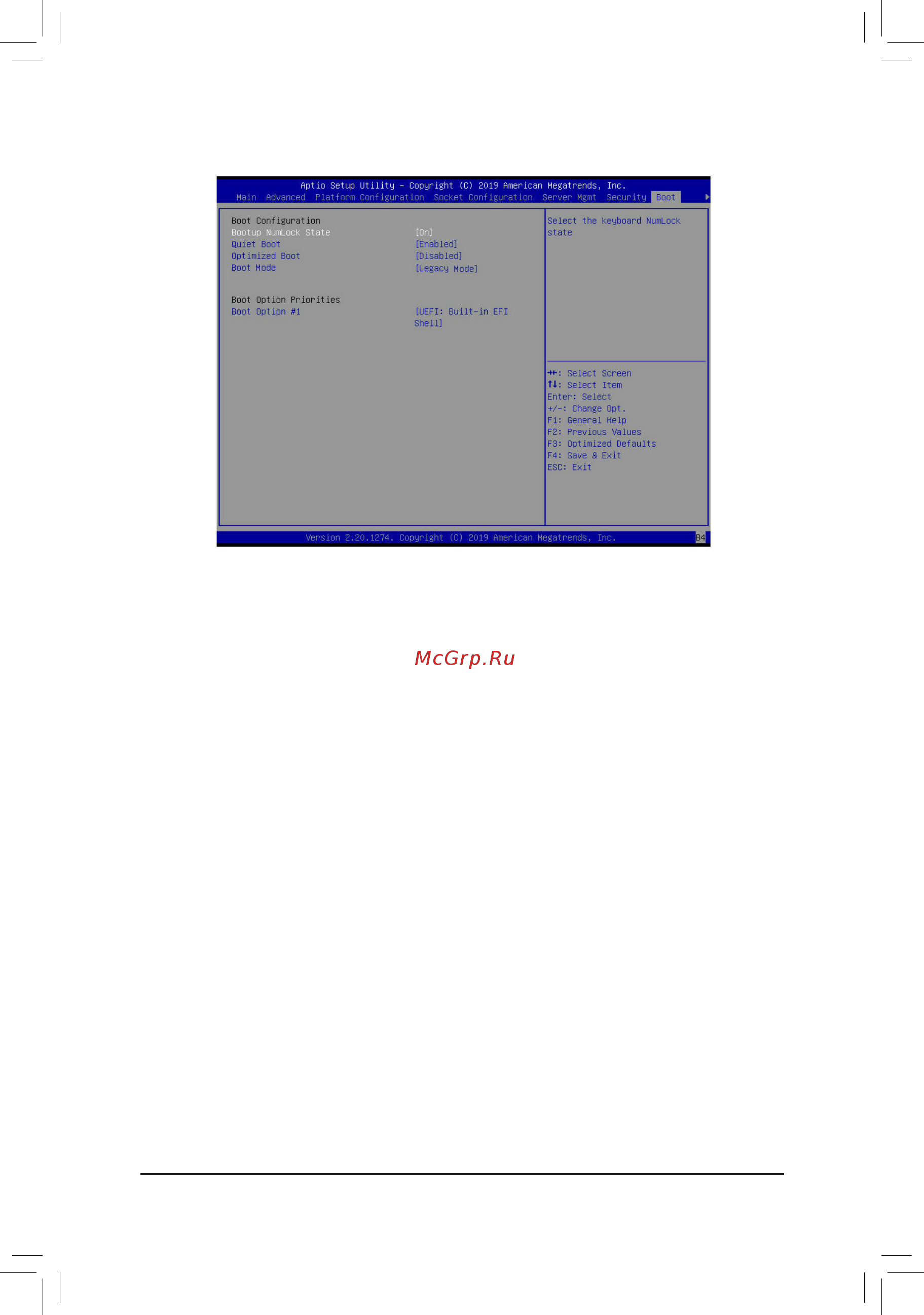

2-8 Boot
& Bootup NumLock State
Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST.
& Quiet Boot
Allows you to determine whether to display the GIGABYTE Logo at system startup.
& Optimized Boot
Enables or disables Optimized Boot feature.
& Boot Mode
Selects the boot mode. Options are Legacy Mode/UEFI Mode.
& Boot Option Priorities
Species the overall boot order from the available devices. Removable storage devices that support GPT
format will be prexed with "UEFI:" string on the boot device list. To boot from an operating system that
supports GPT partitioning, select the device prexed with "UEFI:" string.
Or if you want to install an operating system that supports GPT partitioning such as Windows 10 64-bit,
select the optical drive that contains the Windows 10 64-bit installation disk and is prexed with "UEFI:"
string.
& Boot Option Priorities
Species the overall boot order from the available devices. Removable storage devices that support GPT
format will be prexed with "UEFI:" string on the boot device list. To boot from an operating system that
supports GPT partitioning, select the device prexed with "UEFI:" string.
Or if you want to install an operating system that supports GPT partitioning such as Windows 10 64-bit,
select the optical drive that contains the Windows 10 64-bit installation disk and is prexed with "UEFI:"
string.
- 35 -
