160
Fatal1ty X79 Professional Series Motherboard
Türkçe

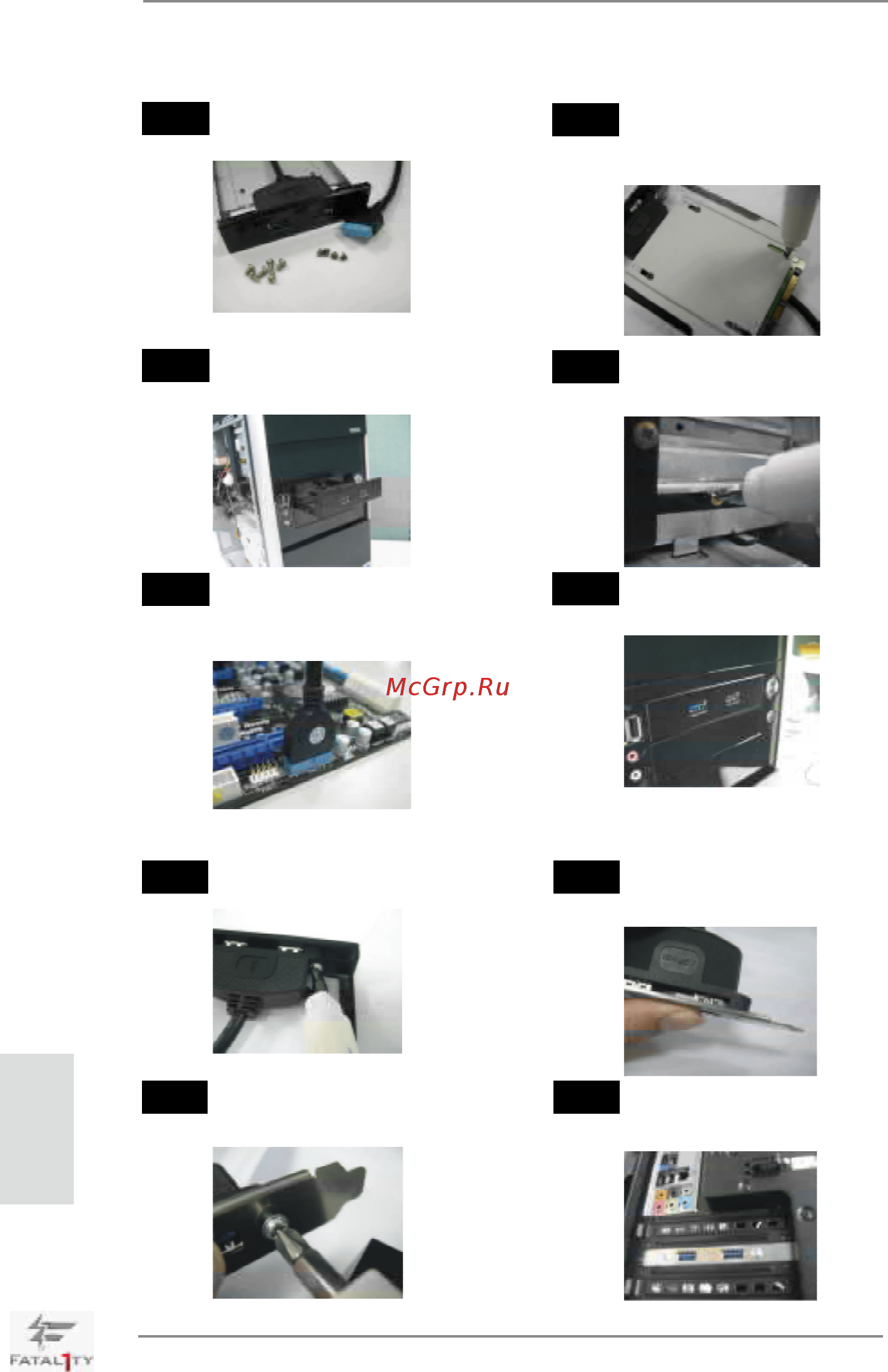

Ön USB 3.0 Panelinin Kurulum Kılavuzu
Ön USB 3.0 Panelini şasinin 2,5” sürücü
yuvasına kurun.
Adım 3
Adım 4
Ön USB 3.0 Paneli zaten kullanılıyor.
Ön USB 3.0 kablosunu anakarttaki USB
3.0 başlığına (USB3_5_6 veya USB3_7_8)
takın.
Adım 5
Adım 6
Ön USB 3.0 Panelini altı şasi vidası ile
sürücü yuvasına vidalayın.
Verilen Ön USB 3.0 Panelini, dört HDD
vidasını ve altı şasi vidasını hazırlayın.
Adım 1
Adım 2
2,5” HDD/SSD’yi Ön USB 3.0 Paneline
dört adet HDD vidasını kullanarak
vidalayın.
Arka USB 3.0 Braketinin Kurulum Kılavuzu
USB 3.0 kablosunu ve arka USB 3.0
braketini bir araya getirin.
Ön USB 3.0 Panelinden iki vidayı sökün.
Adım 1 Adım 2
Arka USB 3.0 braketini kasaya
yerleştirin.
İki vidayı arka USB 3.0 braketine
vidalayın.
Adım 4Adım 3
