ASRock Fatal1ty X79 Professional [221/238] 接頭
![ASRock Fatal1ty X79 Professional [221/238] 接頭](/views2/1686231/page221/bgdd.png)

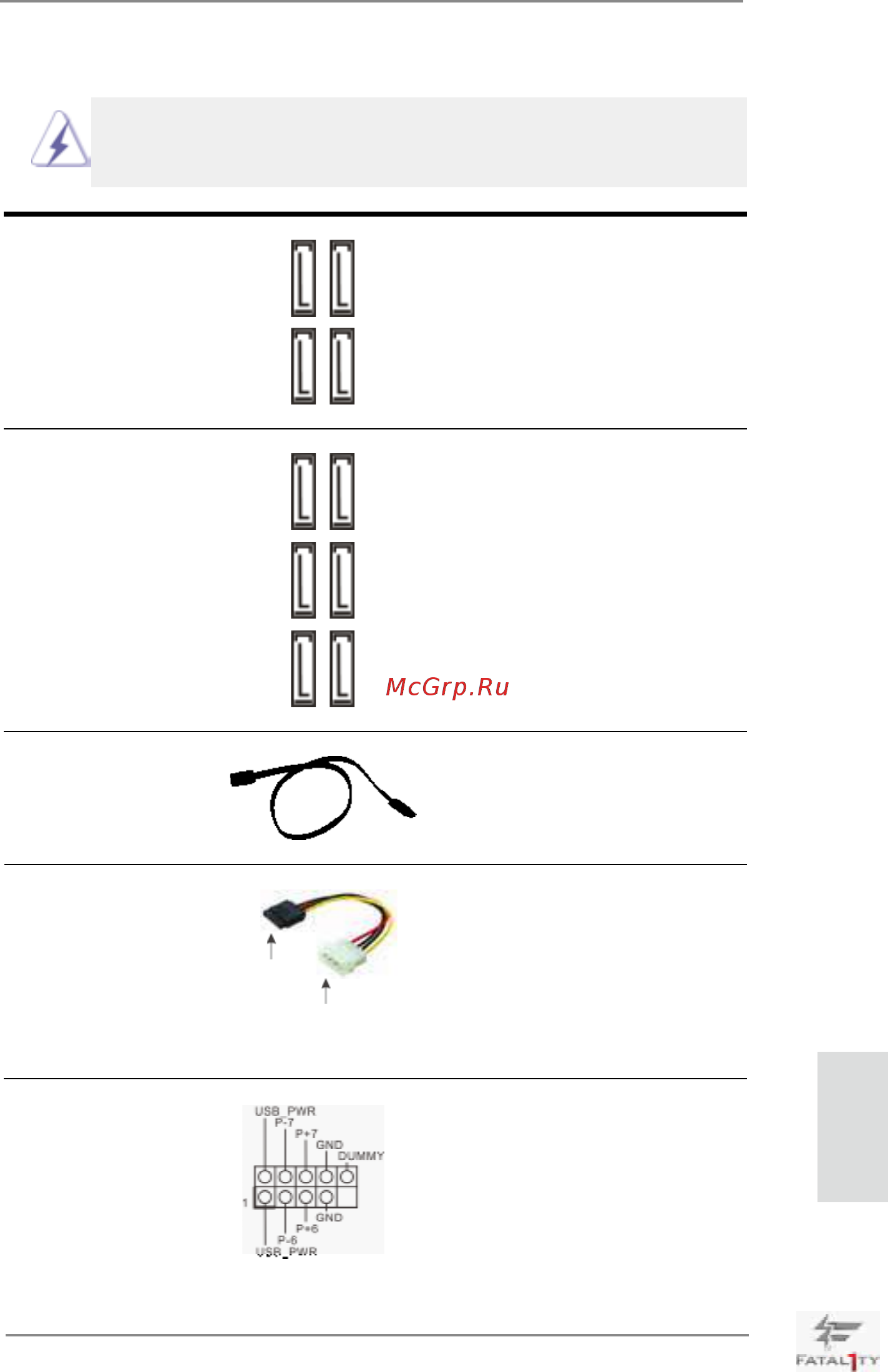

221
Fatal1ty X79 Professional Series Motherboard
Serial ATA (SATA) 請將 SATA 電源線黑色的一端連
電源線 接到 SATA 驅動器的電源接口。
(選配)
然後將 SATA 電源線白色的一端
連接到電源適配器的電源接口。
繁體中文
Serial ATA (SATA) SATA 數據線的任意一端均可連
數據線 接 SATA/SATA2/SATA3 硬碟或者
(選配)
主機板上的 SATA2/SATA3 接口。
Serial ATA2 接口 這裡有四組 Serial ATA2
(SATA2_0_1: 見第 4 頁第 13 項 )
(SATA2) 接口支援 SATA 數據線
(SATA2_2_3: 見第 4 頁第 12 項 )
作為內部儲存設置。目前 SATA2
界面理論上可提供高達 3.0Gb/s
的數據傳輸速率。
Serial ATA3 接口 這裡有六組 Serial ATA3
(SATA3_0_1: 見第 4 頁第 14 項 )
(SATA3) 接口支援 SATA 數據線
(SATA3_M0_M1: 見第 4 頁第 15 項 )
作為內部儲存設置。目前 SATA3
(SATA3_M2_M3: 見第 4 頁第 16 項 )
界面理論上可提供高達 6.0Gb/s
的數據傳輸速率。
1.4 接頭
此類接頭是不用跳線帽連接的，請不要用跳線帽短接這些接頭。
跳線帽不正確的放置將會導致主機板的永久性損壞 !
SATA2_0 SATA2_3
SATA2_1 SATA2_2
SATA3_1
SATA3_0
SATA3_M3 SATA3_M1
SATA3_M2 SATA3_M0
連接到電源
適配器
連接到 SATA 硬碟
電源接口
USB 2.0 擴充接頭 除了位於 I/O 面板的六個 USB
(9 針 USB_6_7)
2.0 接口之外，這款主機板有三
(見第4頁第29項)
組 USB 2.0 接針。每組 USB 2.0
接針可以支援兩個 USB 2.0 接口
。
