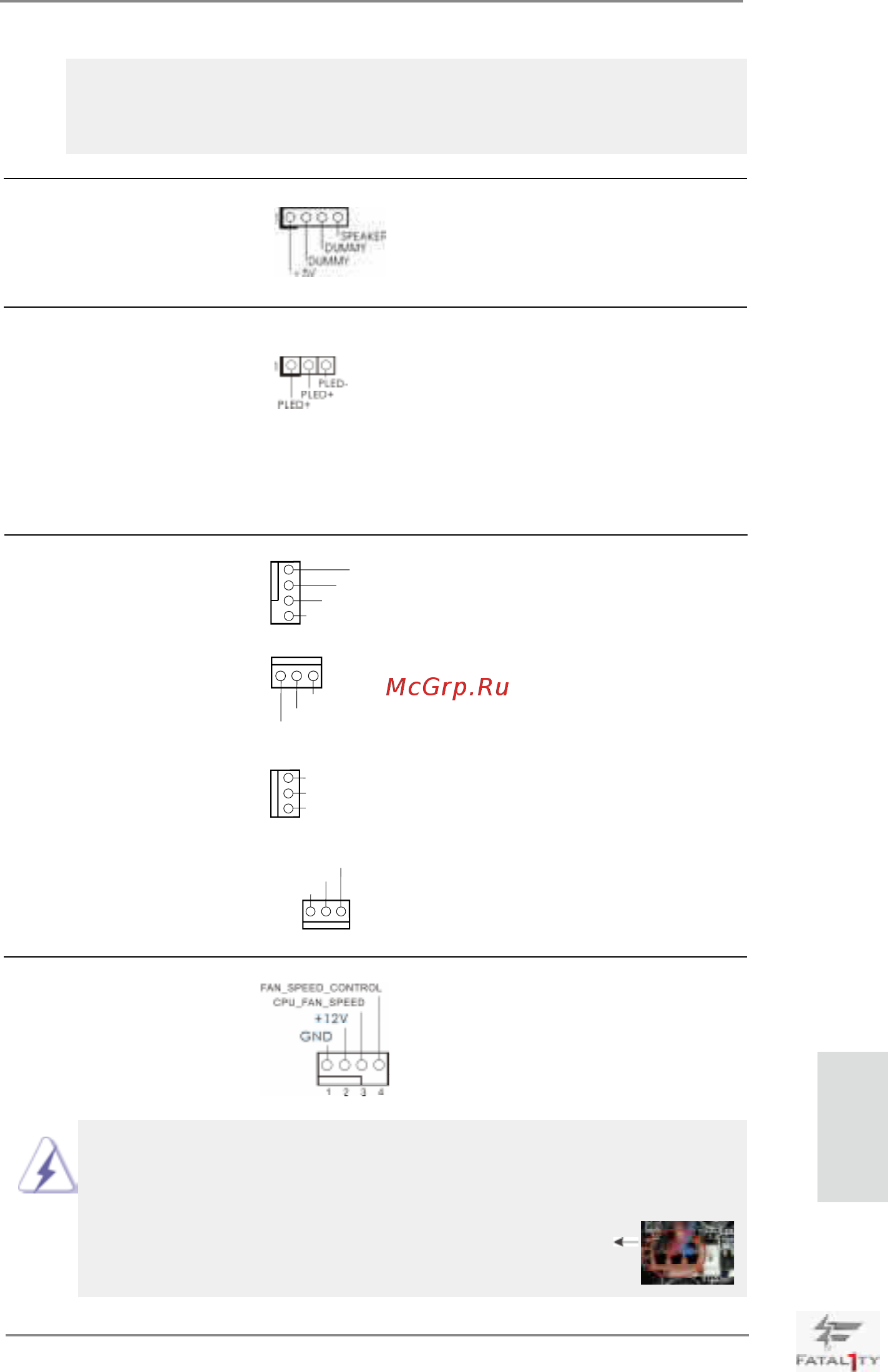

207
Fatal1ty X79 Professional Series Motherboard
簡體中文
前面板設計因機箱不同而有差異。前面板模塊一般由電源開關、重啟開
關、電源指示燈、硬盤動作指示燈、喇叭等構成。將您的機箱前面板連接
到此排針時 , 請確認連接線與針腳上的說明相對應。
電源指示燈連接排針 請將機箱電源指示燈連接到這一
(3 針 PLED1)
排針，以指示系統電源狀態。當
(見第4頁第23項)
系統正在運行時，LED指示燈亮。
在 S1 模式下，LED 指示燈會不
停閃爍。在 S3/S4 或 S5 模式 ( 關
機 ) 下，LED 指示燈會熄滅。
機箱喇叭接頭 請將機箱喇叭連接到這個接頭。
(4 針 SPEAKER1)
(見第4頁第21項)
機箱 , 電源風扇接頭 請將風扇連接線接到這個接頭，
(4 針 CHA_FAN1)
並讓黑線與接地的針腳相接。
(見第4頁第11項)
CHA_FAN1、CHA_FAN2 和
CHA_FAN3 支持風扇控制。
(3 針 CHA_FAN2)
(見第4頁第20項)
(3 針 CHA_FAN3)
(見第4頁第17項)
(3 針 PWR_FAN1)
(見第4頁第44項)
CHA_FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
GND
+12V
CHA_FAN_SPEED
GND
+12V
PWR_FAN_SPEED
GND
+12V
CHA_FAN_SPEED
CPU 風扇接頭 請將 CPU 風扇連接線接到這個接
(4 針 CPU_FAN1)
頭，讓黑線與接地的針腳相接。
(見第4頁第5項)
雖然此主板支持 4-Pin CPU 風扇 (Quiet Fan, 靜音風扇 ), 但是沒有調速功能的
3-Pin CPU 風扇仍然可以在此主板上正常運行。如果您打算將 3-Pin CPU 風扇
連接到此主板的 CPU 風扇接口 , 請將它連接到 Pin 1-3。
3-Pin 風扇的安裝
Pin 1-3 連接
