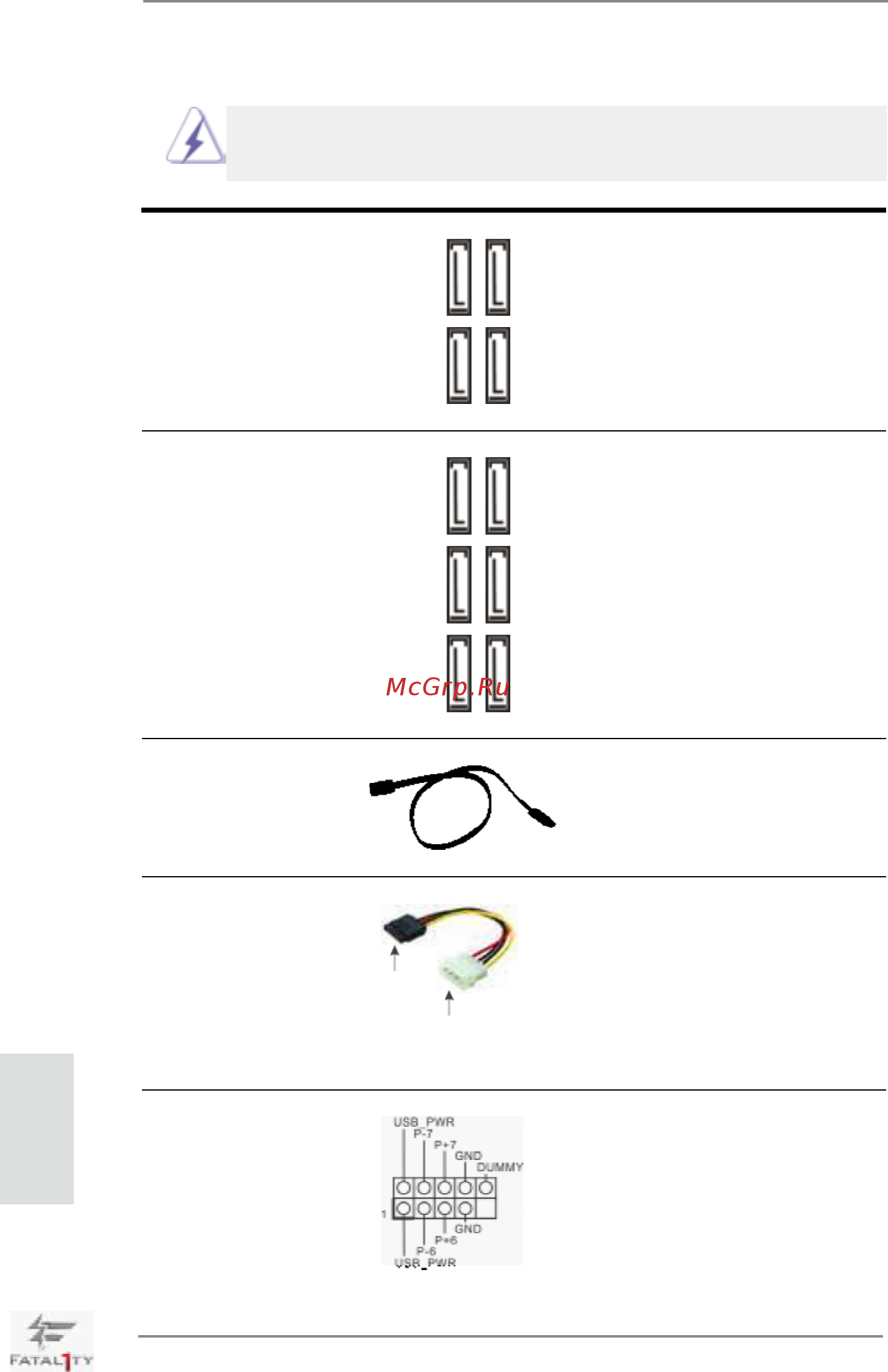

Fatal1ty X79 Professional Series Motherboard
簡體中文
Serial ATA (SATA) SATA 數據線的任意一端均可連
數據線
(選配)
接 SATA/SATA2/SATA3 硬盤或者
主板上的 SATA2/SATA3 接口。
Serial ATA3 接口 這裡有六組 Serial ATA3
(SATA3_0_1: 見第 4 頁第 14 項 )
(SATA3) 接口支持 Serial (SATA)
(SATA3_M0_M1: 見第 4 頁第 15 項 )
數據線作為內部儲存設置。目前
(SATA3_M2_M3: 見第 4 頁第 16 項 )
SATA3 界面理論上可提供高達
6.0Gb/s 的數據傳輸速率。
1.4 板載接頭和接口
板載接頭和接口不是跳線。切勿將跳線帽放置在這些接頭和接口上。將
跳線帽放置在接頭和接口上將會導致主板的永久性損壞！
Serial ATA2 接口 這裡有四組 Serial ATA2
(SATA2_0_1: 見第 4 頁第 13 項 )
(SATA2) 接口支持 Serial (SATA)
(SATA2_2_3: 見第 4 頁第 12 項 )
數據線作為內部儲存設置。目前
SATA2 界面理論上可提供高達
3.0Gb/s 的數據傳輸速率。
SATA2_0 SATA2_3
SATA2_1 SATA2_2
SATA3_1
SATA3_0
SATA3_M3 SATA3_M1
SATA3_M2 SATA3_M0
Serial ATA (SATA) 請將 SATA 電源線黑色的一端連
電源線 接到 SATA 驅動器的電源接口。
(選配)
然后將 SATA 電源線白色的一端
連接到電源適配器的電源接口。
連接到電源
適配器
連接到 SATA 硬盤
電源接口
USB 2.0 擴展接頭 除了位於 I/O 面板的六個默認
(9 針 USB_6_7)
USB 2.0 接口之外，這款主板有
(見第4頁第29項)
三組 USB 2.0 接針。每組USB 2.0
接針可以支持兩個 USB 2.0 接
口。
