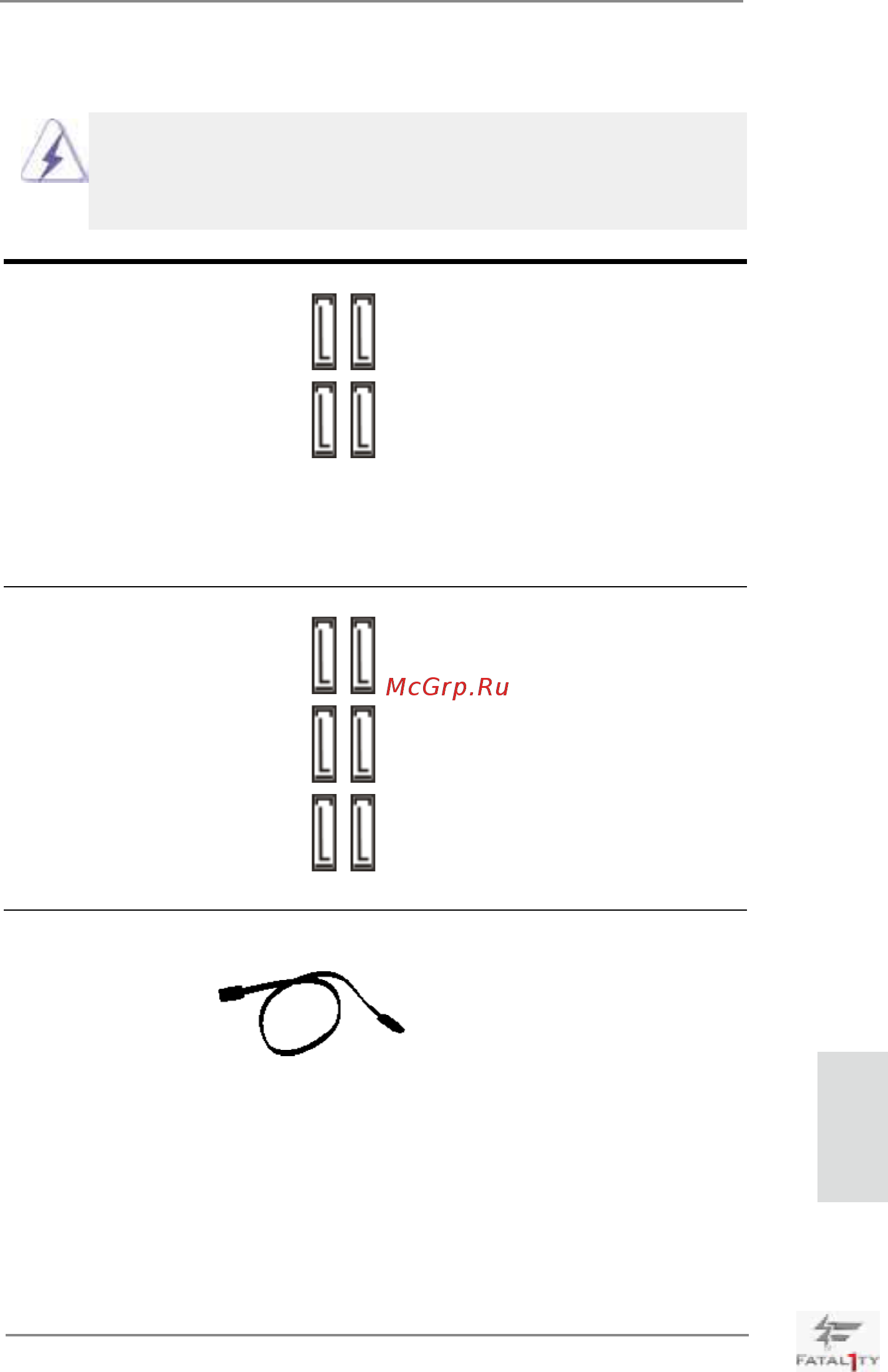

61
Fatal1ty X79 Professional Series Motherboard
Deutsch
Seriell-ATA2-Anschlüsse Diese vier Serial ATA2-
(SATA2_0_1: siehe S.4 - No. 13)
(SATA2-)Verbínder
(SATA2_2_3: siehe S.4 - No. 12)
unterstützten SATA-Datenkabel
für interne
Massenspeichergeräte. Die
aktuelle SATA2- Schnittstelle
ermöglicht eine
Datenübertragungsrate bis
3,0 Gb/s.
Seriell-ATA3-Anschlüsse Diese sechs Serial ATA3-
(SATA3_0_1: siehe S.4 - No. 14)
(SATA3-)Verbínder
(SATA3_M0_M1: siehe S.4 - No. 15)
unterstützten SATA-Datenkabel
(SATA3_M2_M3: siehe S.4 - No. 16)
für interne
Massenspeichergeräte. Die
aktuelle SATA3- Schnittstelle
ermöglicht eine
Datenübertragungsrate bis
6,0 Gb/s.
Serial ATA- (SATA-) SJedes Ende des SATA
Datenkabel Datenkabels kann an die SATA
(Option)
/ SATA2 / SATA3 Festplatte
oder das SATA2 / SATA3
Verbindungsstück auf dieser
Hauptplatine angeschlossen
werden.
1.4 Integrierte Header und Anschlüsse
Integrierte Header und Anschlüsse sind KEINE Jumper. Setzen Sie KE-
INE Jumperkappen auf diese Header und Anschlüsse. Wenn Sie Jump-
erkappen auf Header und Anschlüsse setzen, wird das Motherboard
unreparierbar beschädigt!
SATA2_0 SATA2_3
SATA2_1 SATA2_2
SATA3_1
SATA3_0
SATA3_M3 SATA3_M1
SATA3_M2 SATA3_M0
