37
Fatal1ty X79 Professional Series Motherboard
English

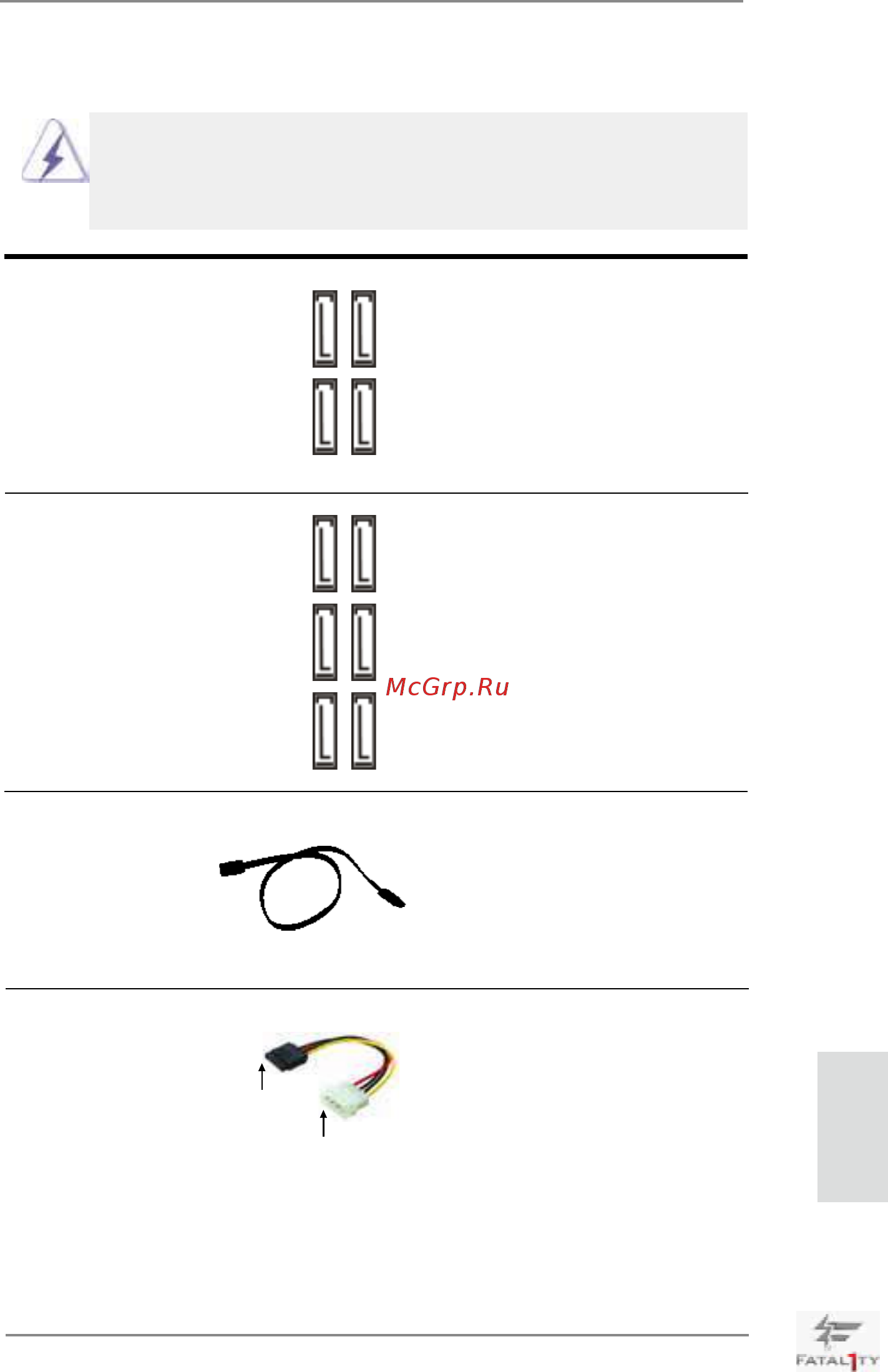

2.11 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These four Serial ATA2 (SATA2)
(SATA2_0_1: see p.4, No. 13)
connectors support SATA data
(SATA2_2_3: see p.4, No. 12)
cables for internal storage
devices. The current SATA2
interface allows up to 3.0 Gb/s
data transfer rate.
Serial ATA3 Connectors These six Serial ATA3
(SATA3_0_1: see p.4, No. 14)
(SATA3) connectors support
(SATA3_M0_M1: see p.4, No. 15)
SATA data cables for internal
(SATA3_M2_M3: see p.4, No. 16)
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
SATA2_0 SATA2_3
SATA2_1 SATA2_2
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA / SATA2 / SATA3 hard
disk or the SATA2 / SATA3
connector on this motherboard.
SATA3_1
SATA3_0
SATA3_M3 SATA3_M1
SATA3_M2 SATA3_M0
connect to the SATA
HDD power connector
connect to the
power supply
Serial ATA (SATA) Please connect the black end
Power Cable of SATA power cable to the
(Optional)
power connector on each drive.
Then connect the white end of
SATA power cable to the power
connector of the power supply.
