ASRock X58 Extreme6 Motherboard

EnglishEnglish

English

Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI

connector of the graphics card that is inserted to PCIE1 slot.

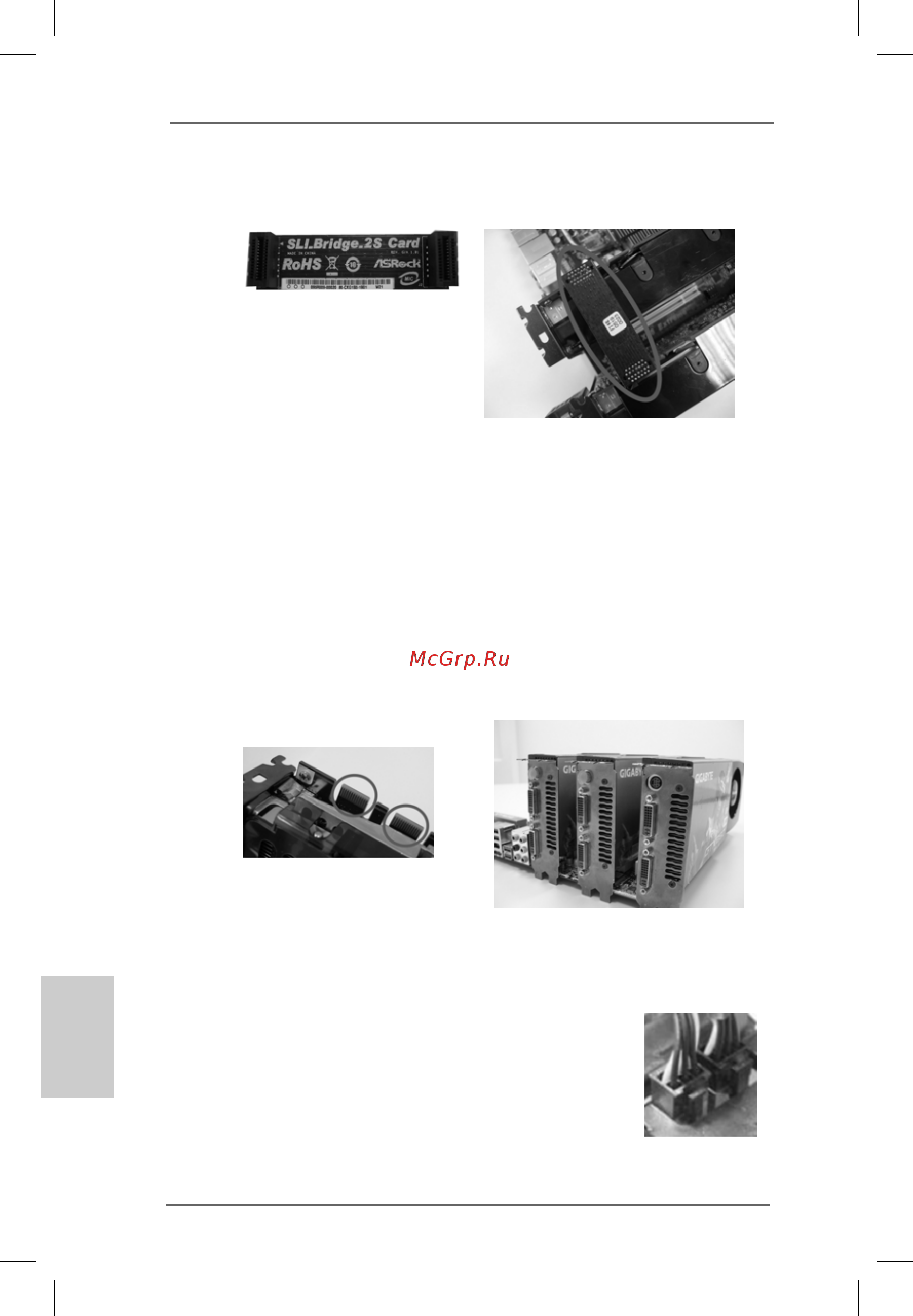

Step3. Align and insert ASRock SLI_Bridge_2S Card to the goldfingers on each

graphics card. Make sure ASRock SLI_Bridge_2S Card is firmly in place.

ASRock SLI_Bridge_2S Card

2.5.1.2 Installing Three SLI2.5.1.2 Installing Three SLI

2.5.1.2 Installing Three SLI

TMTM

-Ready Graphics Cards-Ready Graphics Cards

-Ready Graphics Cards

Step 1. Install the identical 3-Way SLI

-ready graphics cards that are NVIDIA

certified because different types of graphics cards will not work together

properly. (Even the GPU chips version shall be the same.) Each graphics

card should have two goldfingers for the 3-Way SLI Bridge connector.

Insert one graphics card into PCIE1 slot, another graphics card to PCIE4

slot, and the other graphics card to PCIE5 slot. Make sure that the cards are

properly seated on the slots.

Step2. Connect the auxiliary power source to the PCI Express graphics card.

Please make sure that both power connectors on the PCI Express graphics

card are connected. Repeat this step on the three graphics cards.

Two Goldfingers
