ASRock X58 Extreme6 Motherboard

Reset Switch Reset Switch is a smart switch,

(RSTBTN) allowing users to quickly reset

(see p.2 No. 20) the system.

Clear CMOS Switch Clear CMOS Switch is a smart

(CLRCBTN) switch, allowing users to quickly

(see p.3 No. 17) clear the CMOS values

You are not allowed to use Clear CMOS switch function if you set up the system

password. If you want to clear the CMOS values, please clean your system

password in advance or refer to page 30 “Clear CMOS jumper” description

instead.

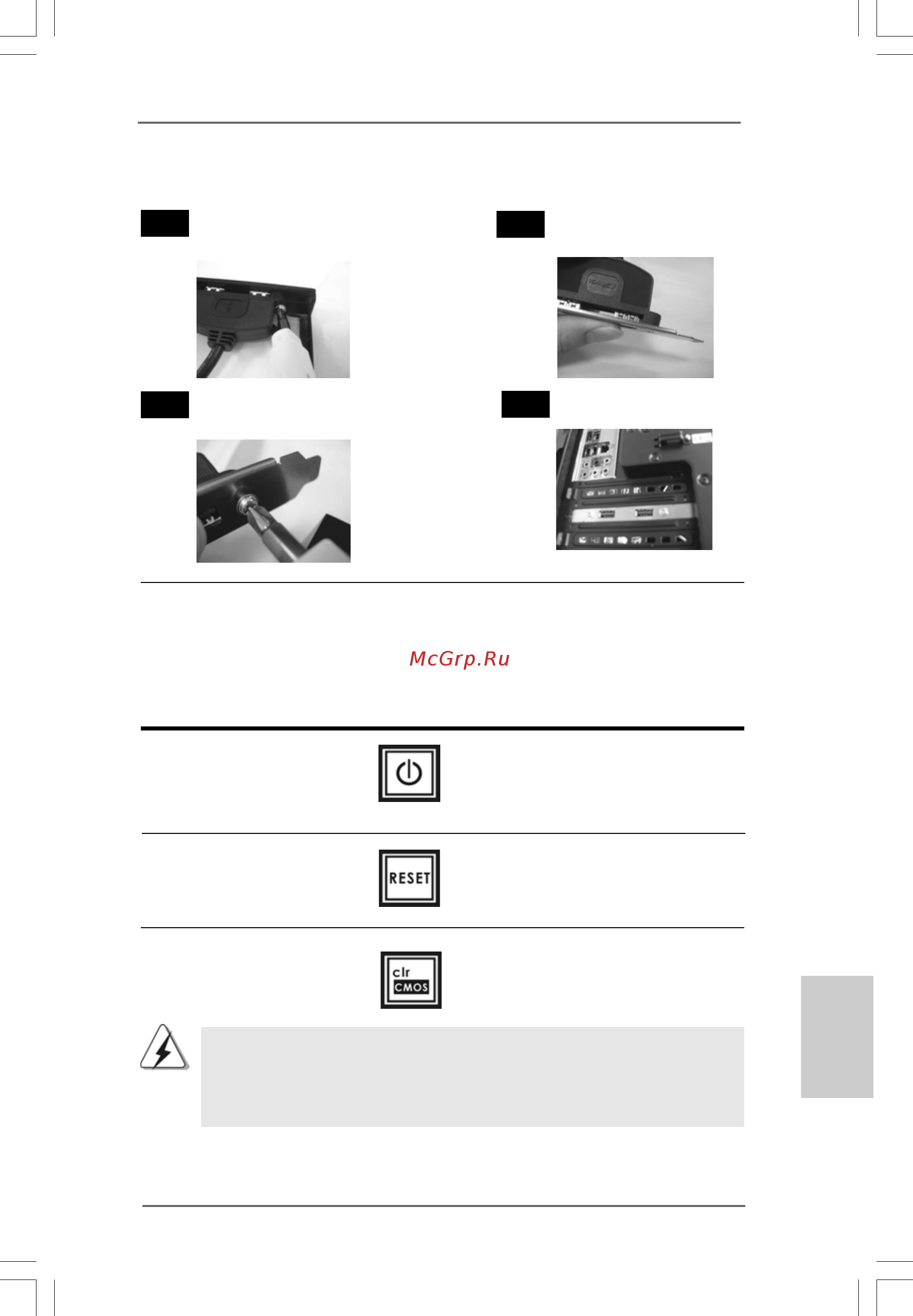

The Installation Guide of Rear USB 3.0 BracketThe Installation Guide of Rear USB 3.0 Bracket

The Installation Guide of Rear USB 3.0 Bracket

2.10 Smart Switches2.10 Smart Switches

2.10 Smart Switches

The motherboard has three smart switches: power switch, reset switch and clear

CMOS switch, allowing users to quickly turn on/off or reset the sytem clear the

CMOS values.

Put the USB 3.0 cable and the rear USB 3.0

bracket together.

Unscrew the two screws from the Front USB

3.0 Panel.

Step 1

Step 2

Put the rear USB 3.0 bracket into the chassis.

Screw the two screws into the rear USB 3.0

bracket.

Step 3

Step 4

Power Switch Power Switch is a smart switch,

(PWRBTN) allowing users to quickly turn

(see p.2 No. 22) on/off the system.
