ASRock X58 Extreme6 Motherboard
EnglishEnglish
EnglishEnglish
English

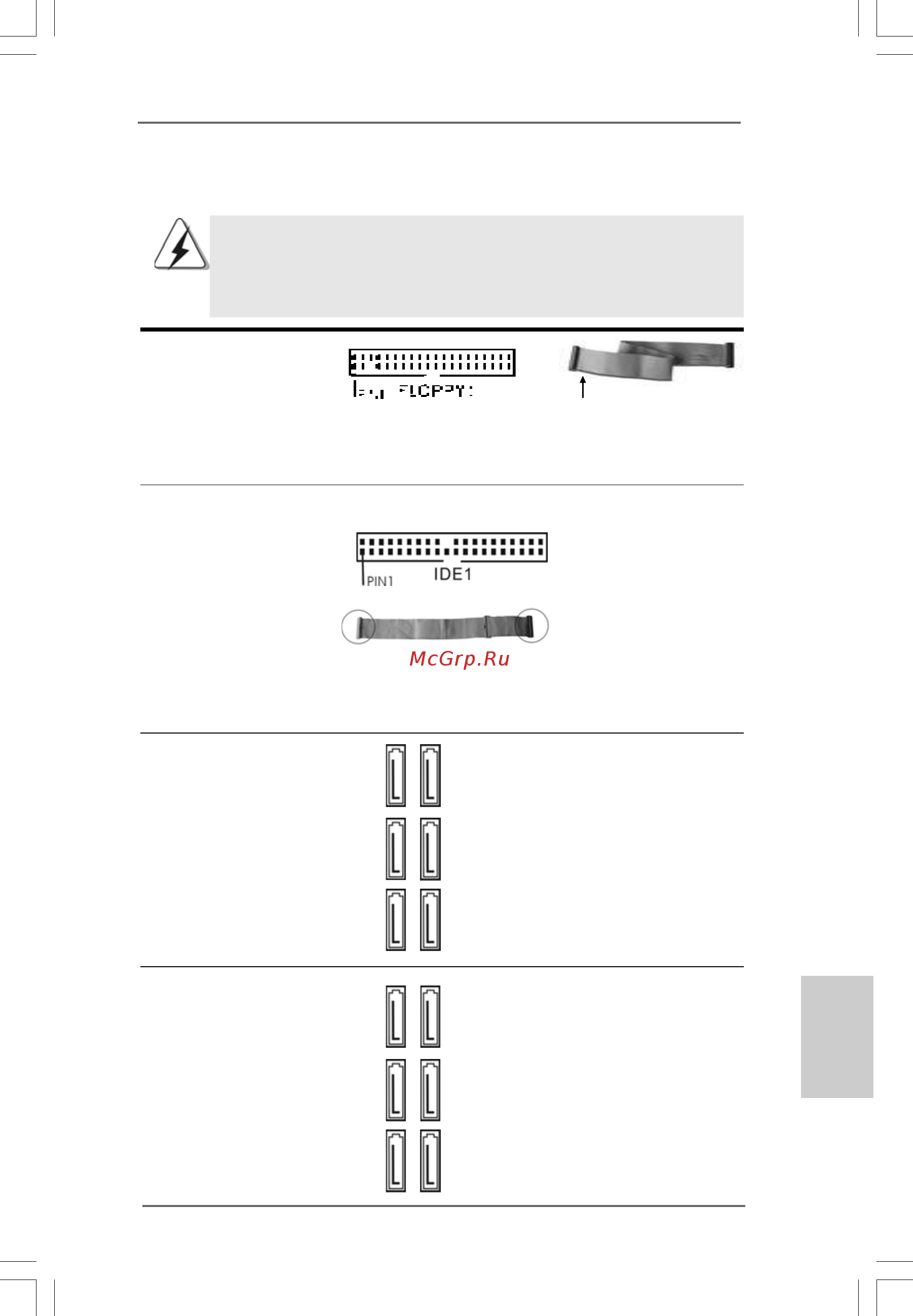

2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
FDD connector
(33-pin FLOPPY1)
(see p.2 No. 30)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.2 No. 8)
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These six Serial ATAII (SATAII)
(SATAII_1_2: see p.2, No. 13) connectors support SATA data
(SATAII_3_4: see p.2, No. 14) cables for internal storage
(SATAII_5_6: see p.2, No. 15) devices. The current SATAII
interface allows up to 3.0 Gb/s
data transfer rate.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100/133 cable
the red-striped side to Pin1
SATAII_5_6 SATAII_3_4 SATAII_1_2
Serial ATA3 Connectors These six Serial ATA3 (SATA3)
(SATA3_1_2: see p.2, No. 10) connectors support SATA data
(SATA3_3_4: see p.2, No. 11) cables for internal storage
(SATA3_5_6: see p.2, No. 12) devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate. If you install
the HDD on the eSATA port on
the rear I/O, the internal
SATA3_6 will not function.
SATA3_5_6 SATA3_3_4 SAT3_1_2
