ASRock X58 Extreme6 Motherboard

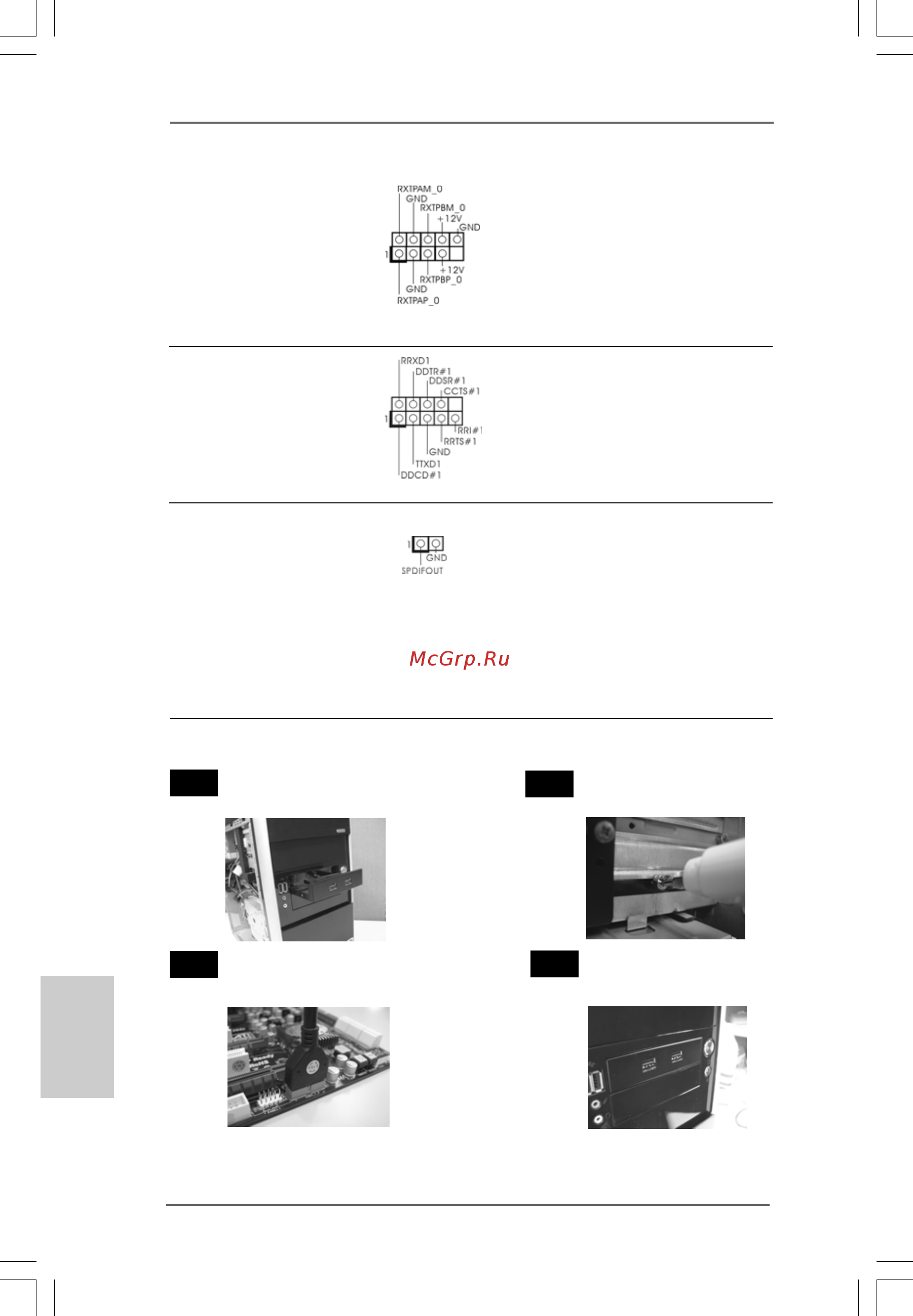

IEEE 1394 Header Besides one default IEEE 1394

(9-pin FRONT_1394) port on the I/O panel, there is one

(see p.2 No. 27) IEEE 1394 header

(FRONT_1394) on this

motherboard. This IEEE 1394

header cansupport one IEEE

1394 port.

Serial port Header This COM1 header supports a

(9-pin COM1) serial port module.

(see p.2 No. 31)

HDMI_SPDIF Header HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA

(see p.2 No. 34) card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

The Installation Guide of Front USB 3.0 PanelThe Installation Guide of Front USB 3.0 Panel

The Installation Guide of Front USB 3.0 Panel

Intall the Front USB 3.0 Panel into the 3.5”

drive bay of the chassis.

Step 1

Step 2

The Front USB 3.0 Panel is ready to use.

Plug the Front USB 3.0 cable into the USB 3.0

header (USB3_1_2) on the motherboard.

Step 3

Step 4

Screw the Front USB 3.0 Panel to the

drive bay.
