ASRock Fatal1ty Z77 Professional-M [132/245] Русский
![ASRock Fatal1ty Z77 Professional-M [132/245] Русский](/views2/1687535/page132/bg84.png)
132
Fatal1ty Z77 Professional-M Series Motherboard
Русский

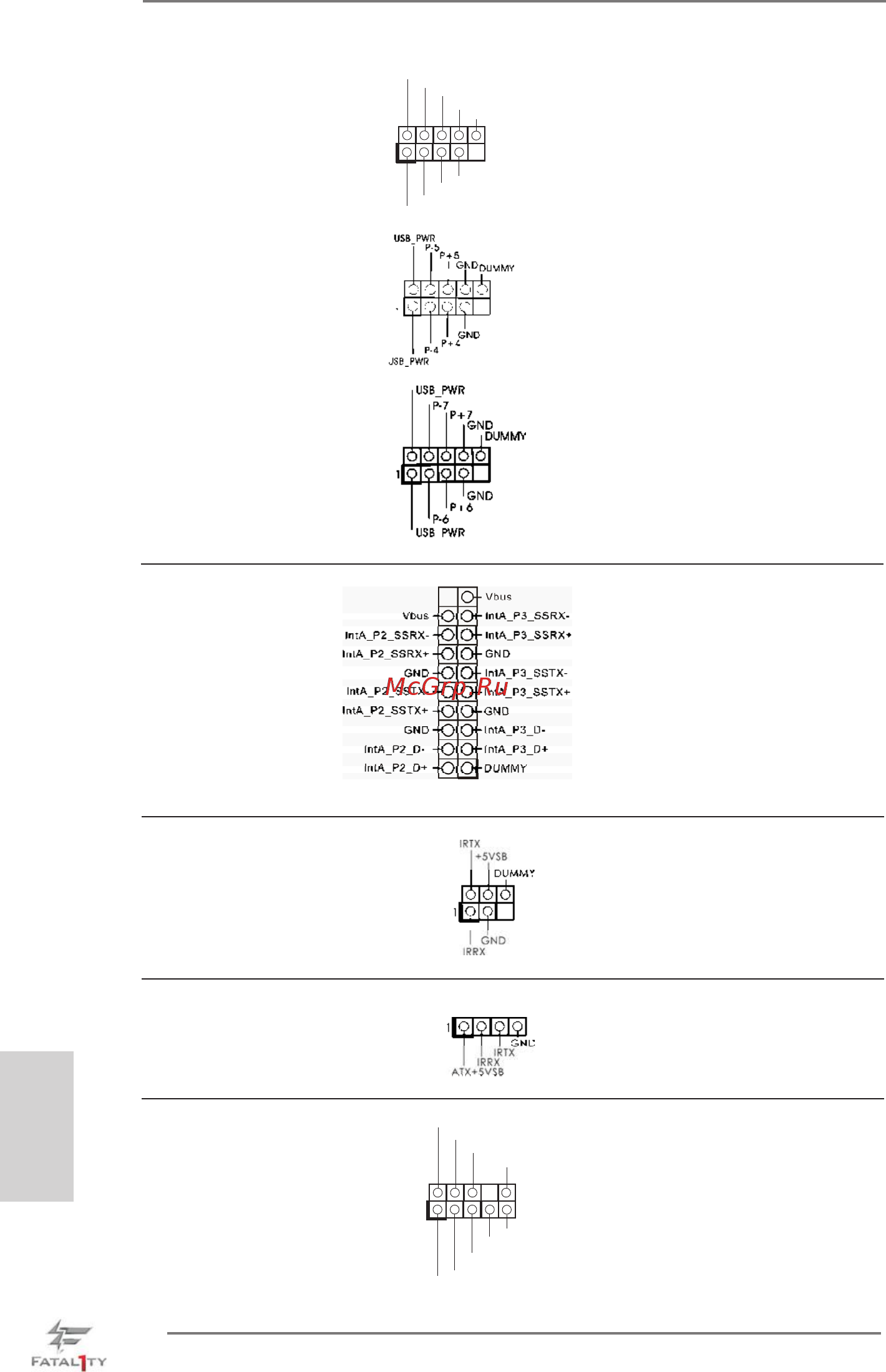

Колодка USB 3.0 Помимо четыре стандартных
(19-контактный USB3_2_3)
портов USB 3.0 на панели ввода-
(см. стр. 4, п. 9)
вывода, на данной материнской
плате предусмотрен один разъем
USB 3.0. Этот разъем USB 3.0
поддерживает два порта USB 3.0.
Колодка инфракрасного модуля Данная колодка позволяет
(5-контактный IR1)
подключить дополнительный
(см. стр. 4, п. 28)
модуль беспроводного
инфракрасного
приемопередатчика.
Колодка USB 2.0 Помимо два стандартных
(9-контактный USB_2_3)
портов USB 2.0 на панели ввода-
(см. стр. 4, п. 23)
вывода, на данной материнской
плате предусмотрено три разъема
USB 2.0. Каждый разъем USB 2.0
поддерживает два порта USB 2.0.
(9-контактный USB_4_5)
(см. стр. 4, п. 24)
(9-контактный USB_6_7)
(см. стр. 4, п. 25)
J _S EN SE
O UT 2_ L
1
M IC _R ET
P RE SE NC E#
GND
O UT 2_ R
M IC 2_ R
M IC 2_ L
OUT_RET
Аудиоразъем передней Этот интерфейс предназначен
панели для присоединения аудиокабеля
(9-контактный HD_AUDIO1)
передней панели,
(см. cтр. 4, п. 30)
обеспечивающего удобное
подключение аудиоустройств и
управление ими.
1
U SB _P WR
P-2
GND
DUMMY
U SB _P WR
P +2
GND
P-3
P +3
Датчик пользовательского инфракрасного модуля Датчик можно использовать для
(4-контактный CIR1)
подключения дистанционный
(см. стр. 4, п. 26)
приемник.
