Fatal1ty Z77 Professional-M Series Motherboard
37
English

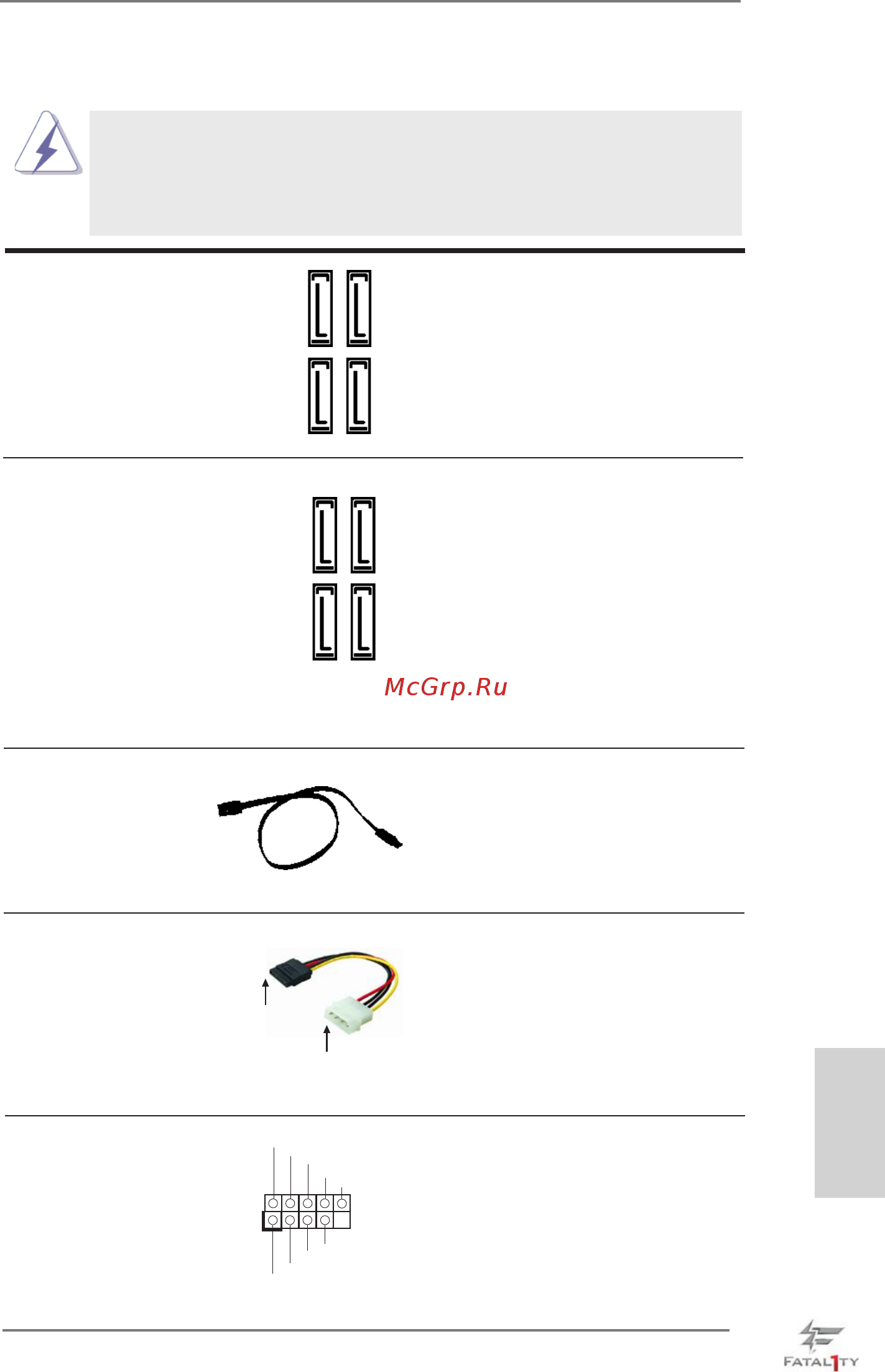

2.12 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These four Serial ATA2 (SATA2)
(SATA2_2_3: see p.4, No. 12)
connectors support SATA data
(SATA2_4_5: see p.4, No. 13)
cables for internal storage
devices. The current SATA2
interface allows up to 3.0 Gb/s
data transfer rate.
SATA2_4 SATA2_5
SATA2_2 SATA2_3
SATA3_A1 SATA3_A2
SATA3_0 SATA3_1
Serial ATA3 Connectors These four Serial ATA3 (SATA3)
(SATA3_A1_A2: see p.4, No. 10)
connectors support SATA data
(SATA3_0_1: see p.4, No. 11)
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate. If the eSATA3
port on the rear I/O has been
connected, the internal
SATA3_A2 will not function.
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA / SATA2 / SATA3 hard
disk or the SATA2 / SATA3
connector on this motherboard.
Serial ATA (SATA) Please connect the black end
Power Cable of SATA power cable to the
(Optional)
power connector on each drive.
Then connect the white end of
SATA power cable to the power
connector of the power supply.
connect to the
power supply
connect to the SATA
HDD power connector
USB 2.0 Headers Besides two default USB 2.0
(9-pin USB_2_3)
ports on the I/O panel, there are
(see p.4, No. 23)
three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
1
U SB_PWR
P-2
GND
DUMMY
U SB_PWR
P +2
GND
P-3
P +3
