166
Fatal1ty Z77 Professional-M Series Motherboard
Türkçe

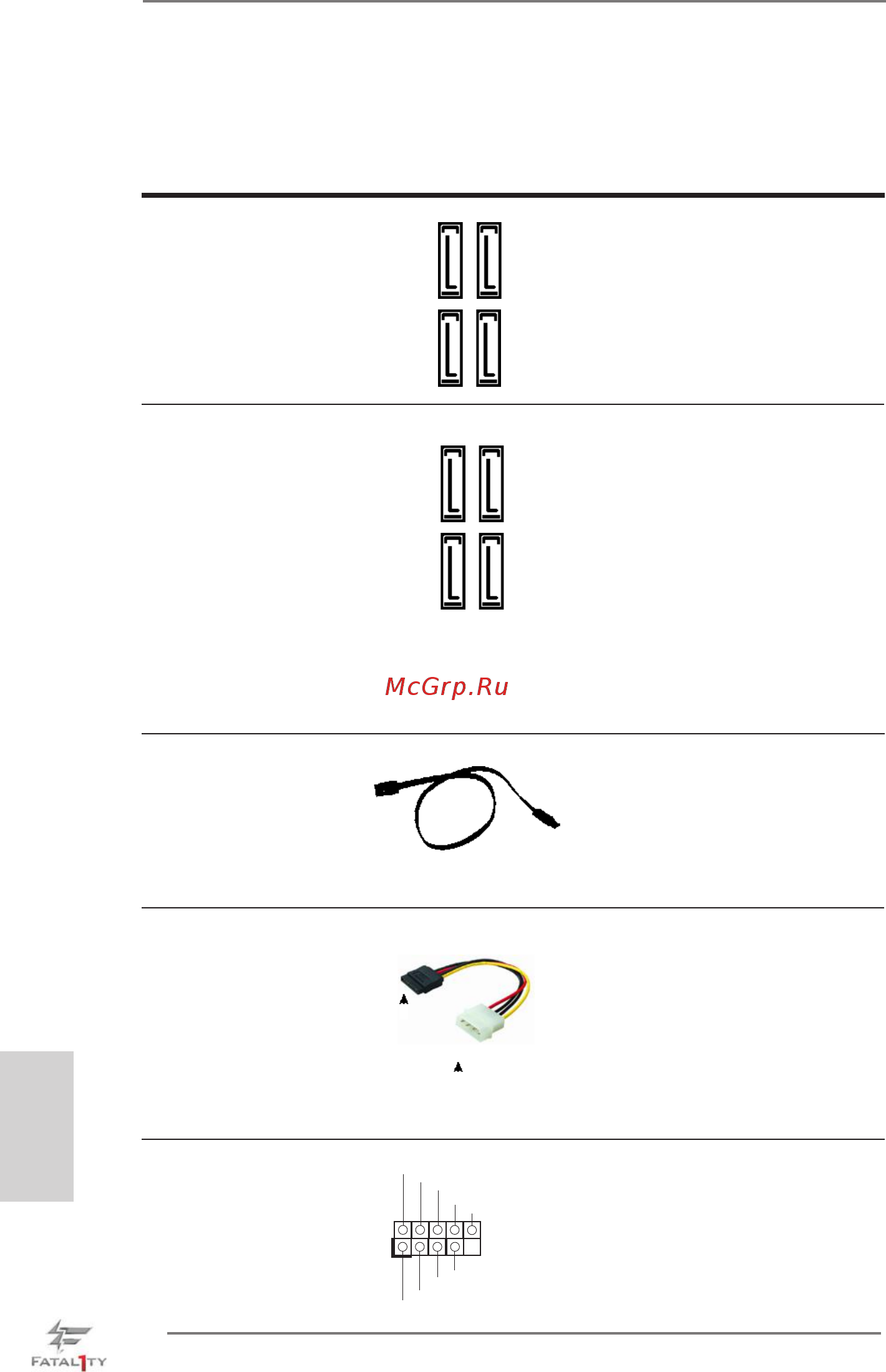

1.4 Yerleşik Fişler ve Konektörler
Yerleşik şler ve konektörler jumper DEĞİLDİR. Bu şlerin ve konektörlerin üzerine
jumper kapakları YERLEŞTİRMEYİN. Fişlerin ve konektörlerin üzerine jumper
kapakları yerleştirmek anakartın kalıcı olarak zarar görmesine neden olabilir!
Seri ATA2 Konektörler Bu dört Seri ATA2 (SATA2)
(SATA2_2_3: bkz. s.4, No. 12)
konektör, dahili depolama
(SATA2_4_5: bkz. s.4, No. 13)
cihazları için SATA veri
kablolarını destekler. Geçerli
SATA2 arayüzü 3,0 Gb/sn veri
aktarım hızına izin verir.
Seri ATA3 Konektörler Bu dört Seri ATA3 (SATA3)
(SATA3_A1_A2: bkz. s.4, No. 10)
konektör, dahili depolama
(SATA3_0_1: bkz. s.4, No. 11)
cihazları için SATA veri
kablolarını destekler. Geçerli
SATA3 arayüzü 6,0 Gb/sn veri
aktarım hızına izin verir. Arka
I/O’daki eSATA3 bağlantı
noktasındaki HDD’yi yüklemek
isterseniz, dahili SATA3_A2
çalışmayacaktır.
Seri ATA (SATA) SATA veri kablosunu her iki ucu
Veri Kablosu da SATA / SATA2 / SATA3 sabit
(İsteğe bağlı)
diskine veya anakarttaki
SATA2 / SATA3 konektörüne
bağlanabilir.
USB 2.0 Fişleri G/Ç panelindeki varsayılan iki
(9-pinli USB_2_3)
USB 2.0 portundan başka, bu
(bkz. s.4 No. 23)
anakartta üç USB 2.0 şi
bulunur. Her USB 2.0 şi iki
USB 2.0 portunu destekler.
SATA2_4 SATA2_5
SATA2_2 SATA2_3
SATA3_A1 SATA3_A2
SATA3_0 SATA3_1
1
U SB _P WR
P-2
GND
DUMMY
U SB _P WR
P +2
GND
P-3
P +3
SATA HDD güç konektörüne
bağlama
güç kaynağına bağlama
Seri ATA (SATA) Güç Kablosu Lütfen SATA güç kablosunun
(İsteğe bağlı)
siyah ucunu her sürücüde
bulunan güç konektörüne
bağlayın. Sonra, SATA güç
kablosunun beyaz ucunu güç
kaynağının güç konektörüne
bağlayın.
