Fatal1ty Z77 Professional-M Series Motherboard
169
Türkçe

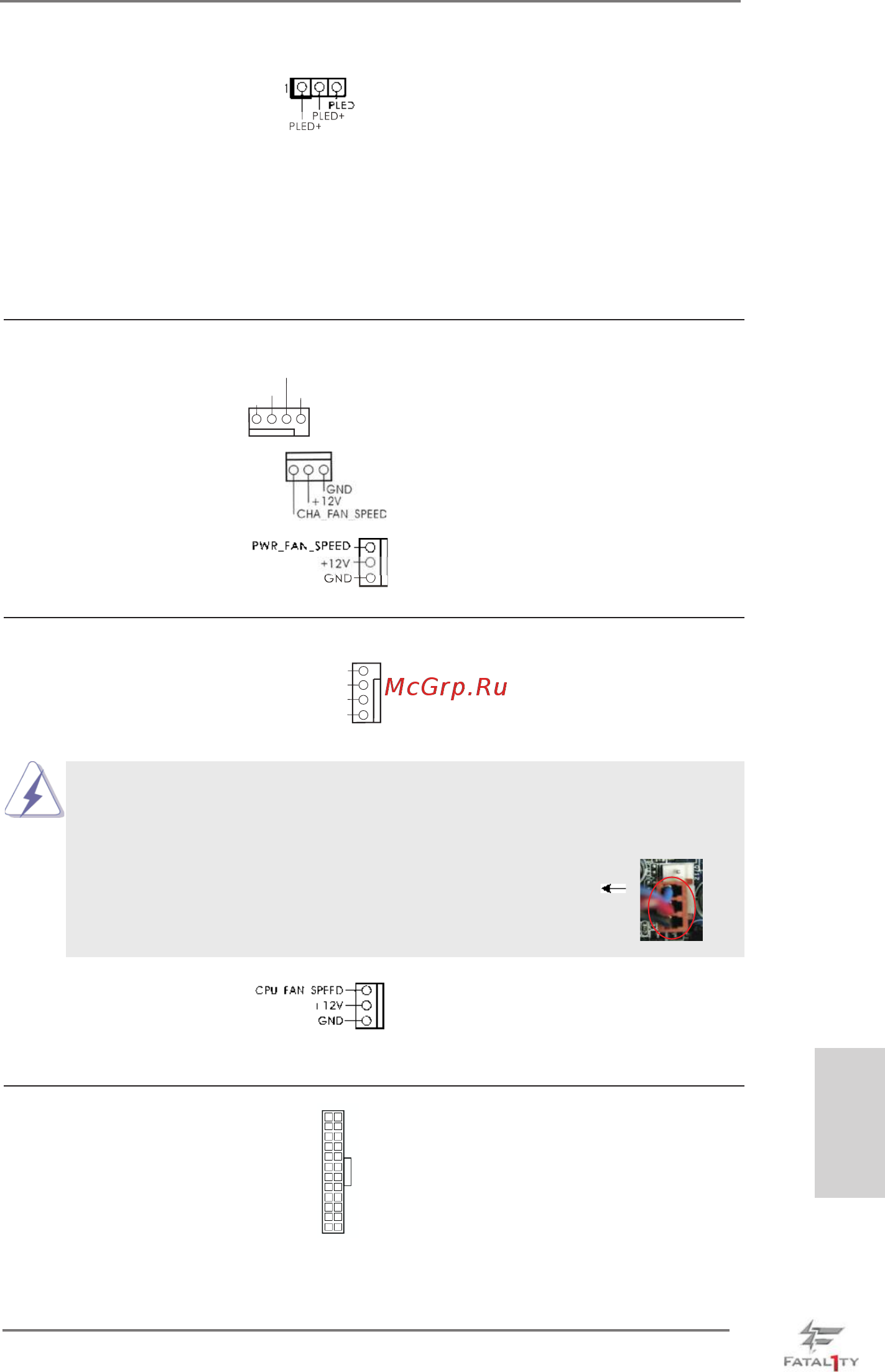

Güç LED’i Fişi Sistem gücü durumunu
(3-pinli PLED1)
belirtmek için lütfen kasa güç
(bkz. s.4 No. 14)
LED’ini bu şe bağlayın. Sistem
çalışırken LED açıktır. LED S1/
S3 durumunda yanıp sönmeye
devam eder. LED S3/S4
durumunda veya S5 durumun
da (güç kapalı) kapalıdır.
Kasa/güç Fan Konektörü Lütfen kasa fan kablolarını
(4-pinli CHA_FAN1)
fanına bu konektöre bağlayın
(bkz. s.4 No. 21)
ve siyah kabloyu toprak pinine
bağlayın. CHA_FAN1 ve
(3-pinli CHA_FAN2)
CHA_FAN2 destekli Fan
(bkz. s.4 No. 37)
Denetimi.
(3-pinli PWR_FAN1)
(bkz. s.4 No. 36)
CPU Fan Konektörü Lütfen fan kablolarını CPU
4-pinli CPU_FAN1)
fanına bu konektöre bağlayın ve
(bkz. s.4 No. 3)
siyah kabloyu toprak pinine
bağlayın.
GN D
+ 12V
CPU_FAN_SPEED
FAN_SPEED_CONT ROL
4
3
2
1
3-Pinli Fanı Takma
Bu anakart 4-Pinli CPU fan (Sessiz Fan) desteği sağlasa da, 3-Pinli CPU
fan hızı kontrol işlevi olmadan bile hala başarılı bir şekilde çalışabilir.
3-Pinli CPU fanı bu konektördeki CPU fan konektörüne bağlamayı
planlıyorsanız, lütfen Pin 1-3'e bağlayın.
Pin 1-3 Bağlı
(3-pinli CPU_FAN2)
(bkz. s.4 No. 4)
ATX Güç Konektörü Lütfen bir ATX güç kaynağını
(24-pinli ATXPWR1)
bu konektöre bağlayın.
(bkz. s.4 No. 7)
12
1
24
13
GN D
+1 2 V
CH A _FAN_SPEED
FA N _SPEED_CONTROL
