Operation Manual SiENBE81-623A
20 Photocatalytic Air Purifiers
9
CAUTION

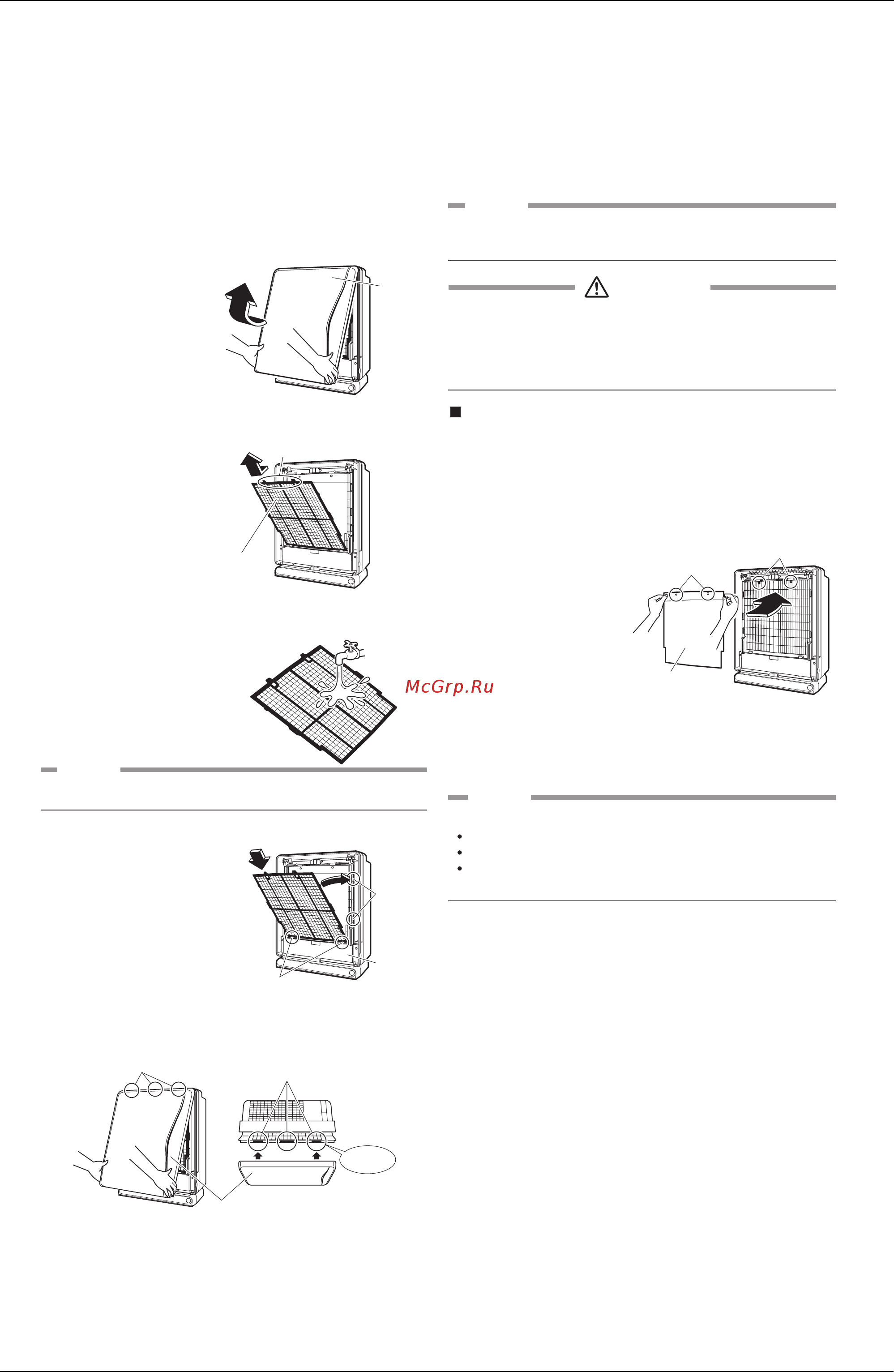

Care and Cleaning
! Cleaning the pre-filter
It is recommended to clean the pre-filter every two weeks.
1. Remove the front panel.
• Lay your finger to the
dent at bottom of the
main unit, hold bottom
part of the panel and
then pull it up.
2. Remove the pre-filter.
• Remove by pulling out in
front while holding the
tabs on top of the pre-
filter.
3. Clean the pre-filter.
• After using a vacuum
cleaner to remove any
dust, clean with water.
• If it is very dirty, use a
soft brush or a neutral
cleaner to clean then dry
well in the shade.
Front
panel
Pull out in front to remove.
Pre-filter
NOTE
• “Cleaning sign” may blink if any droplet remains.
4. Install the pre-filter in its original position.
• Hook the bottom part of
the pre-filter on the
bottom hooks
(2 locations) of the
plasma ionizer and then
insert it into the left and
right hooks (4 locations).
Hooks
(2 locations)
Left and
right
hooks
(4 locations)
Plasma
ionizer
5. Restore the front panel.
• Hook the top hooks (3 locations) of the front panel on the grooves
on top of the main unit and then close the panel.
Top hooks (3 locations)
Top grooves (3 locations)
Hook
Overhead view
Front panel
NOTE
• Securely close the panel. Failing to do so may cause activation of
the safety switch and out of unit operation.
• Do not dry at a location directly exposed to the sun.
• Do not clean with water hotter than 50°C.
• Do not burn with fire.Color changes or deformation may occur and
the unit may become unusable.
Replacing the bio-antibody filter
(The bio-antibody filter should be replaced
around once a year.)
1. Remove the front panel. (See the left figure.)
2. Remove the pre-filter. (See the left figure.)
3. Replace the bio-antibody filter with new one.
• Remove a used
bio-antibody filter from the
hooks (2 locations) on top
of the plasma ionizer.
• Hook the holes (2
locations) of a new
bio-antibody filter on the
hooks (2 locations) on top
of the plasma ionizer.
Holes
(2 locations)
Top hooks (2 locations)
Bio-antibody filter
NOTE
Replacing the bio-antibody filter
Contact your dealer for replacement bio-antibody filter.
Life of the bio-antibody filter is about 1 year after opening.
If you do not use the bio-antibody filter for a long time, store it away
from direct sunlight without opening.
4. Install the pre-filter in its original position.
(See the left figure.)
5. Restore the front panel. (See the left figure.)
