Photocatalytic Air Purifiers 35
SiENBE81-623A Removal Procedure
7. Removal Procedure
7.1 Removal of the Front Panel / Filters
Warning Be sure to wait 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure Points

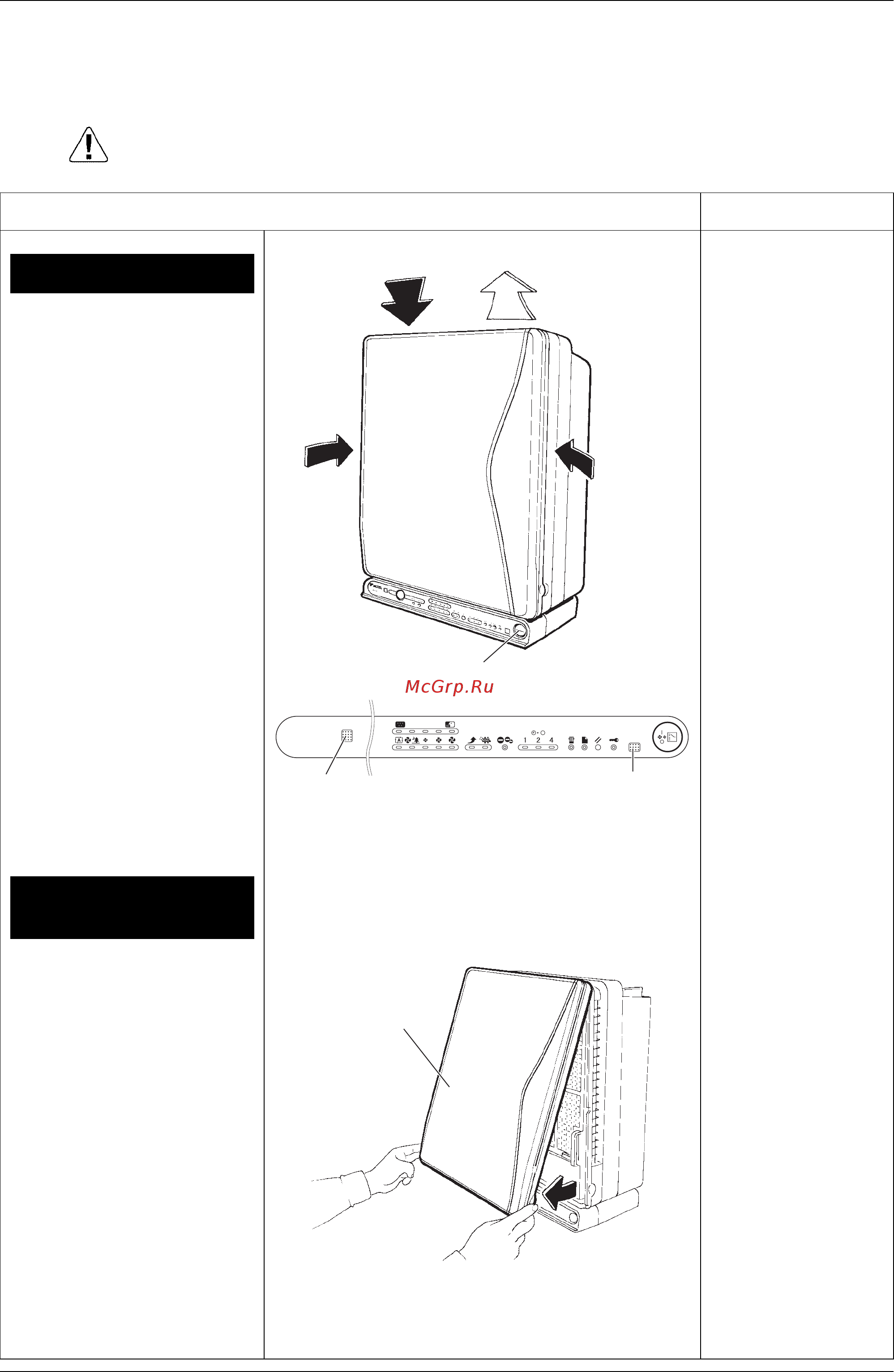

1. Appearance
2. Removing the front
panel
* The upper part of the
panel is roundish.
When assembling, slide
the panel in upright
position for easy installa-
tion.
(1) Hold both sides of
the front panel and
pull out the panel
toward yourself.
Rear topside
ON/OFF button
Dust sensor
Odor sensor
Front panel
