Daikin MC707VM-W [47/61] Removal of lonizing wire
![Daikin MC707VM-W [47/61] Removal of lonizing wire](/views2/1694146/page47/bg2f.png)
46 Photocatalytic Air Purifiers
Removal Procedure SiENBE81-623A
7.3 Removal of lonizing Wire
Warning Be sure to wait 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure Points
Part A

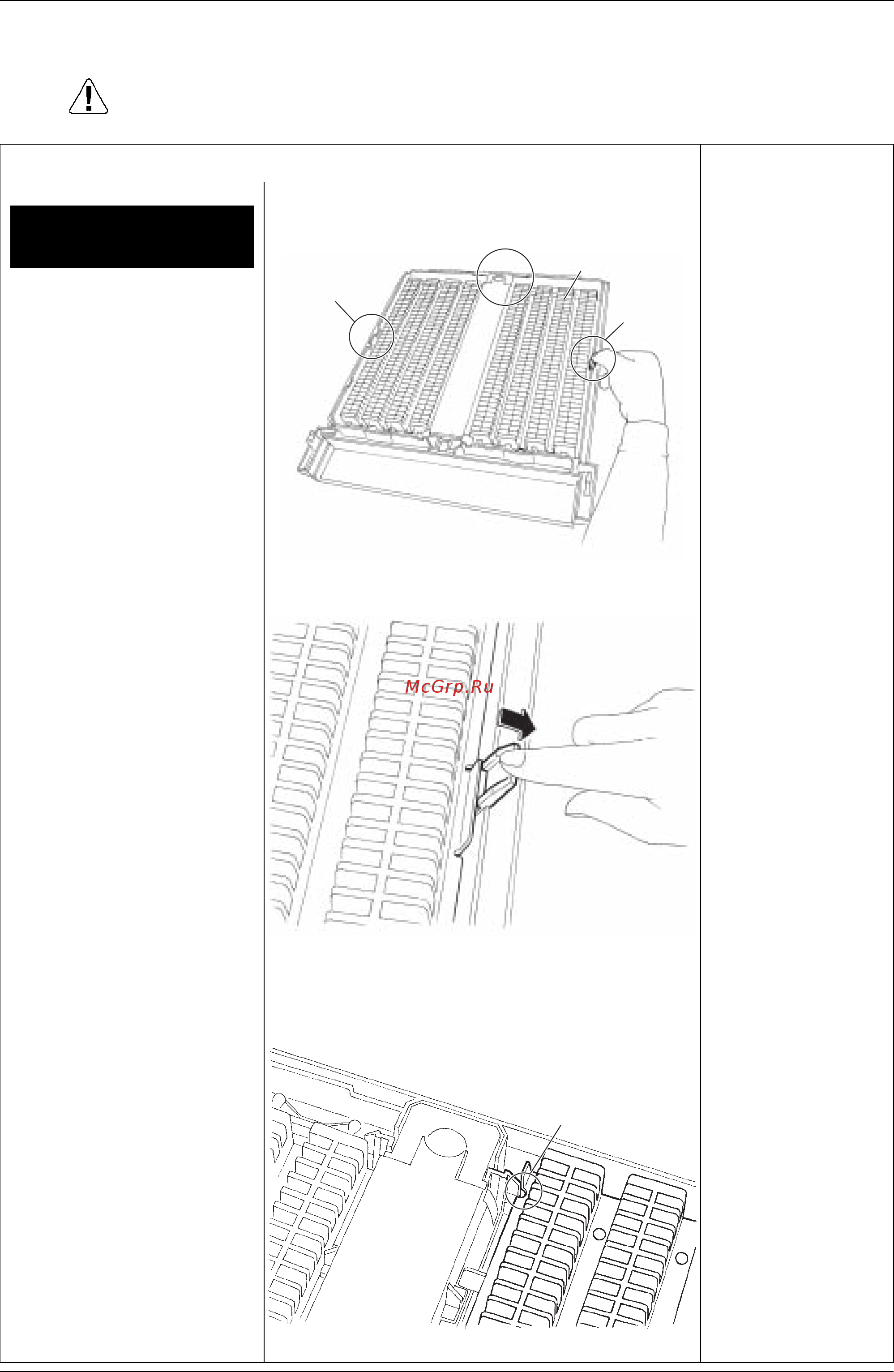

1. Removing the
counter grid
(1) Undo the outer hook
and lift the counter
grid to detach.
(2) Zoomed up view of
part A.
Part A
* When assembling, fit the
position in the groove.
Counter grid
Hook
Hook
Groove
