48 Photocatalytic Air Purifiers
Removal Procedure SiENBE81-623A
7.4 Removal of Fan Motor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure Points

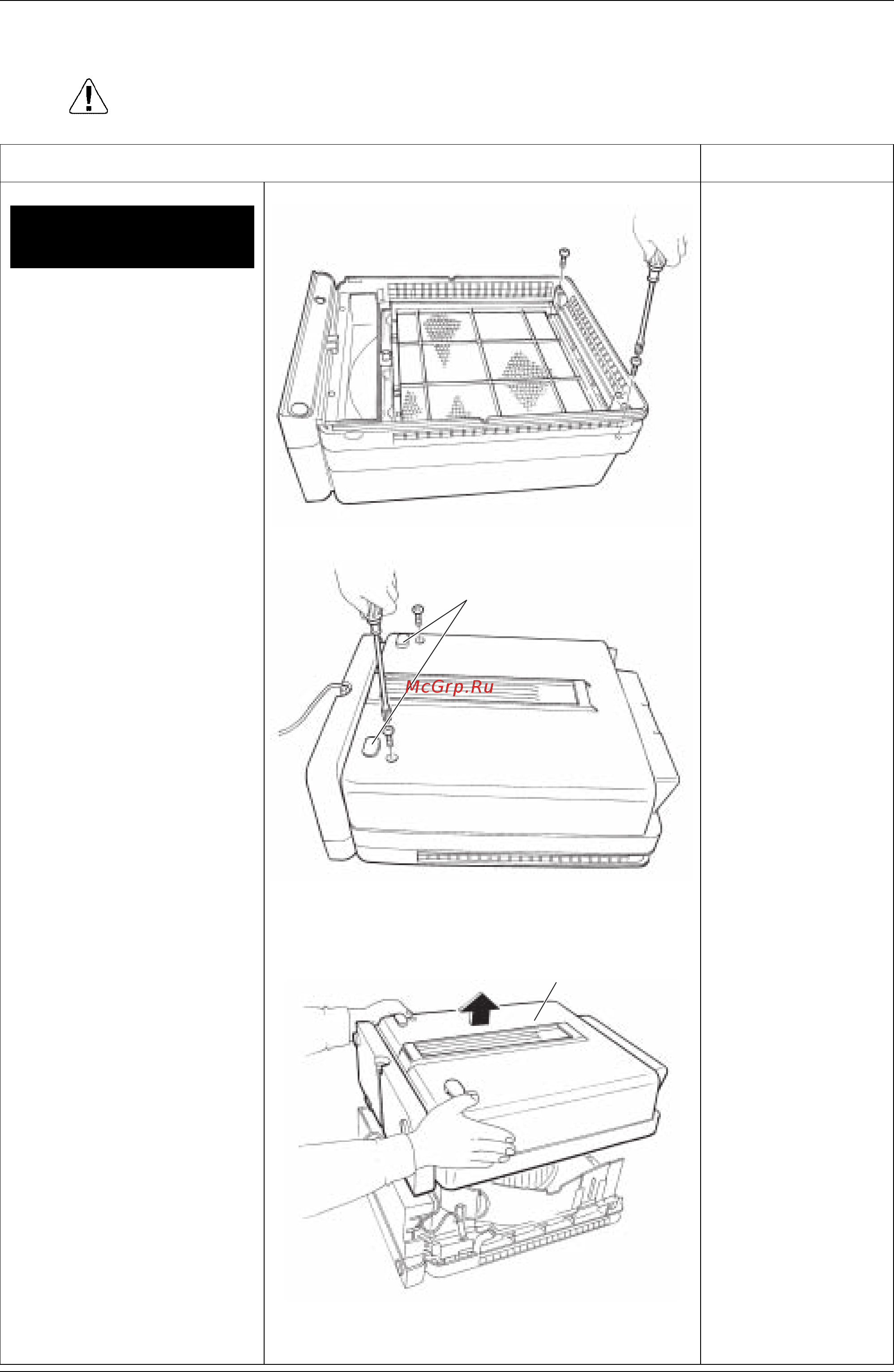

1. Removing the back
cover
(1) Remove the 2 screws
from the front top.
* Point
Note that the screws are
provided deep at the
front.
(2) Remove the 2 screws
from the back cover.
(3) Lift and detach the
back cover from the
main body.
Hooks for power supply cord
Back cover
