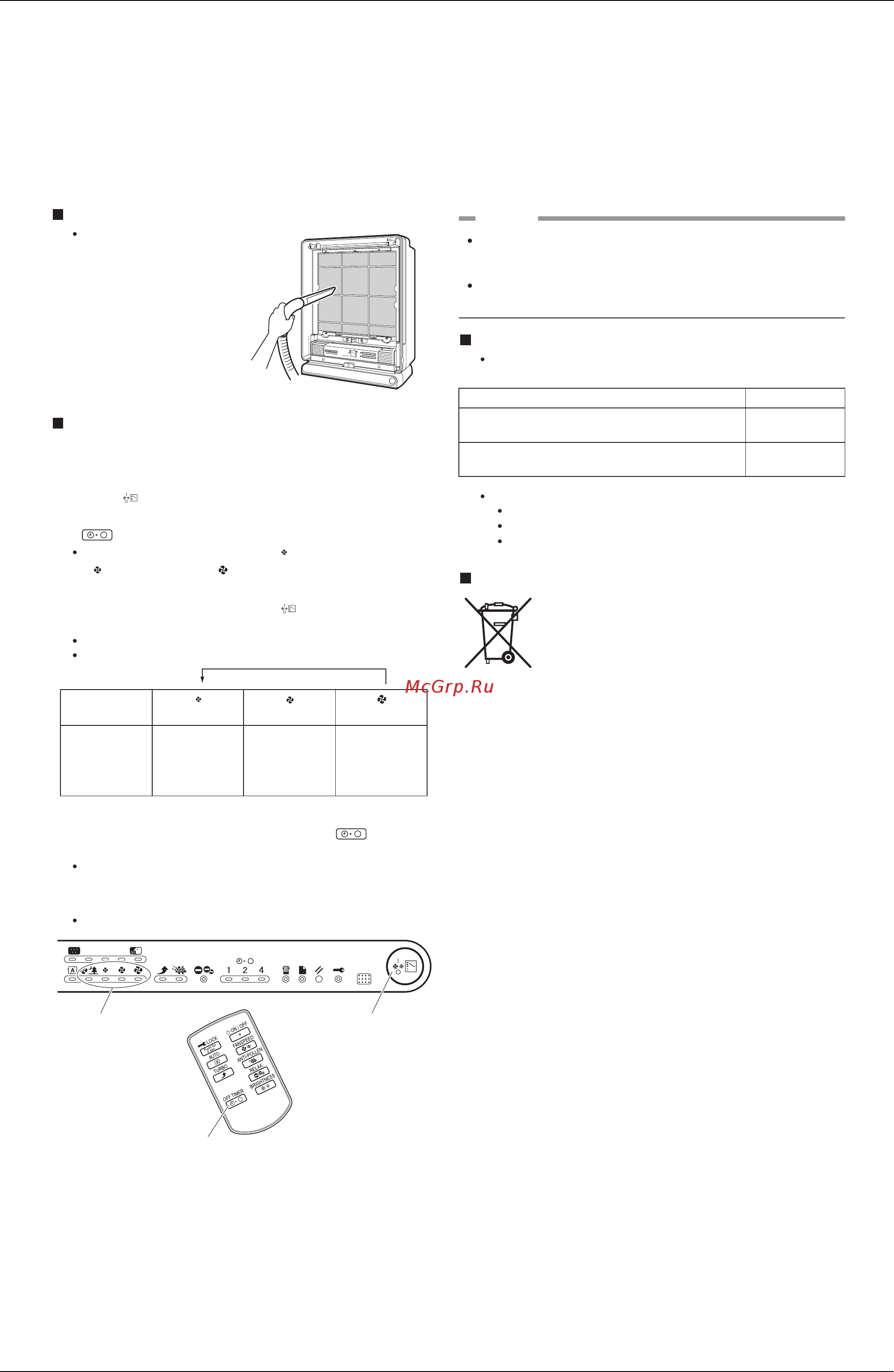

Operation Manual SiENBE81-623A
26 Photocatalytic Air Purifiers
15
Optional accessories
“ ” “ ” “ ”
Care and Cleaning
Cleaning the deodorization catalytic unit
Vacuum dusts with a
cleaner without
removing from the
main unit.
(Do not wash.)
Sensitivity settings of the dust sensor
The sensitivity of the sensor differs depending on the size of
room, installation place, and type of dirt.
Change the sensor sensitivity if you don’t like it.
Press “ ” on the main unit for 10 seconds with the
remote control pointed at the main unit while holding
“ ” .
The receiving tone sounds, one of “ ” L (Low),
“ ” M (Standard) and “ ” H (High) lamps blinks for 5 seconds,
and then the lamp corresponding to the set sensitivity turns on.
Change the settings using the “ ” [Operation switch/
Stop] button of the main unit.
Switches each time it is pressed.
The settings is shown in the airflow rate indicator.
Airflow speed
display
L (Low)
M (Standard)
H (High)
Dust sensor
sensitivity
Normal
(setting when
shipped)
Low
(Sensor display
will have difficulty
coming on.)
When you decide on the settings, point the remote
control at the main unit and press the “ ”
[OFF TIMER] button.
The receive sound will beep and the setting lamp will flash.
1.
2.
3.
4.
Unplug the power plug one time and then after
3 seconds or more plug it in again.
This completes the settings.
Airflow rate indicator
Operation switch /
stop button
Off timer button
High
(Sensor display
becomes easy
to light.)
NOTE
If the operation of 4. is not performed, the unit will not return to
normal operation mode. If the operation of 4. is performed, during
the settings, the settings will not be correct.
When the sensitivity is set high, it will become difficult for the sensor
lamp to go out.
For replacement pleated filter and bio-antibody filter, contact your
dealer.
Part name Part number
Pleated filter
(7 sheets)
Bio-antibody filter
(1 sheet)
KAC972A4E
KAF972A4E
If used with dirty parts;
Cannot obtain air clean effect.
Cannot obtain deodorization effect.
Odor may arise.
Disposal requirements
Yo ur Daikin product is marked with this symbol. This
means that electrical and electronic products shall not
be mixed with unsorted household waste.
Disposal of this product must be done in accordance
with relevant local and national legislation. By disposing
of this product correctly, you will help ensure its proper
treatment, recovery and recycling, thus
preventing
potential negative consequences for the environment and human
health. Please contact your local authority for more information.
Batteries must be removed from the remote control and disposed of
separately in accordance with relevant local and national legislation.
