Operation Manual SiENBE81-623A
24 Photocatalytic Air Purifiers
13
:

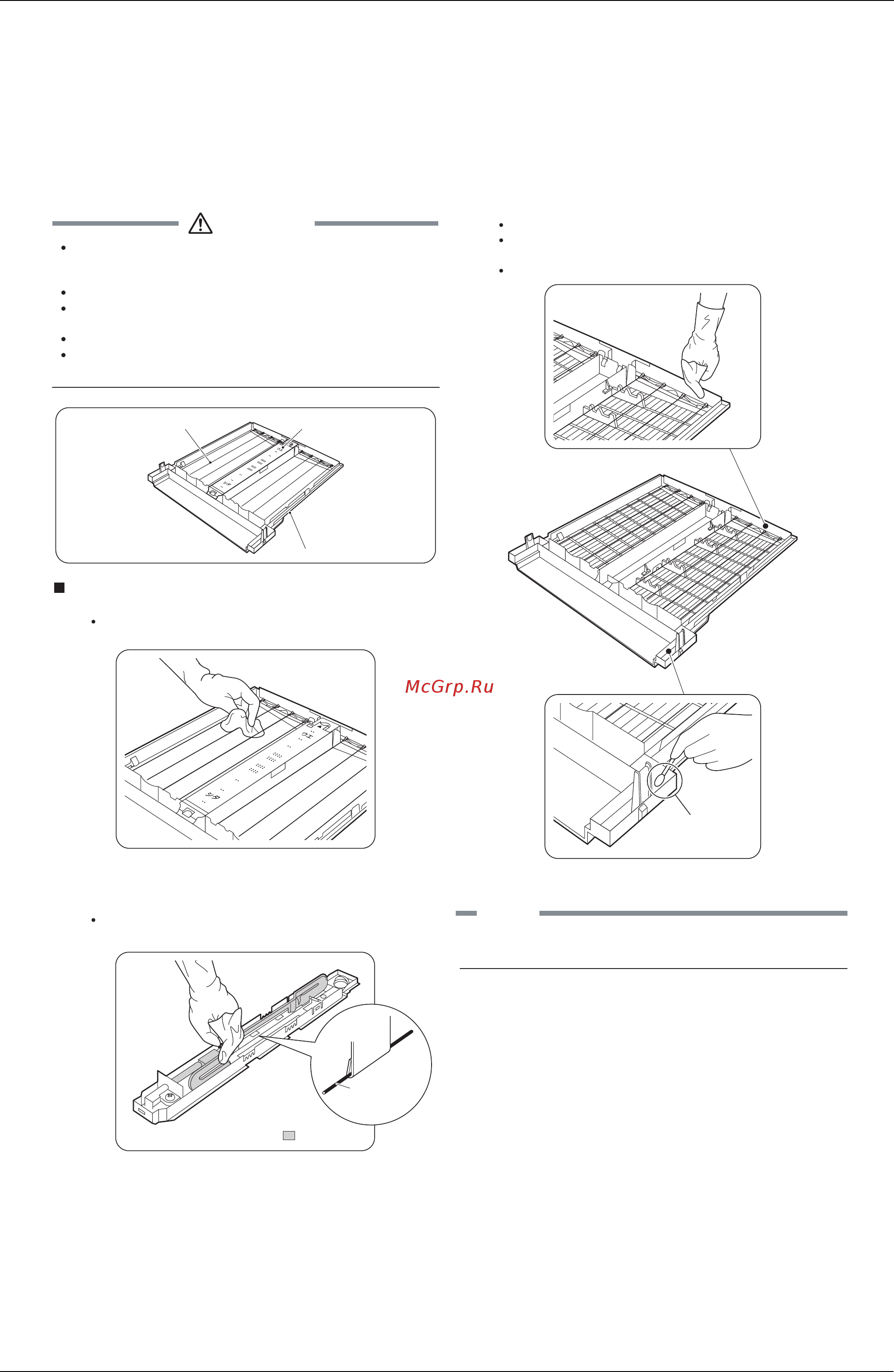

Care and Cleaning
CAUTION
When cleaning the unit, be careful not to cut your hands with the
opposing pole plate or ionizer wires.
(It is safer to use rubber gloves.)
When cleaning the unit, be careful not to cut the ionizer wires.
Be sure to do in a shower-proof place such as bathroom or sink in a
kitchen.
Use only specified volume of liquid mild detergent.
Do not use powder detergent or alkaline detergent and scrub with
hard sponge. Distortion or da
mage to the equipment may result.
1) Ionized wire
2) Streamer discharger
3) Ionizing frame
Cleaning the plasma ionizer
1) Ionized wire (8 pieces)
Clean off the ionizer wires and peripheral resin part with a soft
cloth.
* Gently wipe off the ionizer wires.
Pulling hard may cut them.
2) Streamer discharger
Clean off the internal resin part with a soft cloth.
(For removal, see page 11.)
*1 Wipe off only the resin part.
*2 Do not touch the discharge needle.
Bending the needle will reduce
deodorizing performance.
Resin part *1
Discharge
needle
*2
3) Ionizing frame
Clean off the resin part with a soft cloth.
Use a cotton bud to wipe off dirt of odd-shaped area where
your finger does not reach.
Be careful not to leave bits of tissue. Malfunction may result.
Cotton bud
* Use a cotton bud to wipe off dirt
of odd-shaped area.
NOTE
If the ionizer wires are cut;
Replacement is necessary. Contact your dealer.
