36 Photocatalytic Air Purifiers
Removal Procedure SiENBE81-623A
Procedure Points

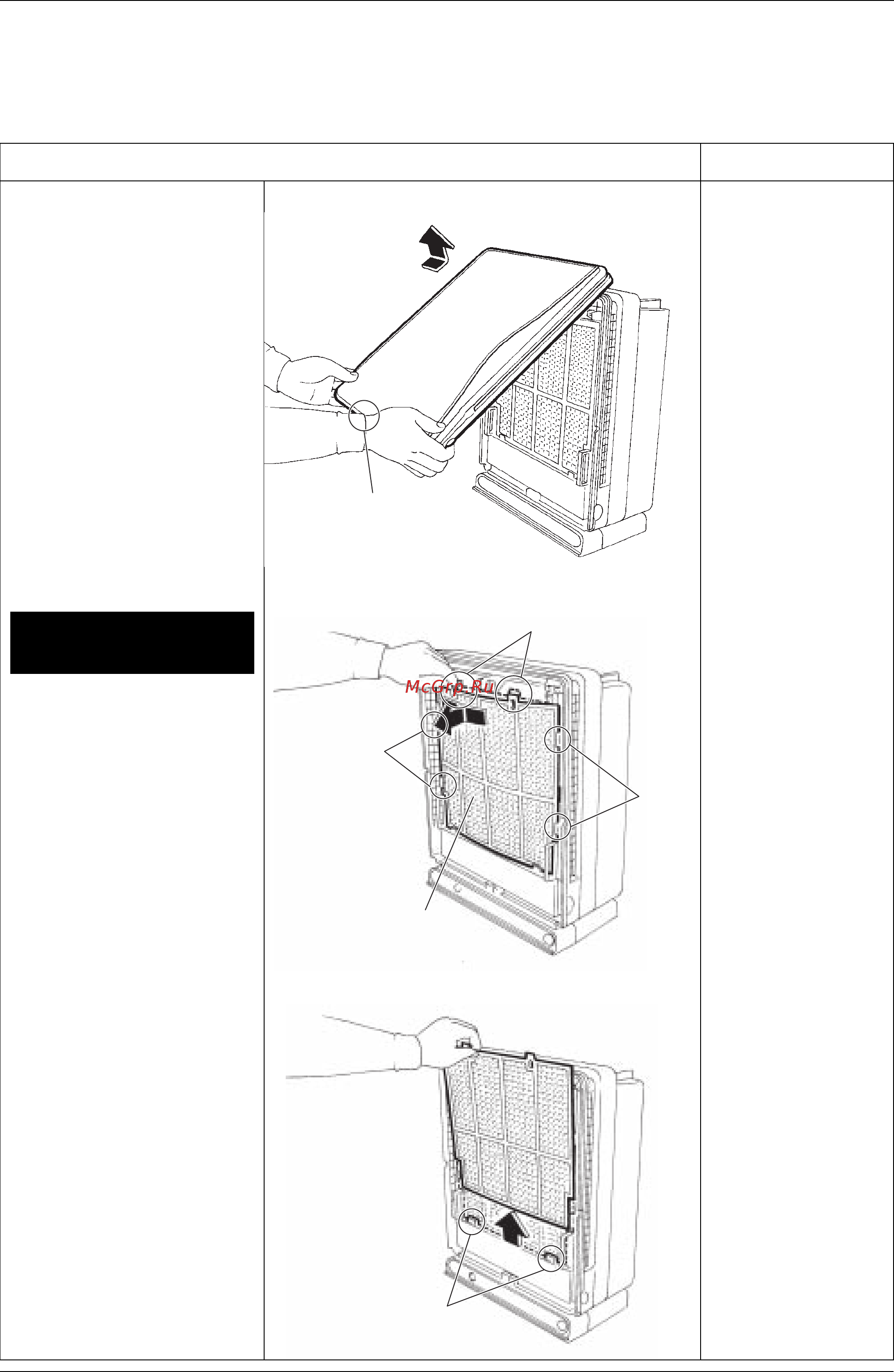

(2) Lift the panel to undo
the hooks. Now
detach the panel.
* The projection at the
back side of the front
panel operates the
safety switch.
Be careful not to trans-
form the projection.
3. Removing the pre-
filter
(1) Bend the pre-filter
slightly and detach
the two upper knobs.
(2) Lift the pre-filter and
release it from the
lower hooks.
* When assembling, catch
the lower hooks first and
then the right and left
hooks.
Projection
(backside)
Knobs
Hooks
Pre-filter
Hooks
Hooks
