Photocatalytic Air Purifiers 47
SiENBE81-623A Removal Procedure
Procedure Points
2. Removing the
ionizing wires
* Once removed, the ion-
izing wires cannot be
reused.
* When cleaning the ioniz-
ing wires, do not remove
them.
(See the Operation
Manual.)
* If the air purifier is used
with the wire cut, the
clean indicator will blink
after 24 hours.

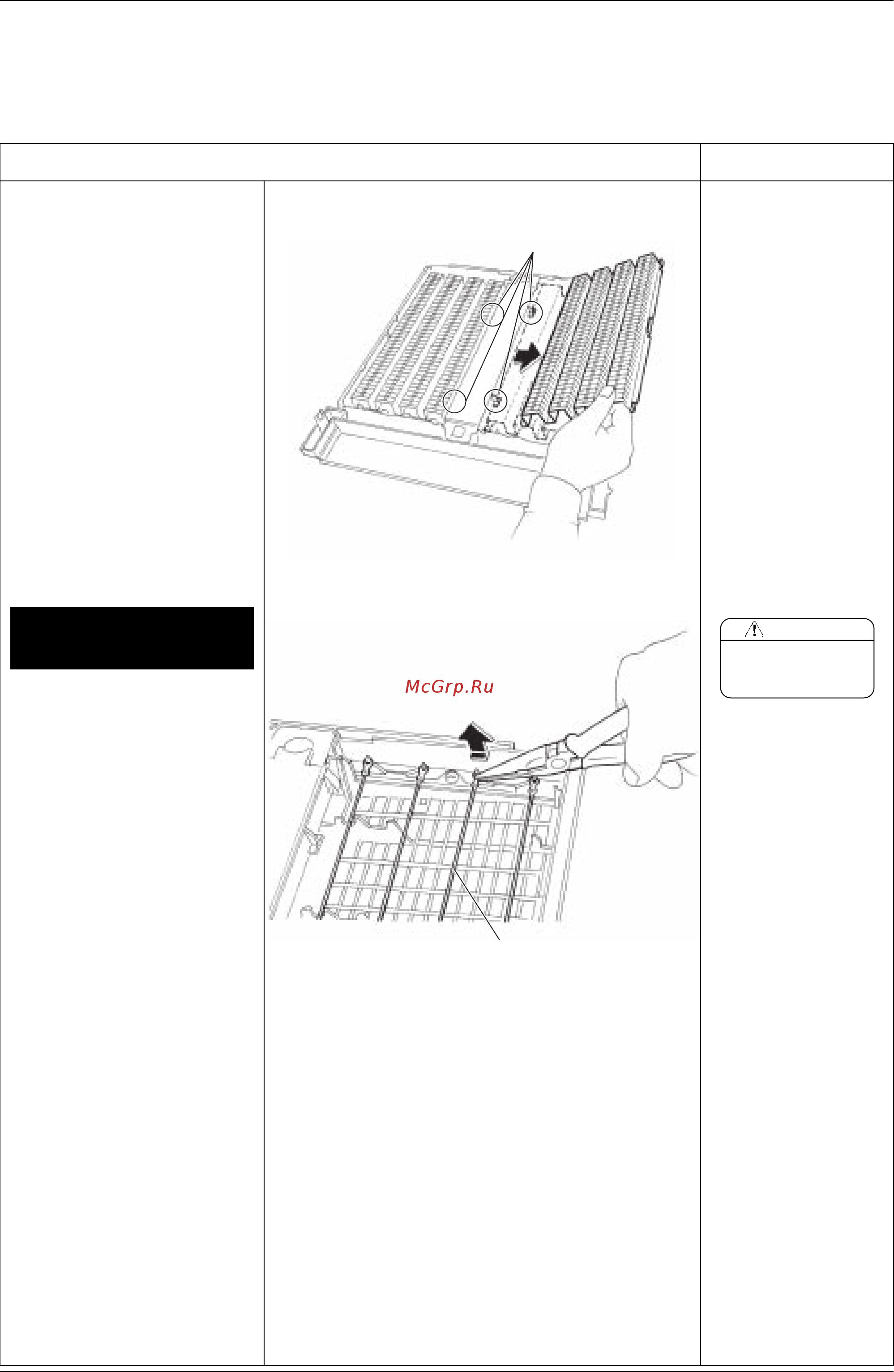

(1) Pinch and detach the
ionizing wires with
pincers.
HookHook
Ionizing wires
CAUTION
Be careful not to get
your hands cut by
the ionizing wires.
