Daikin ACEF4AV1-H [49/64] Removal of fan motor
![Daikin ACEF4AV1-H [49/64] Removal of fan motor](/views2/1694155/page49/bg31.png)
SiE-64 In Case of ACEF4AV1-(C)(H)
Removal Procedure 43

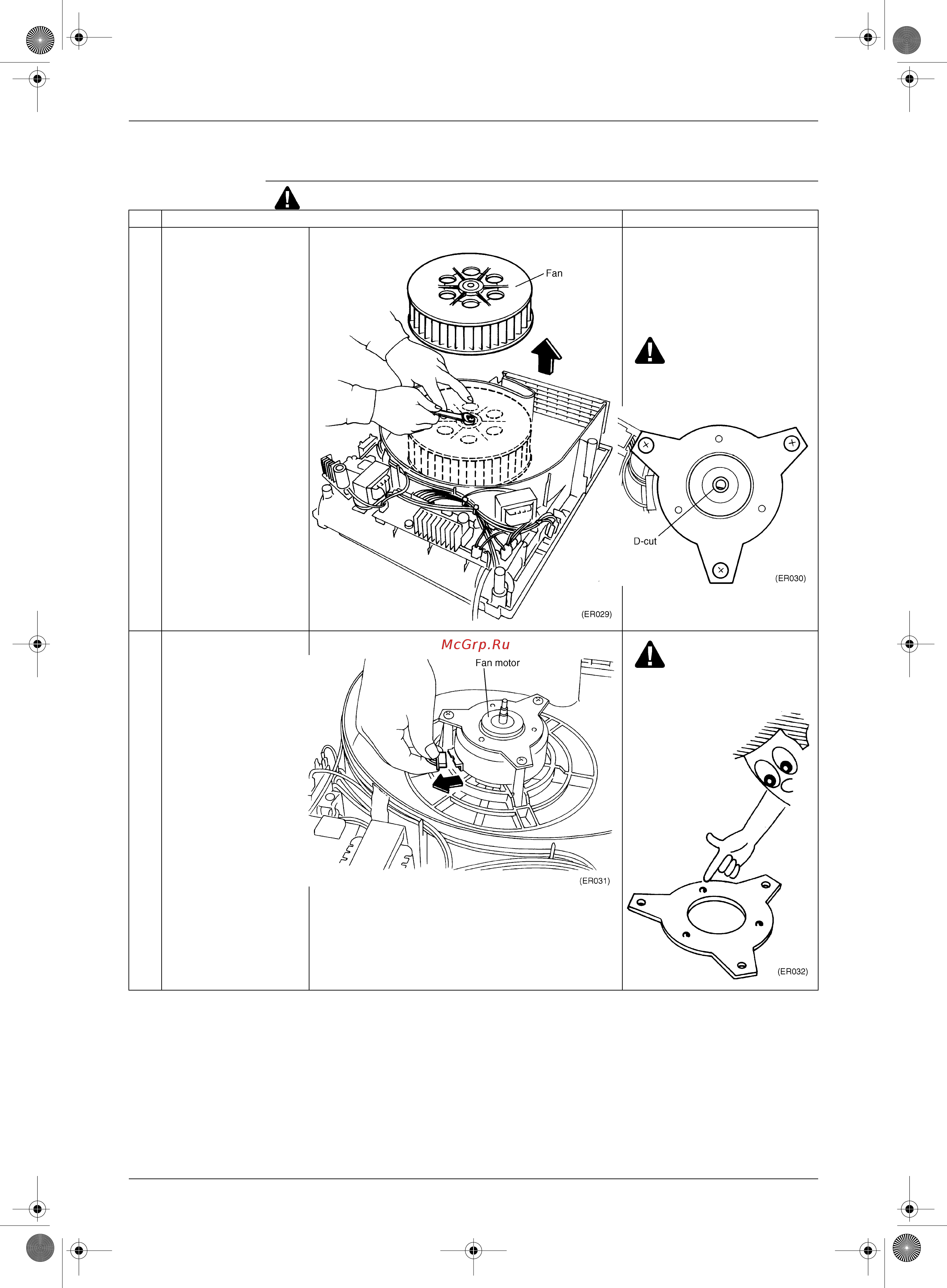

1.5 Removal of Fan Motor
Procedure Warning Be sure to turn off all power supplies before disassembling work
Step Procedure Points
1 Remove back panel to
remove fan securing nut.
Caution
When reassembling fan, match the D-
cut direction of fan and shaft.
2 Disconnect connector.
Caution
When installing motor mounting plate,
put the surface with protrusions up
side.
Si-64.book Page 43 Monday, June 18, 2001 2:57 PM
