15
that have lengthy contact with the ena-
mel surfaces.
* The stainless steel should be washed in
soapy water using a soft cloth. If the
metal is yellowish after washing, we
recommend that you use: lemon, vine-
gar, dilute amonia or a cleaning product
that contains dilute amonia.
* When cleaning the appliance with the
burners removed, care should be taken
not to allow liquid or other objects to get
into the injector openings.
* When cleaning, do not use products that
can harm aluminium, such as soda, oil,
etc.
Note: Whenever you replace a burner,
you should check that all of the parts
are properly in place. A part that is not
in the right place can cause poor com-
bustion and/or overheating.
Maintaining the burners
Whenever the gas taps are removed, you
should change the washer that is between
the taps and the supply pipe. The burners
are working properly when their flame is
stable and a greeny-blue colour. If the tip
of the flame is yellow, the burners need to
be cleaned; if the problem persists, contact
the Technical Service.
In order to guarantee the gas installation is
properly sealed and the burners are wor-
king properly, the hob needs to be inspec-
ted by specialised Technical Service per-
sonnel at least once every year.
Note: Any alteration or adjustment nee-
ded by the appliance should be made
by authorised technical personnel.
Operation of models with
electric hotplates
The electric hotplates are controlled by a
switch with seven positions (see fig. 7). To
get different levels of power, all you need
to do is to turn the appropriate knob and
set it to the position you want. On the con-
trol panel, areas are marked (A) that show
(with a circle) the control for each hotplate.
The pan should be placed on the hotplate
before ignition.
The power corresponding to each of the
switch’s positions is as follows:
Hotplate Ø 180 -1500 W.
Switched off
135 W
220 W
300 W
850 W
1150 W
1500 W
Power
0
1
2
3
4
5
6
Control set to

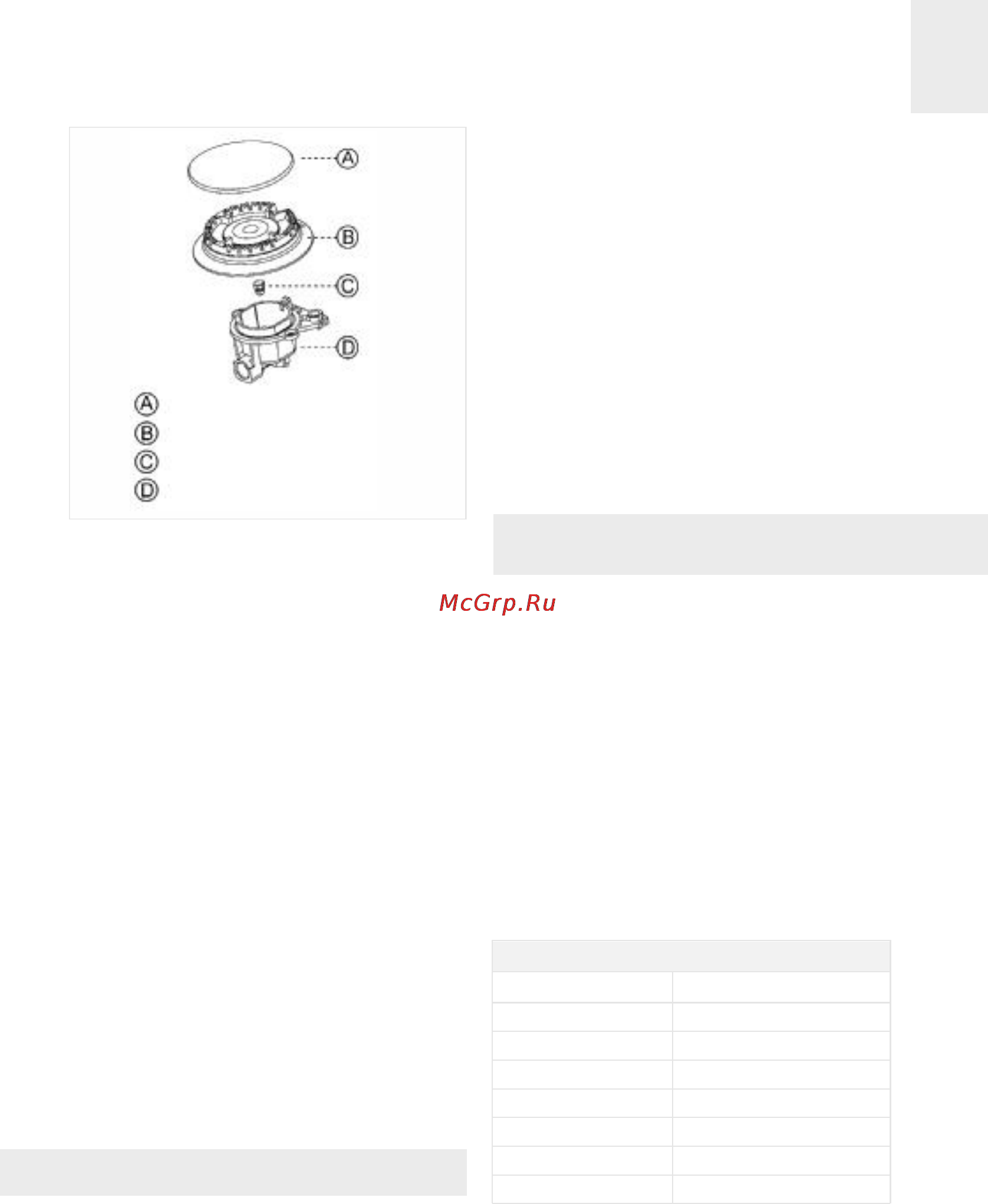

fig. 6
Diffusing cover
Diffusing crown
Injector
Injector holder
