GB
7
Important
INSTALLATION AND SETUP SHOULD
BE CARRIED OUT BY AN AUTHORISED
TECHNICIAN IN LINE WITH CURRENT
INSTALLATION STANDARDS.
Positioning the hobs
A gap with the dimensions shown in figure
1 will be cut into the worktop or stove.
The system for fixing the hob is intended
for use with kitchen units with a thickness
of 20, 30 or 40 mm.
In free-standing models, a shelf should be
placed inside the unit. The minimum dis-
tance between the lower part of the hob
and the upper part of the shelf should be
20 mm.
The hobs described in this manual can
only be installed with TEKA ovens.
The minimum distance between the surfa-
ce supporting the cooking pans and the
lower part of the kitchen unit or the hood
located above the hob should be 650 mm.
If the hood’s installation instructions
recommend that the gap is greater than
this, you should follow this advice.
The unit where the hob and oven will be
located will be suitably fixed.
When hobs are handled before
being installed, care should be taken in
case there is any protruding part or
sharp edge which could cause injury.
When installing units or applian-
ces above the hob, the hob should be
protected by a board so that the glass
cannot be damaged by accidental
blows or heavy weights.
If the glass ceramic breaks or
cracks, the hob should immediately be
disconnected from the electric current
in order to avoid the risk of electric
shock.
The glues used in manufactu-
ring the kitchen unit and in the adhesi-
ve on the decorative laminate of the
worktop surface should be made to
tolerate temperatures of up to 100ºC.
Installation

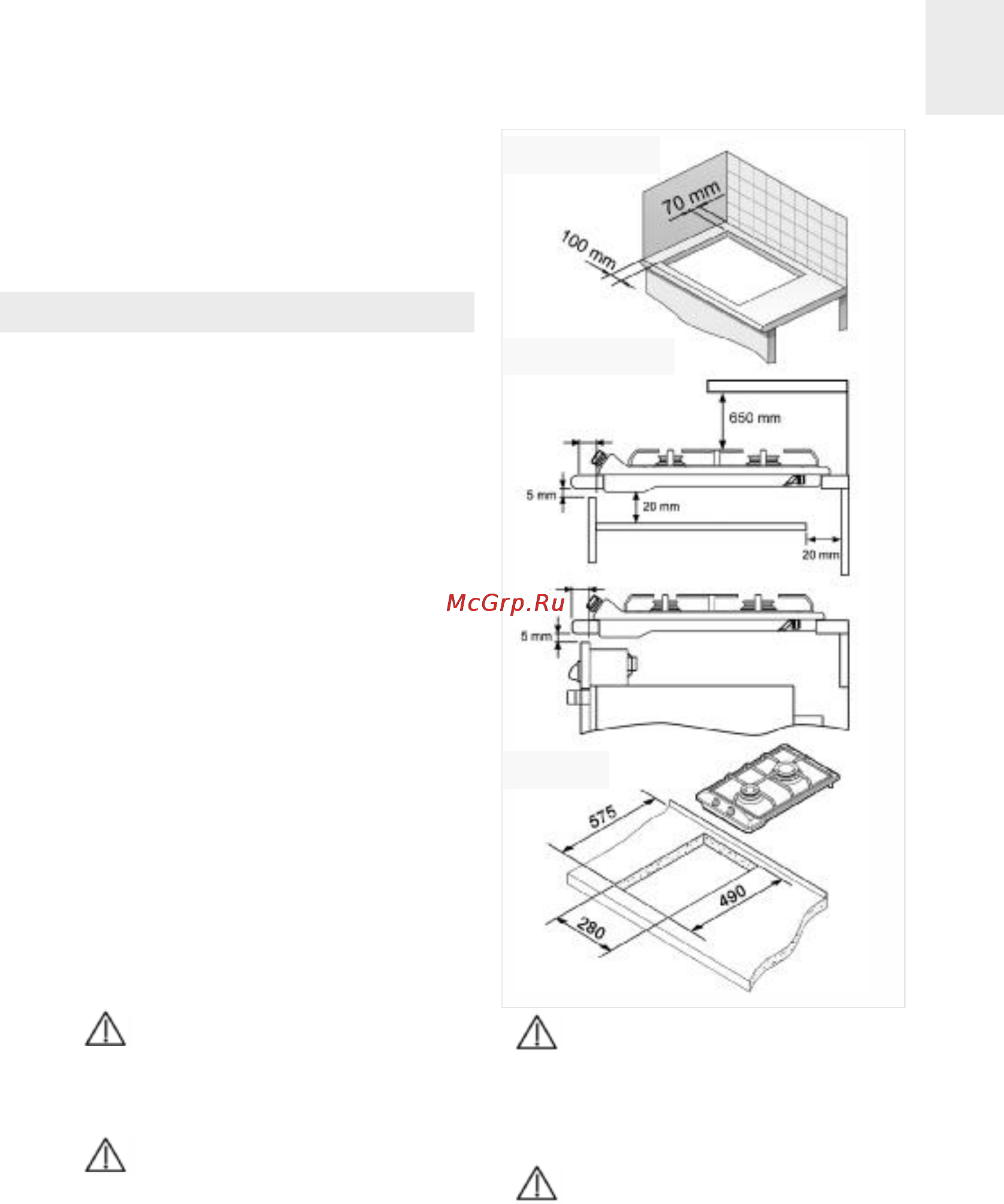

fig. 1
Minimum distances
to walls
Minimum ventilation
distances
Installation
space
40 mm minimum
40 mm minimum
OVEN
