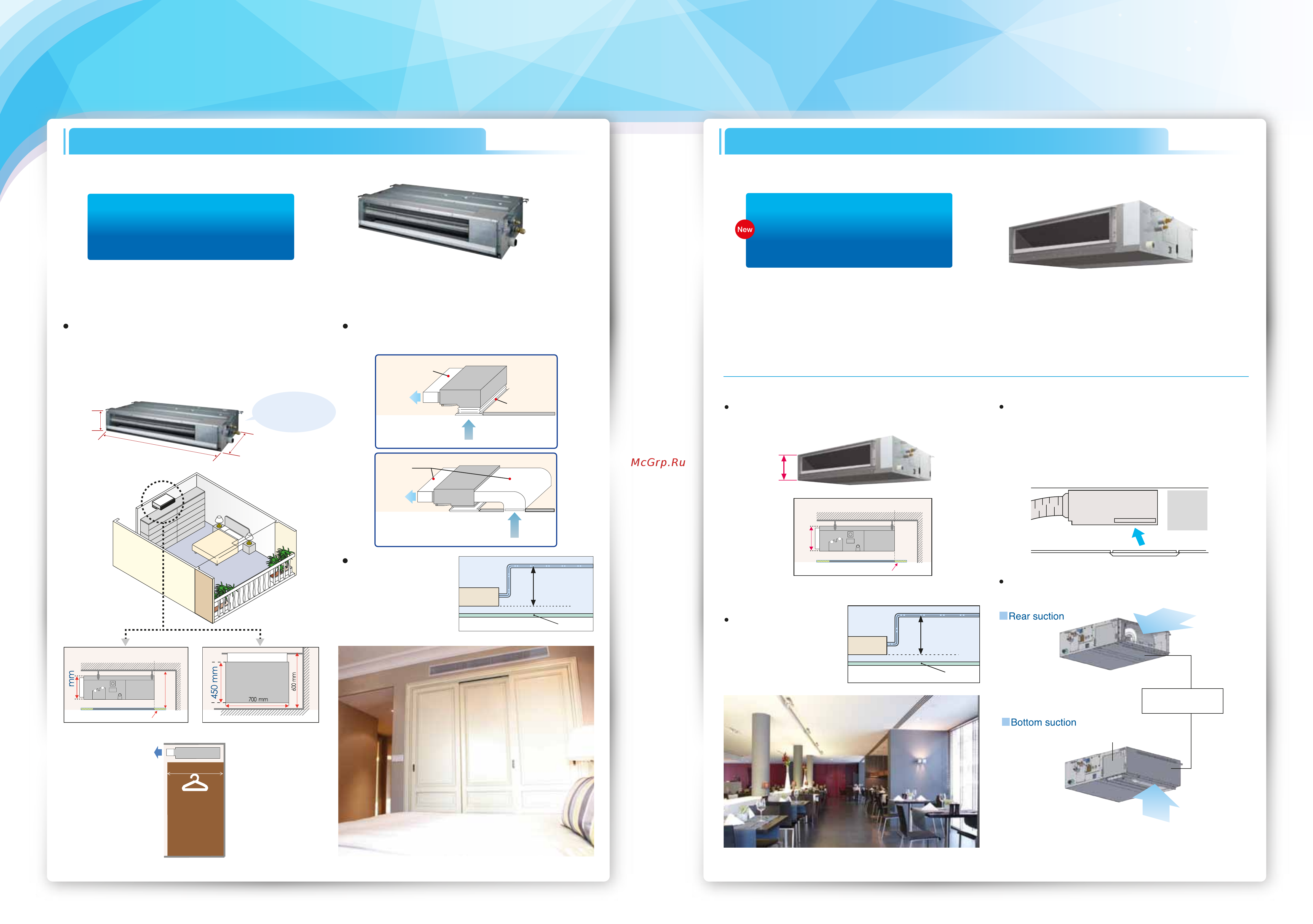

FXDQ20SP / FXDQ25SP
FXDQ32SP / FXDQ40SP
FXDQ50SP / FXDQ63SP
Slim and compact design for easy and flexible installation
It is available in two types – ceiling return and ordinary
duct to suit different installation conditions.
Duct
Air
discharge
Air suction
Duct
Canvas bellows
and air suction
panel
Air
discharge
Air suction
750 mm
Ceiling
Drain pump is equipped
as standard accessory
with 750 mm lift.
200 mm
Only 450 mm
Slim Ceiling Mounted Duct Type (Compact Series)
Indoor Unit Lineup
VRV Indoor Units
It comes with a slim and compact design with a height
of only 200 mm that requires as little as 240 mm in
height for the ceiling space between the drop-ceiling
and ceiling slab. The depth of the product is only 450
mm which is suitable to install in limited spaces.
700 mm*
*For FXDQ20-32SP models
600 mm
Closet
Standard
Closet size
Side view
Top view
240
mm
and
above
Ceiling
200
Great for
residential use
Middle Static Pressure Ceiling Mounted Duct Type
Middle external static pressure
and slim design allow flexible installations
FXSQ20P / FXSQ25P / FXSQ32P
FXSQ40P / FXSQ50P / FXSQ63P
FXSQ80P / FXSQ100P / FXSQ125P
FXSQ140P
Installation flexibility
850
mm
Ceiling
Air suction
Joist
Air conditioner
ceiling
Switch bottom plate
with air suction flange.
Shield plate for side plate* (Option)
Ceiling
245
mm
245
mm
*An optional shield plate for side plate is required if wiring connections and
maintenance of control box are needed from under the unit. This option is only
available for FXSQ20-125P models.
Slim design
Standard DC drain pump
Bottom suction possible
With a height of only 245 mm, installation is possible
even in buildings with narrow ceiling spaces.
Bottom suction is possible which facilitates installation
and maintenance. Wiring connections and
maintenance of control box can be done from under
the unit with an optional shield plate for side plate*,
extending the degree of freedom for installation in the
ceiling.
Air suction direction can be altered from rear to
bottom suction.
DC drain pump is
equipped as standard
accessory with
850 mm
lift.
