Biostar B360GT3S Версия 6.x [17/79] _rgbled1 5050_rgbled2 rgb led device 5050 smd header

Chapter 2: Hardware installaon | 17

B360GT3S

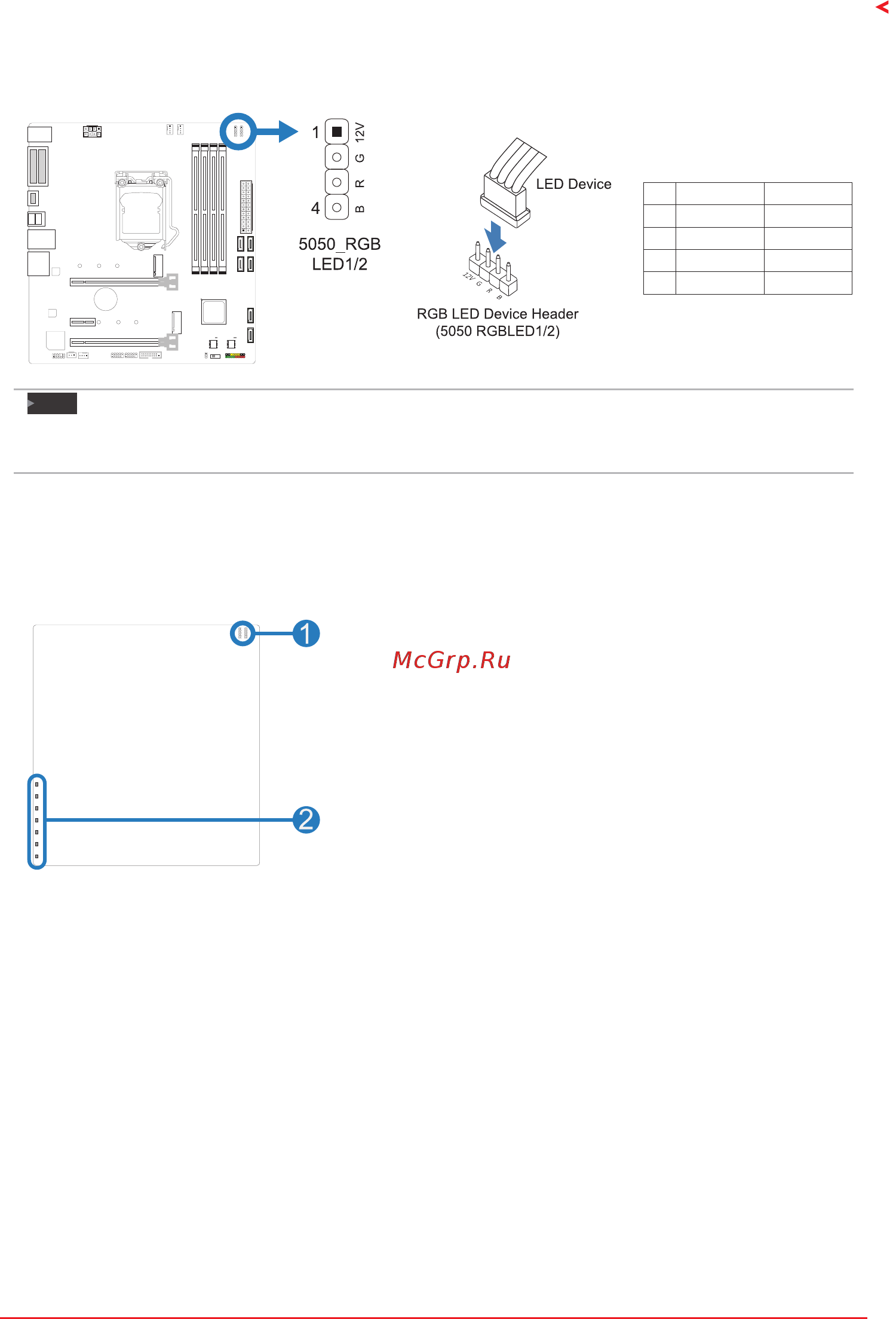

5050_RGBLED1/ 5050_RGBLED2: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

Pin Cable Color Assignment

1 12V (Black) VCC12

2 G (Green) LED_GREEN

3 R (Red) LED_RED

4 B (Blue) LED_BLUE

Note

 EnsureproperpinconnecngtoyourLEDdevice,wrongconneconmaydamageyourLEDdeviceor

motherboard.

2.8 LEDs

LEDs

Below LEDs are controlled by RACING GT EVO program. Please refer to Chapter 3.3 for more

detail soware seng.

1. RGB LED Header

2. on-board LEDs (x7)
