Biostar B360GT3S Версия 6.x [51/79] 2 散热片

第二章: 硬件安装 | 9

B360GT3S

2�2 散热片

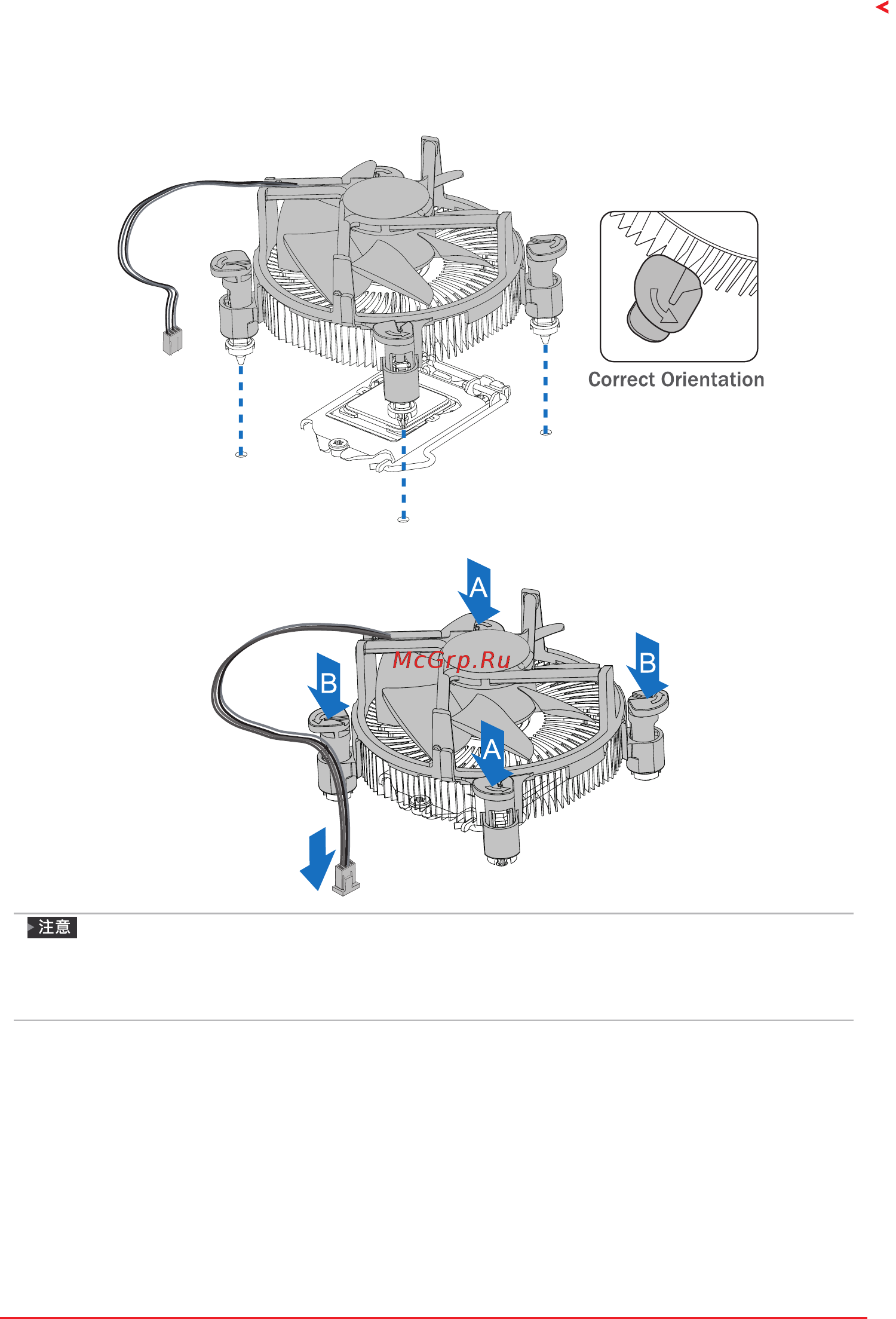

步骤1: 请将CPU风扇组件置于CPU顶部，确保四个钉钩对齐主板上的插孔，调整其方

位，使风扇电线与CPU风扇接口间距最近。确保钉钩插槽垂直指向散热片。

步骤2: 依次把对角2个钉钩同时向下按，以固定风扇，完成CPU安装。

如有必要，在安装散热风扇前请先涂抹散热膏于CPU表面。

请务必连接 C P U 风扇接口。

请参照CPU散热片的安装手册获取正确的安装信息。
