Biostar B360GT3S Версия 6.x [49/79] 第二章硬件安装

第二章: 硬件安装 | 7

B360GT3S

第二章: 硬件安装

2�1 中央处理器(CPU)

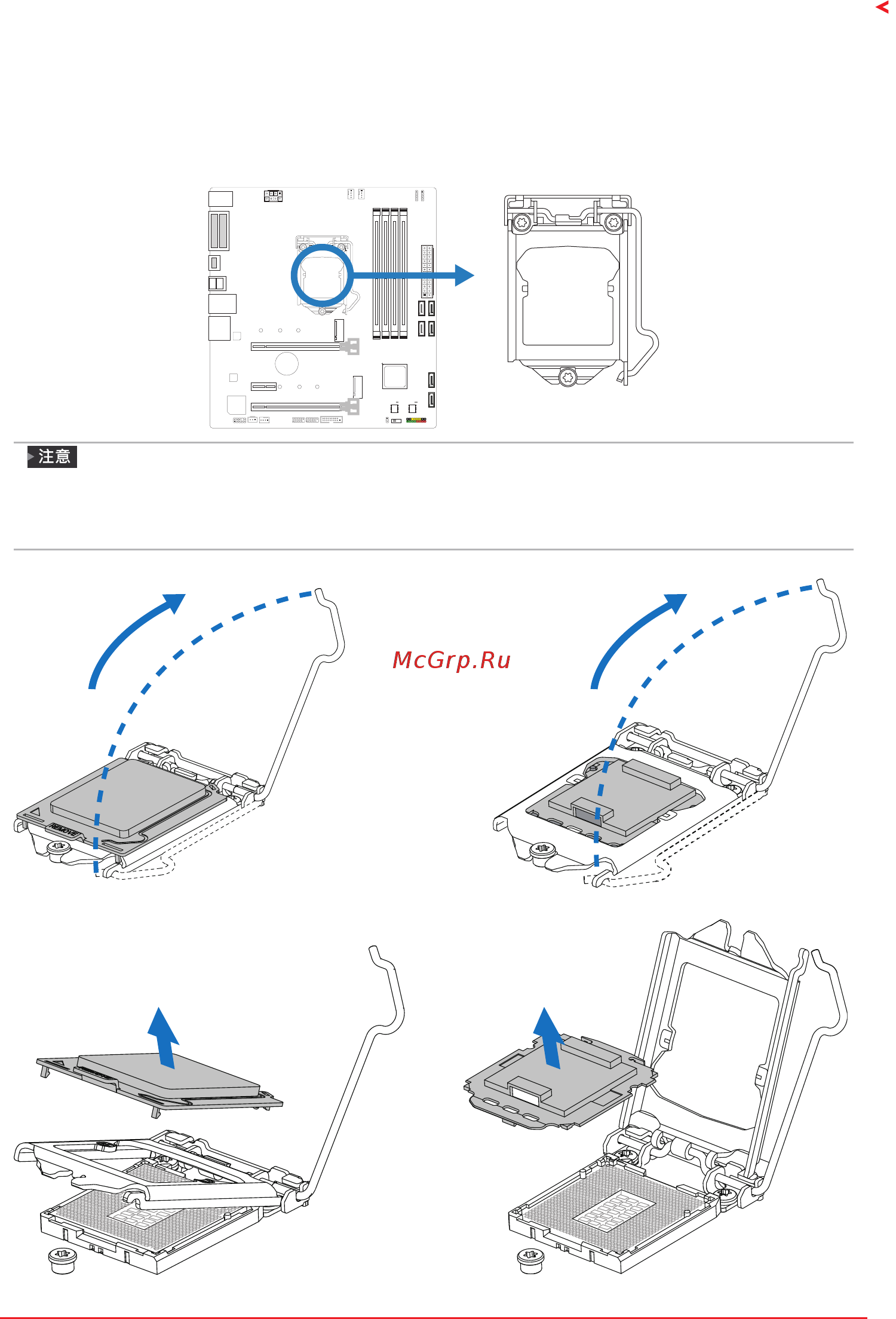

步骤1: 找到主板上的CPU插槽。

安装前请取掉针脚保护盖，并妥善保管以备后用。移开CPU后，请盖上保护盖以确保针脚不被损

坏。

主板可能配有两种不同的针脚保护盖，请参照以下指示取掉保护盖。

步骤2: 将拉杆从插槽移出并向上抬起

步骤3: 取掉针脚保护盖
