Chapter 3: UEFI BIOS & Soware | 29

B360GT3S

H/W Monitor

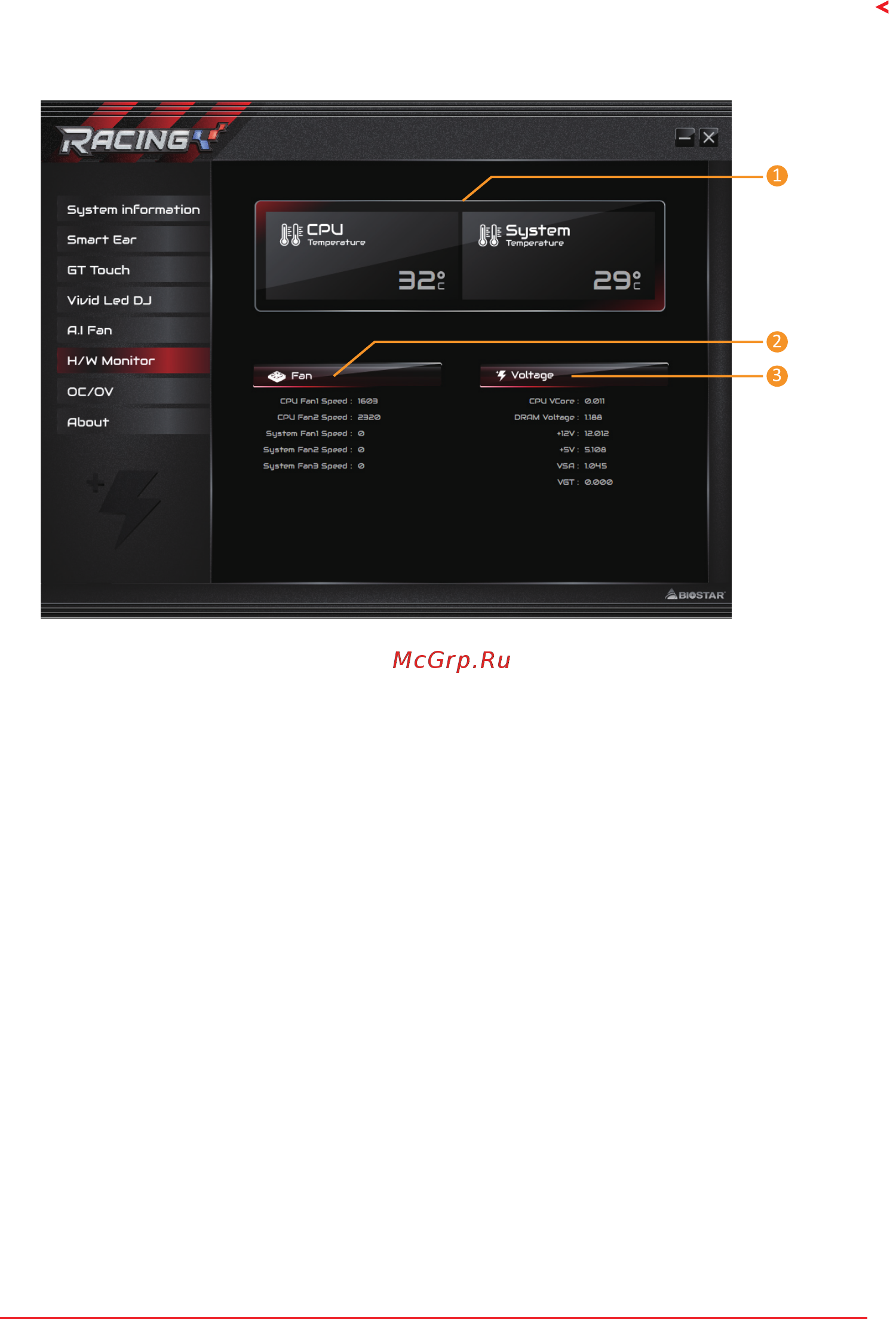

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature.

1. CPU Temperature/System Temperature: Shows the current CPU and system temperature.

2. Fan: Shows the current fans’ speed.

3. Voltage: Shows the current voltages of CPU and memory.
