第三章: UEFI BIOS和软件 | 25

B360GT3S

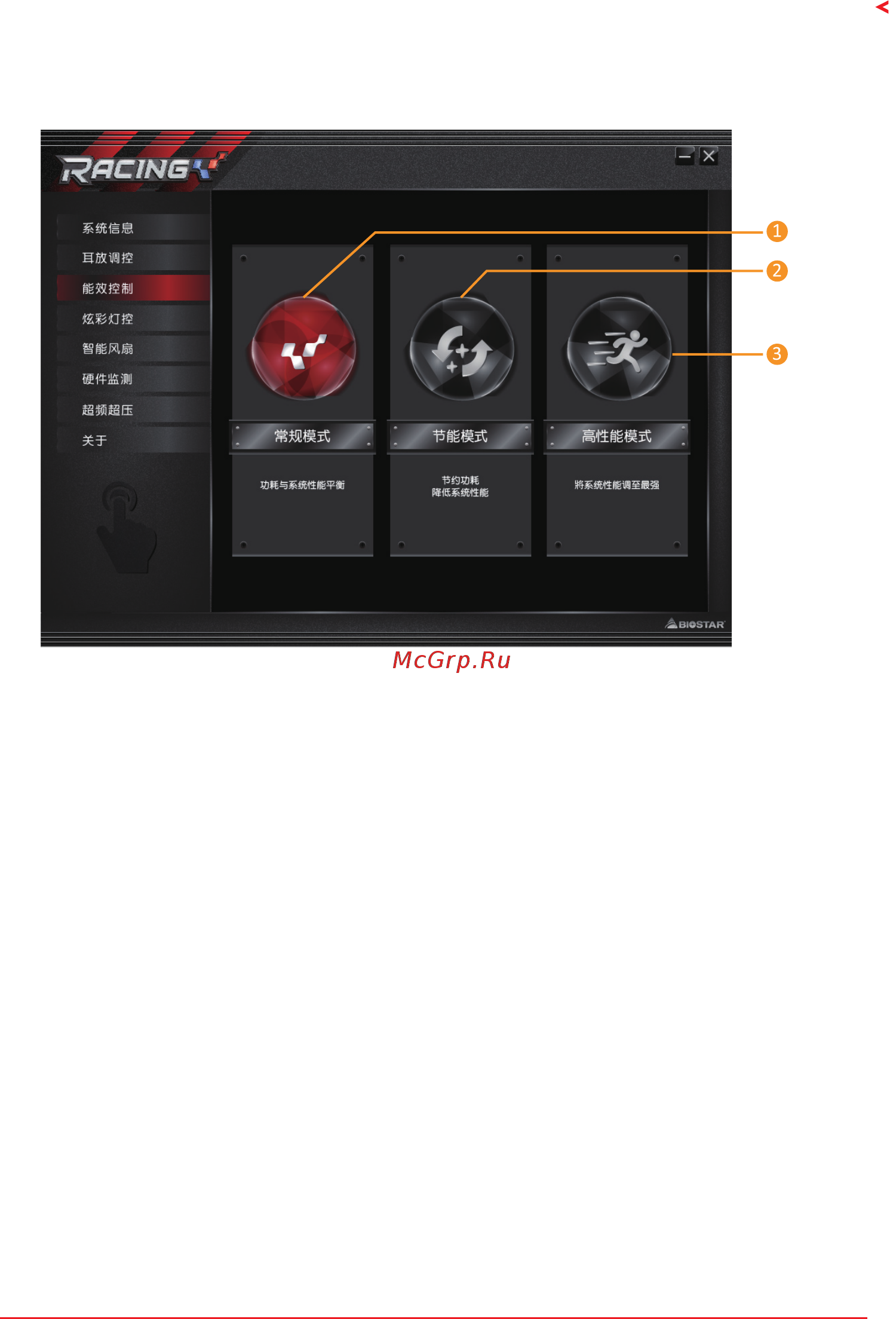

能效控制

GT Touch允许您在Windows环境中运行RACING GT EVO程序时调整正常，ECO和运

动模式。

1� 常规模式：自动平衡系统性能与电源消耗。

2� 节能模式：稍微地降低系统性能以节省能源。

3� 高性能模式：以最大限度地提高系统性能。
