28 | 第三章: UEFI BIOS和软件
智能风扇

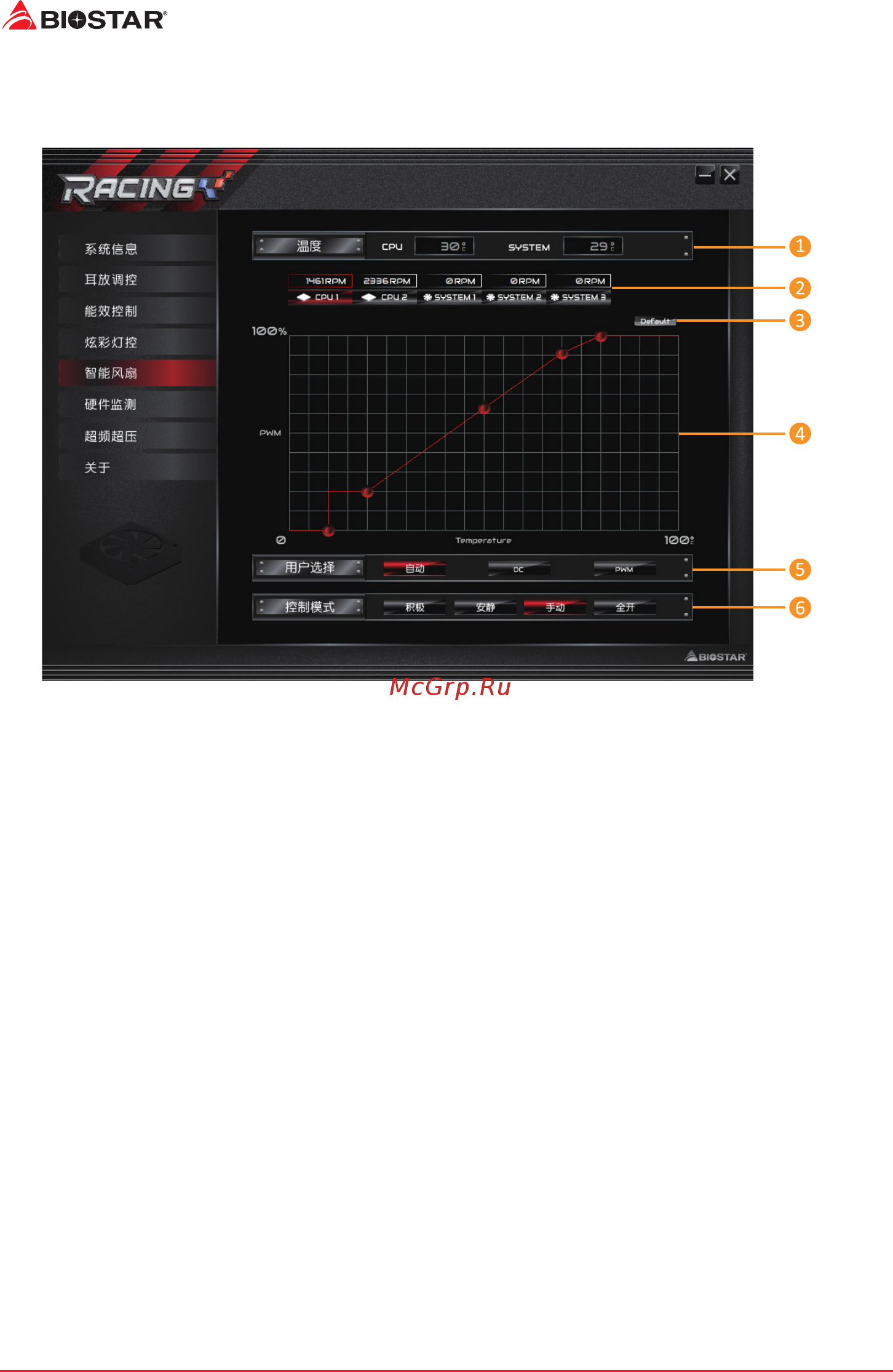

A.I FAN实用程序允许使用者具有更多调整风扇操作模式的智能性，并自动检测不同的
温度，使风扇以规定的速度运行，以获得最佳的冷却性能。
1� 温度：显示当前CPU和系统温度。
2� CPU1/2 RPM & SYSTEM1/2/3/4 RPM：
单击按钮提供您设置CPU风扇和系统风扇的状态值。
3� Default：恢复默认您单个项目的更改值。
4� PWM/Temperature Panel：
根据风扇PWM值对应CPU和系统温度来调节风扇转速。
»
此项目允许您根据自己的喜好进行调整。
5� 用户选择：设置风扇属性的选择操作。
• 自动：允 许 您 调 整 自 动 检 测 模 式。
• DC：允许您调整直流（直流）模式。
• PWM：允许您调 整 脉 宽 调 制（P W M）模 式。
6� 控制模式：允许您控制风扇的转动模式。
• 积极：启 用 进 取 模 式。
• 安静：启 用 安 静 模 式。
• 手动：启 用 手 动 模 式。
• 全开：启 用 全 开 模 式。
