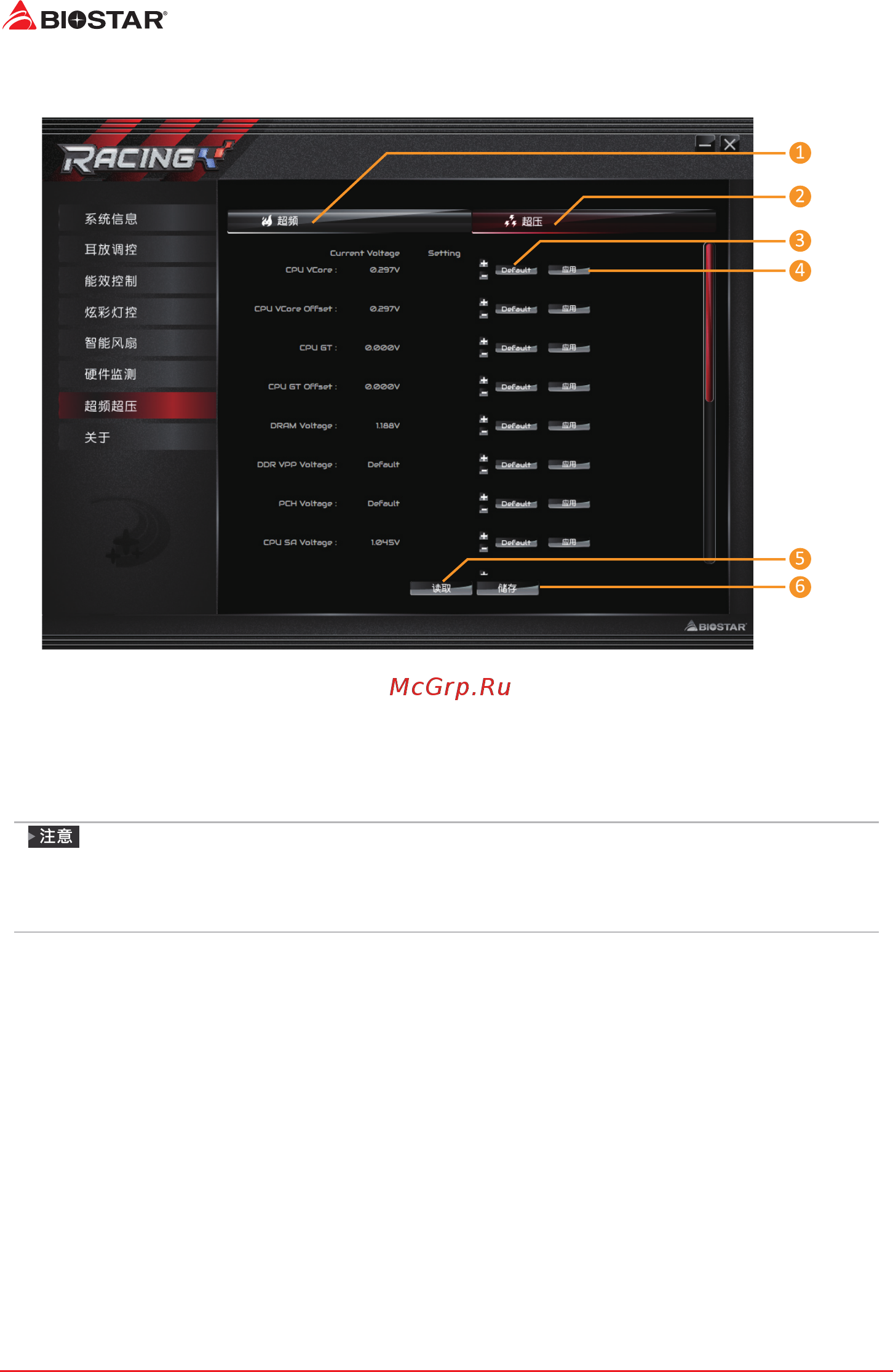

30 | 第三章: UEFI BIOS和软件
超频超压
允许您保存或加载超频的设定参数值，以及更改系统的频率与电压设置。
1� 超频：您可以调节超频参数值。
2� 超压：您可以调节电压参数值。
3� Default：所有设置都恢复为默认。
4� 应用：应用当前的参数值。
5� 读取：从文件载入参数值。
6� 储存：存储参数值以供将来使用。
»
并非所有类型的CPU性能都能超出理想的超频设置，因CPU类型而异。
»
超频是一个可选程序，而并非必须的; 不建议无经验用户使用。因此，由于超频导致的任何硬件
损坏我们不予负责。对超频性能我们也不做任何担保。
