8 | Chapter 2: Hardware installaon

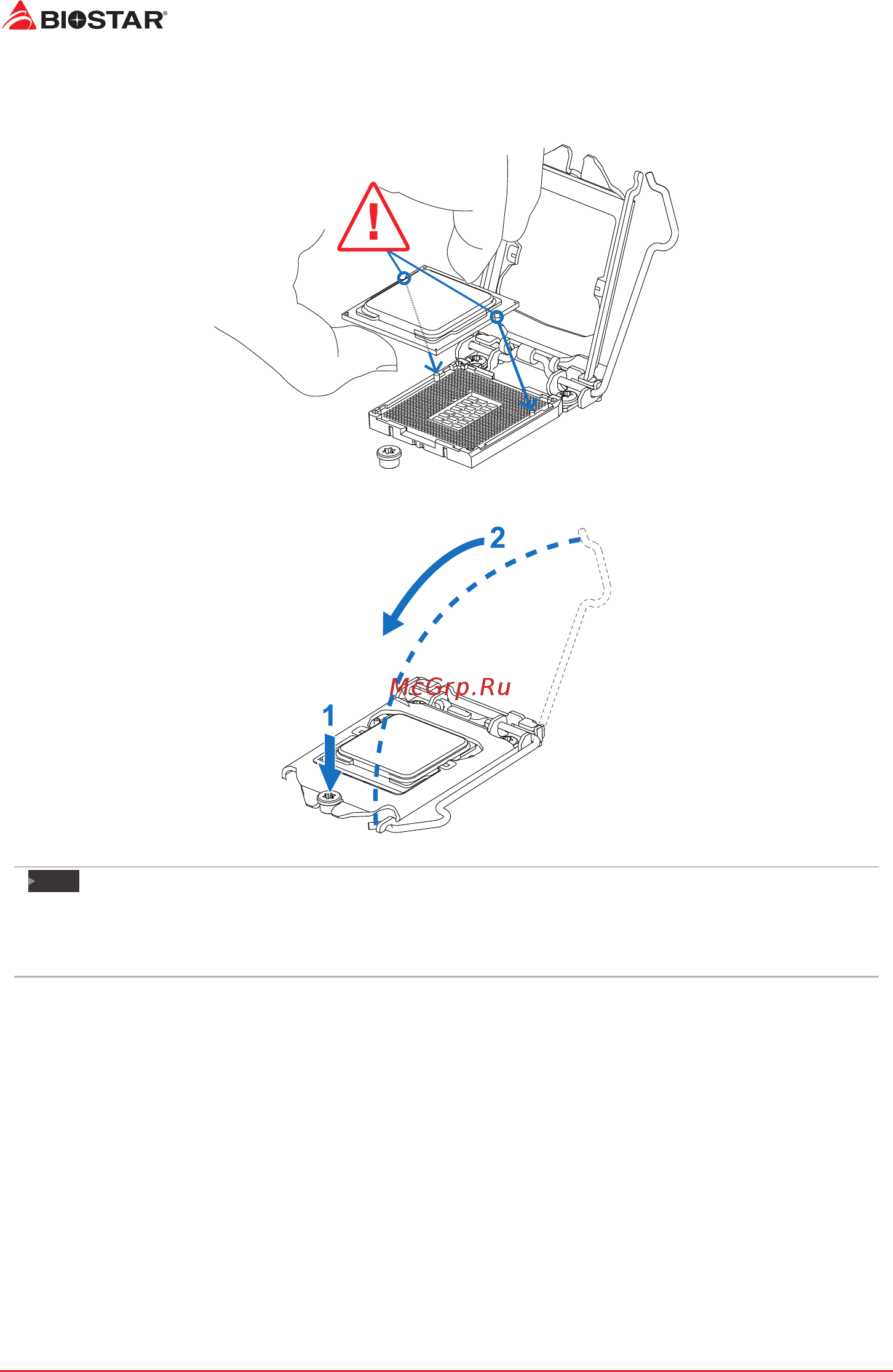

Step 4: Hold processor with your thumb and index ngers, oriented as shown. Align the

notches with the socket. Lower the processor straight down without lng or sliding the

processor in the socket.

Step 5: Hold the CPU down rmly, and then lower the lever to locked posion to complete the

installaon.

Note

 EnsurethatyouinstallthecorrectCPUdesignedforLGA1151socket.

 TheCPUtsonlyinonecorrectorientaon.DonotforcetheCPUintothesockettoprevent

damagingtheCPU.
