Chapter 2: Hardware installaon | 17

B450GT

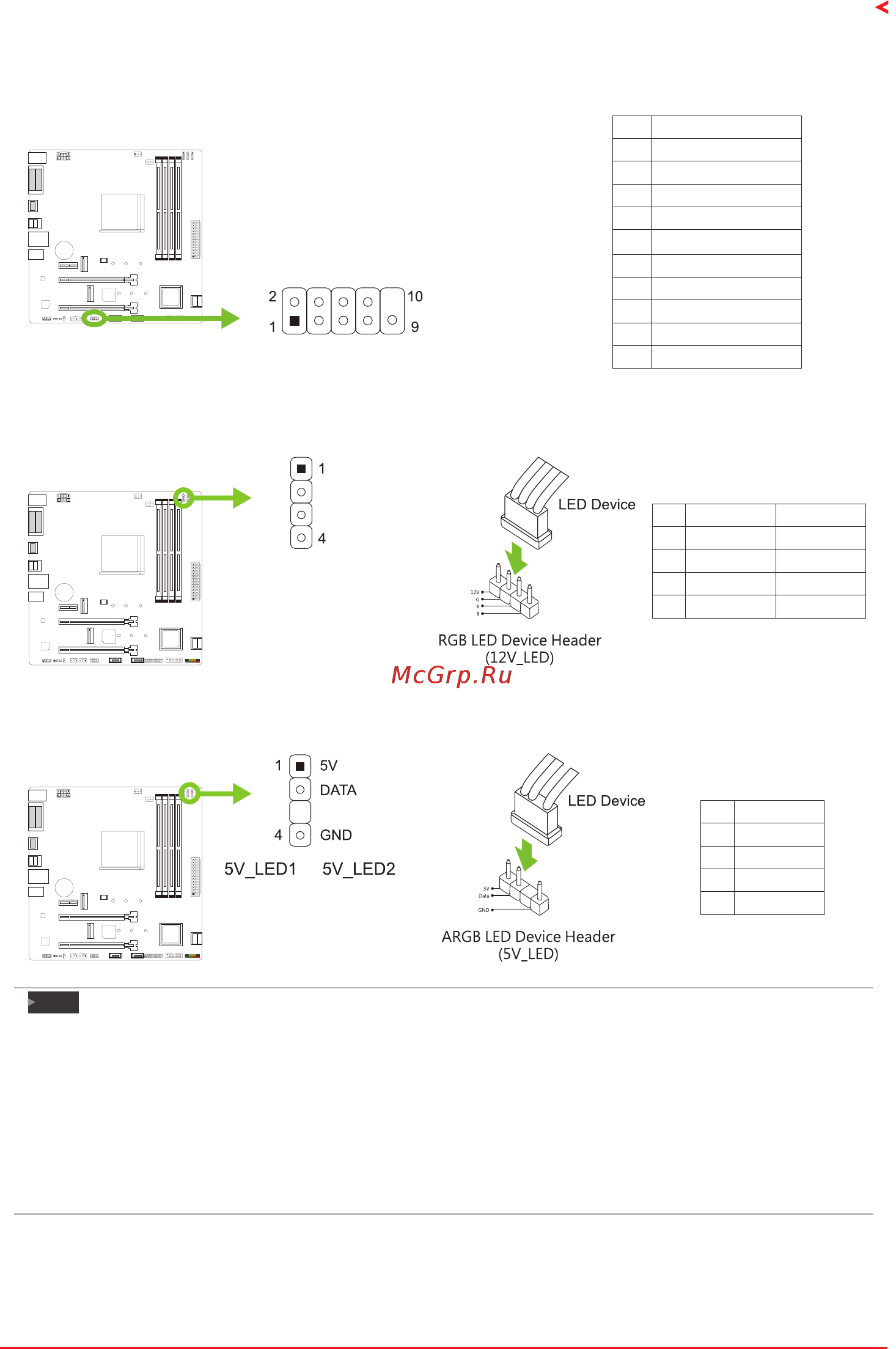

J_COM1: Serial Port Connector

The motherboard has a serial port header for connecng RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmied data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

12V_LED: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

Pin Cable Color Assignment

1 12V (Black) VCC12

2 G (Green) LED_GREEN

3 R (Red) LED_RED

4 B (Blue) LED_BLUE

5V_LED1/ 5V_LED2: Addressable RGB LED Device (WS2818B) Header

This header providers 5V power and Data control pins for ARGB LED Device (WS2818B).

Pin Assignment

1 VCC5

2 Data

3 N/A

4 GND

Note

 EnsureproperpinconnecngtoyourLEDdevice,wrongconneconmaydamageyourLEDdeviceor

motherboard.



The12V_LEDconnectorsupportsto5050RGBLEDstripswiththemaximumpowerrangof3A

(12V).



The5V_LEDconnectorsupportsupto300LEDsWS2818BindividuallyAddressableRGBLEDstrips

withthemaximumpowerrangof3A(5V).



PleaseusetheVividLEDDJsowaretocontroltheLEDs.Fordetailedsowaresenginformaon,

refertochapter3.3.
