SiE30-408 Collection and Playback of Data on Checker
Service Checker Type3 Application Edition 169

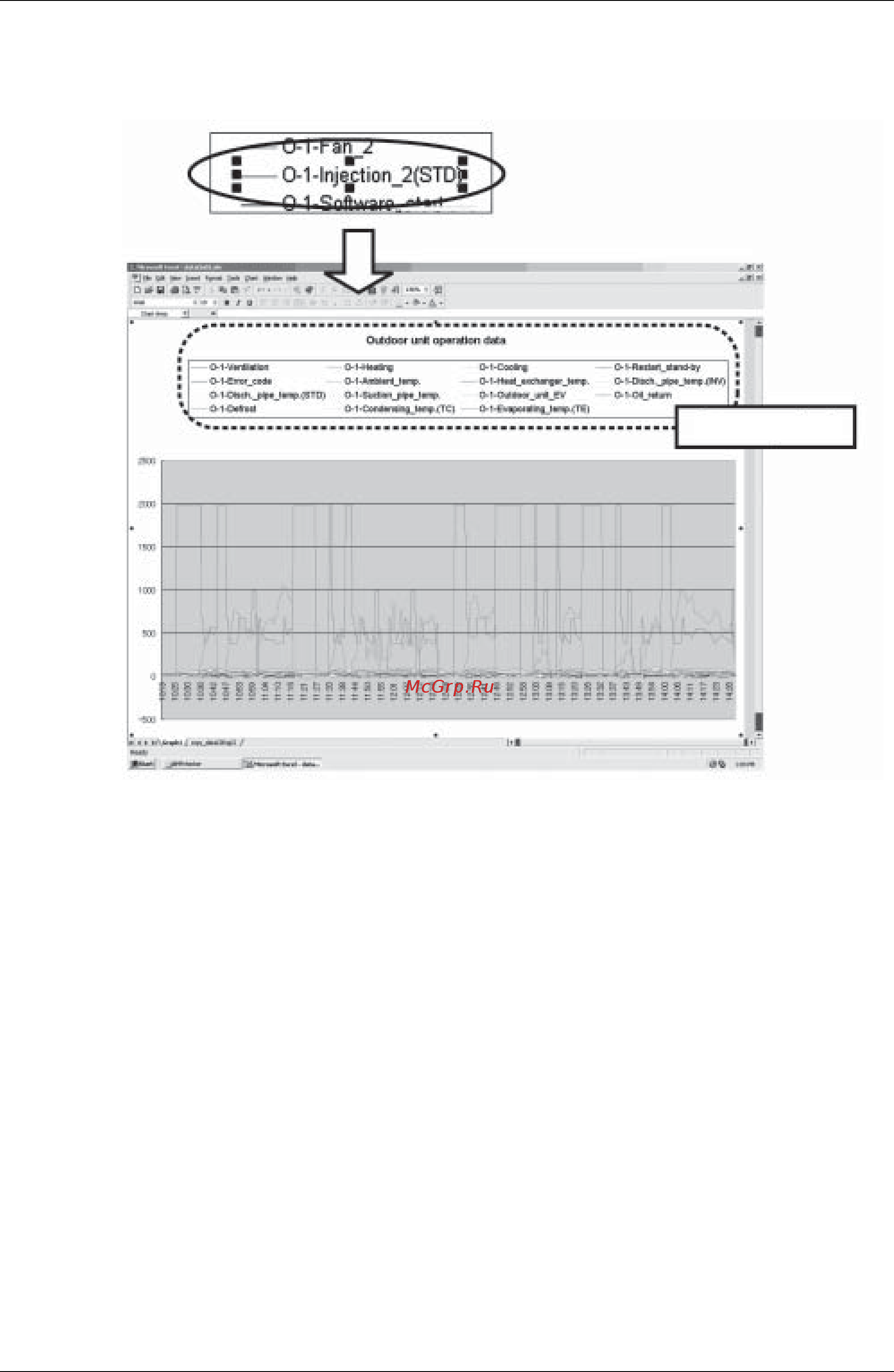

As shown in the window in previous page, all items contained in the Checker data are graphed.
Therefore, for unnecessary items, click on the "Legend" (shown in window below) or item lines
to delete them.
Items organized
